10/100M Ethernet 12-30VDC 2KV isolation
R$ 4.205,00
à vista no Pix ou Boleto
ou R$ 4.425,36 em 1x no cartão (via site)
ou R$ 4.671,21 no cartão em até 10x sem juros (apenas na loja física)
R$ 4.205,00
à vista no Pix ou Boleto
R$ 4.425,36
em 1x no cartão (via site)
R$ 4.671,21 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 4.205,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85444200
Condição de NPORT5232I: Novo em embalagem comercial
Garantia de NPORT5232I: 12 meses direto com a Net Computadores
| Power Requirements | |
| Power Consumption | NPort 5232I: 509.4 mA @ 12 V, 200 mA @ 24 V |
| Input Voltage | 12 to 48 VDC |
| Software | |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x |
| Configuration Options | Web Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
| Serial Communication Parameters | |
| Flow Control | RTS/CTS (RS-232 only), XON/XOFF |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Baudrate | 110 bps to 230.4 Kbps |
| Ethernet Interface | |
| Connector | 8-pin RJ45 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Number of Ports | 1 |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55C (32 to 131F) Wide Temp. Models: -40 to 75C (-40 to 167F) |
| Storage Temperature | -40 to 85C (-40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Physical Characteristics | |
| Weight | NPort 5232I: 380 g |
| Dimensions | NPort 5232I: Without ears: 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in) With ears: 90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in) |
| Housing | Metal, IP30 protection |
| Serial Interface | |
| Connector | NPort 5230/5232/5232I: Terminal Block (5 contacts per port) |
| Serial Standards | NPort 5232/5232I: RS-422/485 |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| Number of Ports | 2 |
| Serial Line Protection | 15 KV ESD protection for all signals 2 KV isolation protection (NPort 5232I/5232I-T) |
| Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| MTBF (mean time between failures) | NPort 5232I: 87,083 hrs |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| Serial Signals | |
| RS-485-4w | Tx , Tx-, Rx , Rx-, GND |
| RS-485-2w | Data , Data-, GND |
| RS-422 | Tx , Tx-, Rx , Rx-, GND |
| Standards and Certifications | |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| Safety | UL 60950-1, EN 60950-1 |
| EMS | EN 55024 |
| EMC | CE, FCC |
| Medical | EN 60601-1-2 Class B, EN 55011 (NPort 5210/5210-T only) |
| Marine | DNV |
Tags de NPORT5232I: NPORT5232I, NPORT 5232I, NPORT-5232I, servidor serial rs485, servidor serial rs422, device server rs422, device server rs485, moxa nport 5232i, device server 2 portas rs422, device server 2 portas rs485,, MOXA

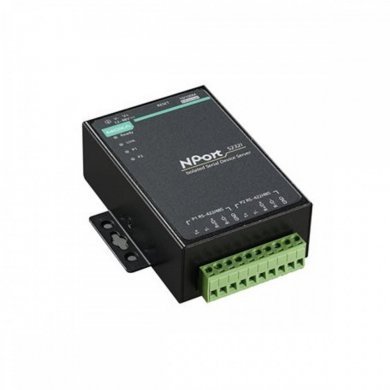

NPORT5232I Moxa Device Server NPort 5232I 2 portas RS422/485 10/100M Ethernet 12-30VDC 2KV isolation
