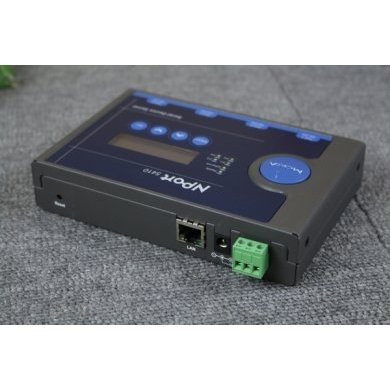

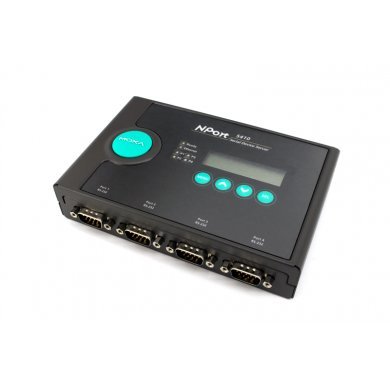

NPORT5410 Moxa Conversor 4 Portas RS232 RJ45 10/100 (não acompanha fonte PWR-12150-WPUSJP-S2)
Condição de NPORT5410:
Novo em embalagem comercial
Garantia de NPORT5410:
12 meses direto com a Net Computadores
Ethernet Interface
Number of Ports 1
Speed 10/100 Mbps, auto MDI/MDIX
Connector 8pin RJ45
Magnetic Isolation Protection 1.5 kV builtin
Serial Interface
Number of Ports 4
Serial Standards NPort 5410: RS232
NPort 5430/5430I: RS422/485 (software selectable)
NPort 5450/5450I/5450T/5450IT: RS232/422/485 (software selectable)
Connector NPort 5410/5450/5450I/5450T/5450IT: DB9 male
NPort 5430/5430I: Terminal block
Serial Line Protection 2 kV isolation protection (NPort 5430I/5450I/5450IT)
RS485 Data Direction Control ADDC (Automatic Data Direction Control)
Pull High/Low Resistor for RS485 1 k, 150 k
Terminator for RS485 120
Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS and DTR/DSR (RS232 only), XON/XOFF
Baudrate 50 bps to 921.6 kbps
Serial Signals
RS232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422 Tx , Tx, Rx , Rx, GND
RS4854w Tx , Tx, Rx , Rx, GND
RS4852w Data , Data, GND
Software
Network Protocols ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP
Configuration Options Web Console, Telnet Console, Windows Utility
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HPUX 11i, Mac OS X
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x
Mini Screen with Push Buttons (for standard temp. models)
LCD Panel Liquid Crystal Display on the case
Push Buttons Four push buttons for convenient onsite configuration
Physical Characteristics
Housing Metal
Weight 740 g (1.63 lb)
Dimensions Without mounting kit: 158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in)
With mounting kit: 181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in)
Environmental Limits
Operating Temperature Standard Models: 0 to 55C (32 to 131F)
Wide Temp. Models: 40 to 75C (40 to 167F)
Storage Temperature 40 to 75C (40 to 167F)
Ambient Relative Humidity 5 to 95% (noncondensing)
Power Requirements
Input Voltage 12 to 48 VDC
Input Current NPort 5410: 350 mA @ 12 VDC
NPort 5430: 320 mA @ 12 VDC
NPort 5430I: 530 mA @ 12 VDC
NPort 5450/5450T: 350 mA @ 12 VDC
NPort 5450I/5450IT: 554 mA @ 12 VDC
Standards and Certifications
Safety UL 609501
EMC EN 55022/24
EMI CISPR 22, FCC Part 15B Class A
EMS IEC 6100042 ESD: Contact: 4 kV; Air: 8 kV
IEC 6100043 RS: 80 MHz to 1 GHz: 3 V/m
IEC 6100044 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 6100045 Surge: Power: 1 kV; Signal: 1 kV
IEC 6100046 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 6100048 PFMF
IEC 61000411 DIPs
Marine DNV (standard temp. models only)
Medical EN 6060112 Class B, EN 55011 (NPort 5410/5450/5450I only)
Reliability
Alert Tools Builtin buzzer and RTC (realtime clock)
Automatic Reboot Trigger Builtin WDT (watchdog timer)
MTBF (mean time between failures)
Time NPort 5410: 310,331 hrs
NPort 5430/5430I: 265,650 hrs
NPort 5450/5450I: 206,903 hrs
Standard Telcordia (Bellcore) Standard TR/SR
