w/M12 Connector (Ethernet, power input)
R$ 15.699,00
à vista no Pix ou Boleto
ou R$ 16.525,26 em 1x no cartão (via site)
ou R$ 17.443,33 no cartão em até 10x sem juros (apenas na loja física)
R$ 15.699,00
à vista no Pix ou Boleto
R$ 16.525,26
em 1x no cartão (via site)
R$ 17.443,33 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 15.699,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85389010
Condição de NPORT5450AI-M12: Novo em embalagem comercial
Garantia de NPORT5450AI-M12: 12 meses direto com a Net Computadores
| - Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | M12 |
| - Serial Interface | |
| Number of Ports | 1/2/4 |
| Serial Standards | RS-232/422/485 |
| Connector | DB9 male |
| Serial Line Protection | 15 KV ESD protection for all signals |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| - Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate | 50 bps to 921.6 Kbps |
| - Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx , Tx-, Rx , Rx-, GND |
| RS-485-4w | Tx , Tx-, Rx , Rx-, GND |
| RS-485-2w | Data , Data-, GND |
| - Software | |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, LLDP |
| Configuration Options | Web Console (with new Quick Setup), Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64 |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac 10.3 |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x, 3.x |
| - Physical Characteristics | |
| Housing | Metal |
| Weight | 686 g |
| Dimensions | 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in) |
| - Environmental Limits | |
| Operating Temperature | Standard Models: -25 to 55C (-13 to 131F) Wide Temp. Models: -40 to 75C (-40 to 167F) (EN 50155 compliant) |
| Storage Temperature | -40 to 85C (-40 to 185F) (EN 50155 compliant) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| - Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | NPort 5150AI-M12: 310mA @12V NPort 5150AI-M12-CT: 310mA @12V NPort 5150AI-M12-T: 310mA @12V NPort 5250AI-M12: 360mA @12V NPort 5250AI-M12-CT: 360mA @12V NPort 5250AI-M12-T: 360mA @12V NPort 5450AI-M12: 440mA @12V NPort 5450AI-M12-CT: 44 |
| Connector | M12 |
| - Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 55024 |
| Rail Traffic | EN 50155, EN 50121-4 |
| Vibration | IEC 60068-2-6 |
| - Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) | NPort 5150AI-M12: 789,341 hrs NPort 5250AI-M12: 639,622 hrs NPort 5450AI-M12: 467,777 hrs |
| - Warranty |
Tags de NPORT5450AI-M12: NPort5450AI-M12, =NPORT5450AI-M12, MOXA

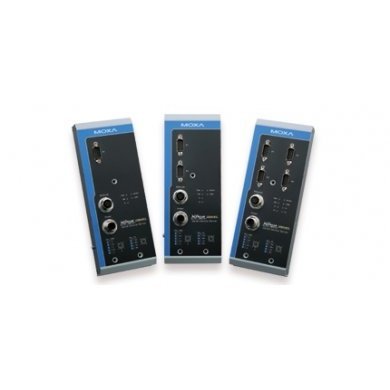

NPORT5450AI-M12 Moxa Industrial Device Servers 4 Portas RS232 w/M12 Connector (Ethernet, power input)
