Ethernet, RS-232/422/485, DB-9, 15KV ESD, 110V
R$ 10.753,00
à vista no Pix ou Boleto
ou R$ 11.318,26 em 1x no cartão (via site)
ou R$ 11.947,05 no cartão em até 10x sem juros (apenas na loja fÃsica)
R$ 10.753,00
à vista no Pix ou Boleto
R$ 11.318,26
em 1x no cartão (via site)
R$ 11.947,05 no cartão
em até 10x sem juros
(apenas na loja fÃsica)
R$ 10.753,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85389010
Condição de NPORT5450I: Novo em embalagem comercial
Garantia de NPORT5450I: 12 meses direto com a Net Computadores
| Power Requirements | |
| Power Consumption | NPort 5410: 350 mA @ 12 V, 190 mA @ 24 VÂ NPort 5430: 320 mA @ 12 V, 175 mA @ 24 VÂ NPort 5430I: 530 mA @ 12 V, 280 mA @ 24 VÂ NPort 5450/5450-T: 350 mA @ 12 V, 190 mA @ 24 VÂ NPort 5450I/5450I-T: 554 mA @ 12 V, 294 mA @ 24 V |
| Input Voltage | 12 to 48 VDC |
| Software | |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x |
| Configuration Options | Web Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
| Serial Communication Parameters | |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Baudrate | 50 bps to 921.6 Kbps |
| Ethernet Interface | |
| Connector | 8-pin RJ45 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Number of Ports | 1 |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55C (32 to 131F)Â Wide Temp. Models: -40 to 75C (-40 to 167F) |
| Storage Temperature | -40 to 75C (-40 to 167F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Physical Characteristics | |
| Weight | 740 g |
| Dimensions | Without mounting kit: 158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in)Â With mounting kit: 176 x 103 x 33 mm (6.93 x 4.06 x 1.30 in) |
| Housing | Metal, IP30 protection |
| Serial Interface | |
| Connector | NPort 5410/5450/5450I/5450-T/5450I-T: DB9 male NPort 5430/5430I: Terminal block |
| Serial Standards | NPort 5410: RS-232Â NPort 5430/5430I: RS-422/485 (software selectable)Â NPort 5450/5450I/5450-T/5450I-T: RS-232/422/485 (software selectable) |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| Number of Ports | 4 |
| Pull High/Low Resistor for RS-485 | 1 K, 150 K |
| Terminator for RS-485 | 120 |
| Serial Line Protection | 15 KV ESD protection for all signals 2 KV isolation protection (NPort 5430I/5450I/5450I-T)Â |
| Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| MTBF (mean time between failures) | NPort 5410: 205,153 hrs NPort 5430: 201,699 hrs NPort 5430I: 114,540 hrs NPort 5450/5450I: 206,903 hrs NPort 5450-T/5450I-T: 206,903 hrs |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| Mini Screen with Push Buttons (standard temp. models only) | |
| Push Buttons | Four push buttons for convenient on-site configuration |
| LCD Panel | Liquid Crystal Display on the case |
| Serial Signals | |
| RS-485-4w | Tx , Tx-, Rx , Rx-, GND |
| RS-485-2w | Data , Data-, GND |
| RS-422 | Tx , Tx-, Rx , Rx-, GND |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Standards and Certifications | |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| Safety | UL 60950-1, EN 60950-1 |
| EMS | EN 55024 |
| EMC | CE, FCC |
| Medical | EN 60601-1-2 Class B, EN 55011 |
| Marine | DNV (standard temp. models only) |
Tags de NPORT5450I: NPORT5450I, NPORT-5450I, NPORT 5450I, CONVERSOR MOXA, CONVERSOR RS232 ETHERNET,, NPORT5450I, MOXA

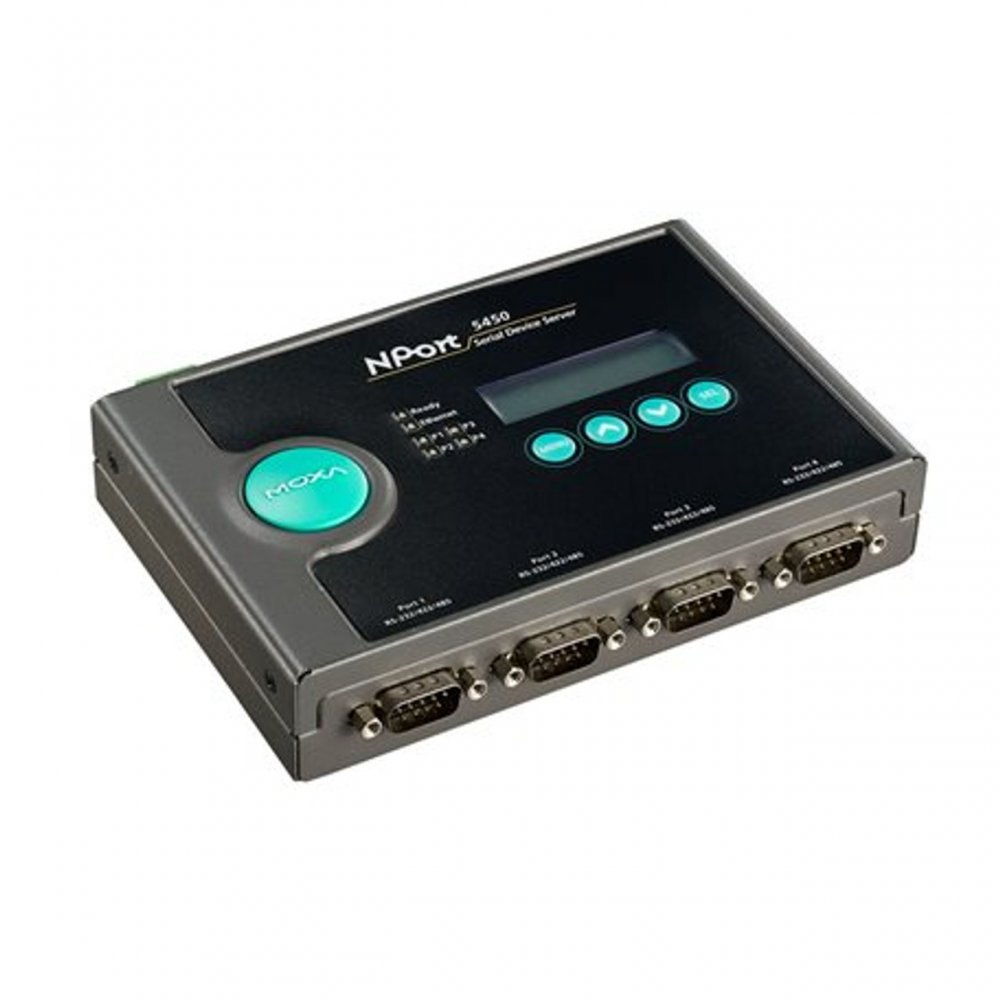

NPORT5450I Moxa Industrial Device Servers 4 Portas 10/100M Ethernet, RS-232/422/485, DB-9, 15KV ESD, 110V
Condição de NPORT5450I:
Novo em embalagem comercial
Garantia de NPORT5450I:
12 meses direto com a Net Computadores
| Power Requirements | |
| Power Consumption | NPort 5410: 350 mA @ 12 V, 190 mA @ 24 VÂ NPort 5430: 320 mA @ 12 V, 175 mA @ 24 VÂ NPort 5430I: 530 mA @ 12 V, 280 mA @ 24 VÂ NPort 5450/5450-T: 350 mA @ 12 V, 190 mA @ 24 VÂ NPort 5450I/5450I-T: 554 mA @ 12 V, 294 mA @ 24 V |
| Input Voltage | 12 to 48 VDC |
| Software | |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x |
| Configuration Options | Web Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
| Serial Communication Parameters | |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Baudrate | 50 bps to 921.6 Kbps |
| Ethernet Interface | |
| Connector | 8-pin RJ45 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Number of Ports | 1 |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55C (32 to 131F)Â Wide Temp. Models: -40 to 75C (-40 to 167F) |
| Storage Temperature | -40 to 75C (-40 to 167F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Physical Characteristics | |
| Weight | 740 g |
| Dimensions | Without mounting kit: 158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in)Â With mounting kit: 176 x 103 x 33 mm (6.93 x 4.06 x 1.30 in) |
| Housing | Metal, IP30 protection |
| Serial Interface | |
| Connector | NPort 5410/5450/5450I/5450-T/5450I-T: DB9 male NPort 5430/5430I: Terminal block |
| Serial Standards | NPort 5410: RS-232Â NPort 5430/5430I: RS-422/485 (software selectable)Â NPort 5450/5450I/5450-T/5450I-T: RS-232/422/485 (software selectable) |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| Number of Ports | 4 |
| Pull High/Low Resistor for RS-485 | 1 K, 150 K |
| Terminator for RS-485 | 120 |
| Serial Line Protection | 15 KV ESD protection for all signals 2 KV isolation protection (NPort 5430I/5450I/5450I-T)Â |
| Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| MTBF (mean time between failures) | NPort 5410: 205,153 hrs NPort 5430: 201,699 hrs NPort 5430I: 114,540 hrs NPort 5450/5450I: 206,903 hrs NPort 5450-T/5450I-T: 206,903 hrs |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| Mini Screen with Push Buttons (standard temp. models only) | |
| Push Buttons | Four push buttons for convenient on-site configuration |
| LCD Panel | Liquid Crystal Display on the case |
| Serial Signals | |
| RS-485-4w | Tx , Tx-, Rx , Rx-, GND |
| RS-485-2w | Data , Data-, GND |
| RS-422 | Tx , Tx-, Rx , Rx-, GND |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Standards and Certifications | |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| Safety | UL 60950-1, EN 60950-1 |
| EMS | EN 55024 |
| EMC | CE, FCC |
| Medical | EN 60601-1-2 Class B, EN 55011 |
| Marine | DNV (standard temp. models only) |
Tags de NPORT5450I: NPORT5450I, NPORT-5450I, NPORT 5450I, CONVERSOR MOXA, CONVERSOR RS232 ETHERNET,, NPORT5450I, MOXA
