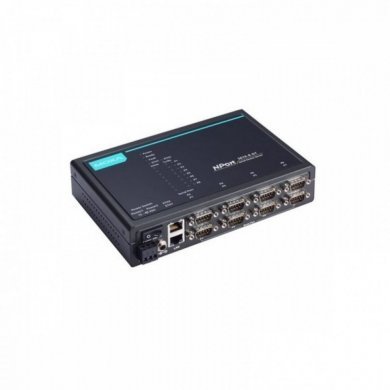

NPORT5610-8-DT Moxa Device Server 8 Portas DB9 RS-232/422/485

Name: NPORT5610-8-DT Moxa Device Server 8 Portas DB9 RS-232/422/485
Brand: MOXA
SKU: NPORT5610-8-DT
Price: 13001.00 BRL
Availability: InStock

12-48VDC power input

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 13.001,00

à vista no Pix ou Boleto

ou R$ 13.684,92 em 1x no cartão (via site)

ou R$ 14.445,19 no cartão em até 10x sem juros (apenas na loja física)

R$ 13.001,00

à vista no Pix ou Boleto

R$ 13.684,92
em 1x no cartão (via site)

R$ 14.445,19 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

R$ 13.001,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar NPORT5610-8-DT

NPORT5610-8-DT Moxa Device Server 8 Portas DB9 RS-232/422/485
12-48VDC power input

Condição de NPORT5610-8-DT: Novo em embalagem comercial

Garantia de NPORT5610-8-DT: 12 meses direto com a Net Computadores

Outros PNs para este item: NPORT-5610-8-DT

Features:
8 ports supporting RS-232, RS-422, or RS-485 operation
Compact desktop size
Auto-detecting 10/ 100 Mbps Ethernet
15 KV ESD surge protection for all serial signals
Easy IP address configuration with LCM (Liquid Crystal Module)
Configuration by web console, Telnet console, and more
TCP Server, TCP Client, UDP, and Real COM operation modes
Supports SNMP MIB-II for network management
Configurable voice alarm for exceptions
Specifications
LAN
Ethernet
2 10/100 Mbps, RJ45
Protection
Built-in 1.5 KV magnetic isolation

NPort 5610-8-DT Serial Interface
Interface
RJ45
No. of Ports
8
Port Type
RJ45 (8-pin) or DB9 (male)
Signals
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

NPort 5650-8-DT Serial Interface
Interface
RS-232/422/485
No. of Ports
8
Port Type
RJ45 (8-pin) or DB9 (male)
Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx , Tx-, Rx , Rx-, GND
RS-485 (2-wire): Data , Data-, GND
RS-485 (4-wire): Tx , Tx-, Rx , Rx-, GND
Serial line protection
15 KV ESD for all signals
Isolation
2 KV (NPort 5650I-8-DT)
RS-485 Data Direction
ADDC (Automatic Data Direction Control)

Power Line Protection
Burst
4 KV burst (EFT), EN6 000-4-4
Surge
2 KV surge, EN6 000-4-5

Advanced Built-in Features
HMI
LCM display with four push buttons
Buzzer
Yes
Real-Time Clock
Yes
Watch Dog Timer
Yes

Serial Communication Parameters
Parity
None, Even, Odd, Space, Mark
Data bits
5, 6, 7, 8
Stop bit
1, 1.5, 2
Flow control
RTS/CTS, XON/XOFF, DSR/DTR (only for RS-232)
Transmission Speed
50 bps to 921.6 Kbps

Software Features
Protocols
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, SMTP, SNTP, Rtelnet, ARP, RFC2217
Utilities
NPort Administrator for Windows 95/98/ME/NT/2000/XP/2003/Vista
OS Driver Support
Windows 95/98/ME/NT/2000//XP/2003/2003 x64/Vista/Vista x64 Real COM driver/Linux Real TTY driver/SCO Unix/SCO OpenServer 5/OpenServer 6/UnixWare7/UnixWare 2.1/SVR4.2/QNX 4.25/QNX 6/Solaris 10/FreeBSD 5/FreeBSD 6
Configuration
Web Browser, Telnet Console, or NPort Administrator

Power Requirements
Power Input
12 to 48 VDC
Power Consumption
NPort 5610-8-DT: 621 mA for 12V, 140 mA for 48V
NPort 5610-8-DT-J: 621 mA for 12V, 140 mA for 48V
NPort 5650-8-DT: 580 mA for 12V, 156 mA for 48V
NPort 5650I-8-DT: 1066 mA for 12V, 200 mA for 48V
NPort 5650-8-DT-J: 580 mA for 12V, 156 mA for 48V

Mechanical
Material
SECC sheet metal (0.8 mm)
Dimensions (W x H x D)
197 x 135.5 x 44 mm (without ears)
229 x 135.5 x 46 mm (with ears)
197 x 135.5 x 53 mm (with DIN-Rail kit on bottom panel)
Gross Weight
NPort 5610-8-DT: 1.76 kg
NPort 5610-8-DT-J: 1.17 kg
NPort 5650-8-DT: 1.77 kg
NPort 5650I-8-DT: 1.85 kg
NPort 5650-8-DT-J: 1.71 kg

Environmental
Operating Temperature
0 to 55C (32 to 131F), 5 to 95% RH
Storage Temperature
-20 to 70C (-4 to 158F), 5 to 95% RH

Regulatory Approvals
EMC
CE: EN55022 Class A/EN55024
FCC: FCC Part 15 Subpart B, Class A
