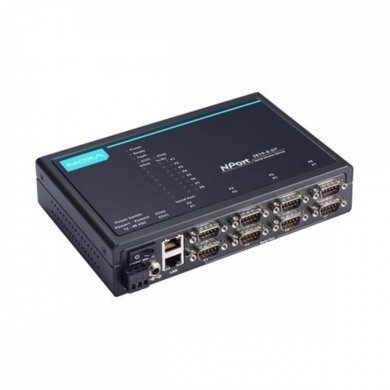

NPORT5610-8-DT-T Moxa Device Server 8 Portas DB9 RS-232/422/485

Name: NPORT5610-8-DT-T Moxa Device Server 8 Portas DB9 RS-232/422/485
Brand: MOXA
SKU: NPORT5610-8-DT-T
Price: 13988.00 BRL
Availability: InStock

12-48VDC -40 à 75°C

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 13.988,00

à vista no Pix ou Boleto

ou R$ 14.723,96 em 1x no cartão (via site)

ou R$ 15.541,96 no cartão em até 10x sem juros (apenas na loja física)

R$ 13.988,00

à vista no Pix ou Boleto

R$ 14.723,96
em 1x no cartão (via site)

R$ 15.541,96 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

R$ 13.988,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar NPORT5610-8-DT-T

NPORT5610-8-DT-T Moxa Device Server 8 Portas DB9 RS-232/422/485
12-48VDC -40 à 75°C

Condição de NPORT5610-8-DT-T: Novo em embalagem comercial

Garantia de NPORT5610-8-DT-T: 12 meses direto com a Net Computadores

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 2
Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features
Configuration Options: Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
Management: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Filter: IGMP v1/v2
MIB: RFC1213, RFC1317
Time Management: SNTP
Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers: SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Android API: Android 3.1.x and later
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded

Security Functions
Authentication: Local database
Encryption: HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Security Protocols: HTTPS (TLS 1.2) SNMPv3

Serial Interface
Connector: DB9 male
No. of Ports: 8
Serial Standards: RS-232
Baudrate: Supports standard baudrates (unitbps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485: 120 ohms
RS-485 Data Direction Control: ADDC (automatic data direction control)
Isolation: -I models: 2 kV
Surge: 0.5 kV
Console Port: RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)

Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx , Tx-, Rx , Rx-, GND
RS-485-4w: Tx , Tx-, Rx , Rx-, GND
RS-485-2w: Data , Data-, GND

Power Parameters
Input Current: 611 mA @ 12 VDC
No. of Power Inputs: 2
Input Voltage: 12 to 48 VDC
Reverse Polarity Protection: Supported
Source of Input Power: TB, Power input jack

Reliability
Automatic Reboot Trigger: Built-in WDT
Alert Tools: Built-in buzzer and RTC (real-time clock)

Physical Characteristics
Housing: Metal
Dimensions (with ears): 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)
Dimensions (without ears): 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)
Dimensions (with DIN-rail kit on bottom panel): 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
Weight: 1,320 g (2.91 lb)
Installation: Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

Environmental Limits
Operating Temperature: -40 to 75C (-40 to 167F)
Storage Temperature (package included): -40 to 75C (-40 to 167F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
