10/100 Ethernet, RS-232/422/485, DB-9M, 15KV ESD, Optical Isolation, 12-48VDC, 110V Power Supply
R$ 18.361,00
à vista no Pix ou Boleto
ou R$ 19.327,08 em 1x no cartão (via site)
ou R$ 20.400,81 no cartão em até 10x sem juros (apenas na loja física)
R$ 18.361,00
à vista no Pix ou Boleto
R$ 19.327,08
em 1x no cartão (via site)
R$ 20.400,81 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 18.361,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85369090
Condição de NPORT 5650I-8-DT: Novo em embalagem comercial
Garantia de NPORT 5650I-8-DT: 12 meses direto com a Net Computadores
| Power Requirements | |
| Power Consumption | NPort 5610-8-DT: 611 mA @ 12 V, 300 mA @ 24 V, 140 mA @ 48 V NPort 5610-8-DT-J: 611 mA @ 12 V, 300 mA @ 24 V, 140 mA @ 48 V NPort 5650-8-DT: 615 mA @ 12 V, 300 mA @ 24 V, 156 mA @ 48 V NPort 5650I-8-DT: 1066 mA @ 12 V, 510 mA @ 24 V, 200 mA @ 48 V NPort 5650-8-DT-J: 615 mA @ 12 V, 300 mA @ 24 V, 156 mA @ 48 V |
| Input Voltage | 12 to 48 VDC |
| Software | |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x |
| Configuration Options | Web Console, Telnet Console, Serial Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP, RFC2217 |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
| Serial Communication Parameters | |
| Flow Control | DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Baudrate | 50 bps to 921.6 Kbps |
| Ethernet Interface | |
| Connector | 8-pin RJ45 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Number of Ports | 2 (1 IP) |
| Environmental Limits | |
| Operating Temperature | 0 to 55C (32 to 131F) |
| Storage Temperature | -20 to 70C (-4 to 158F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Mini Screen with Push Buttons | |
| Push Buttons | Four push buttons for convenient on-site configuration |
| LCD Panel | Liquid Crystal Display on the case |
| Physical Characteristics | |
| Weight | NPort 5610-8-DT: 1760 g NPort 5610-8-DT-J: 1710 g NPort 5650-8-DT: 1770 g NPort 5650-8-DT-J: 1710 g NPort 5650I-8-DT: 1850 g |
| Dimensions | Without ears: 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in) With ears: 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in) With DIN-Rail kit on bottom panel: 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in) |
| Housing | Metal, IP30 protection |
| Serial Interface | |
| Connector | NPort 5610-8-DT/5650-8-DT/5650I-8-DT: DB9 male NPort 5610-8-DT-J/5650-8-DT-J: RJ45 (8 pins) |
| Serial Standards | NPort 5610-8-DT: RS-232 NPort 5650-8-DT: RS-232/422/485 |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| Number of Ports | 8 |
| Pull High/Low Resistor for RS-485 | 1 K, 150 K |
| Terminator for RS-485 | 120 |
| Serial Line Protection | 15 KV ESD protection for all signals 2 KV isolation protection (NPort 5650I-8-DT only) |
| Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| MTBF (mean time between failures) | 163,356 hrs |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| Serial Signals | |
| RS-485-4w | Tx , Tx-, Rx , Rx-, GND |
| RS-485-2w | Data , Data-, GND |
| RS-422 | Tx , Tx-, Rx , Rx-, GND |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Standards and Certifications | |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| Safety | UL 60950-1, EN 60950-1 |
| EMS | EN 55024 |
| EMC | CE, FCC |
Tags de NPORT 5650I-8-DT: NPORT 5650I-8-DT, NPORT5650I8DT, NPORT 5650I 8 DT, NPORT5650, Moxa NPORT5650, Conversor Serial Moxa, Conversor Moxa NPORT5650, NPORT-5650, NPORT 5650, Conversor Moxa Serial 8 PORTAS, Conversor Serial para RJ45, DB9, Conversor DB9, =NPORT 5650I-8-DT, MOXA

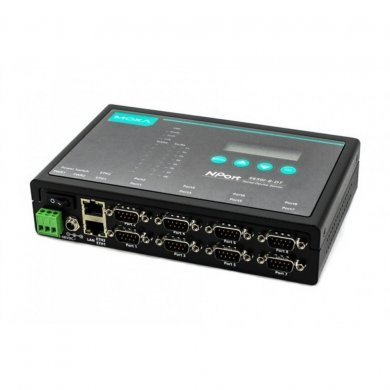

NPORT 5650I-8-DT Moxa Device Server 8 Portas 10/100 Ethernet, RS-232/422/485, DB-9M, 15KV ESD, Optical Isolation, 12-48VDC, 110V Power Supply
