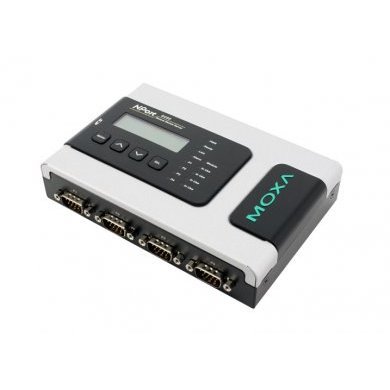

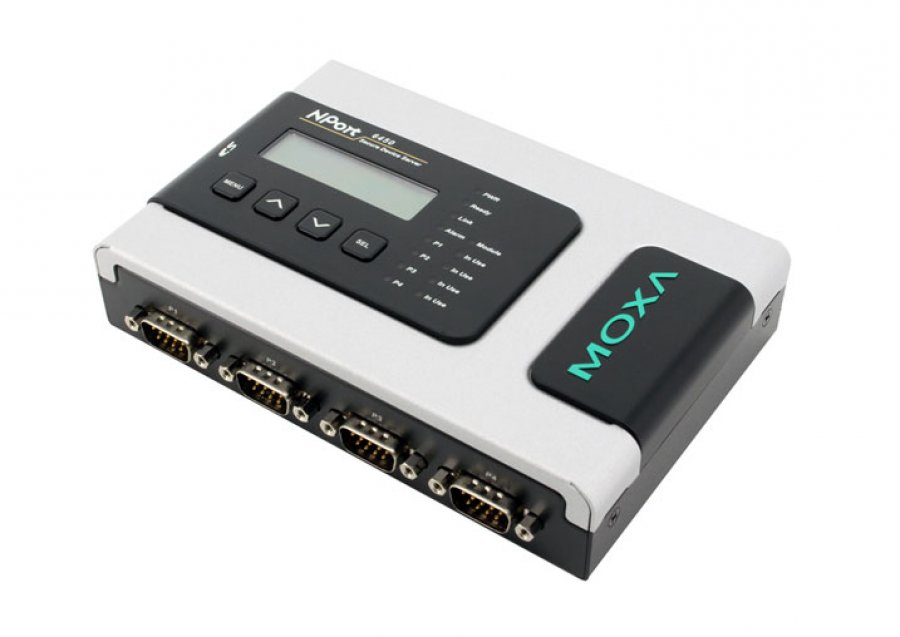

Secure Serial Device Server w/10/100, DB9M, 12-48V Power Input
R$ 9.196,00
à vista no Pix ou Boleto
ou R$ 9.679,54 em 1x no cartão (via site)
ou R$ 10.217,29 no cartão em até 10x sem juros (apenas na loja física)
R$ 9.196,00
à vista no Pix ou Boleto
R$ 9.679,54
em 1x no cartão (via site)
R$ 10.217,29 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 9.196,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 84733049
Condição de NPORT6450: Novo em embalagem comercial
Garantia de NPORT6450: 12 meses direto com a Net Computadores
| Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8pin RJ45 |
| Magnetic Isolation | 1.5 KV builtin |
| Optical Fiber Interface (with network module) | |
| Fiber Port | 100BaseFX, SC connector |
| Distance | Multimode: 0 to 4 km, 1310 nm (62.5/125 m, 500 MHz*km) Single mode: 0 to 40 km, 1310 nm (9/125 m, 3.5 PS/(nm*km)) |
| Min. TX Output | Multimode: 20 dBm Singlemode: 5 dBm |
| Max. TX Output | Multimode: 10 dBm Singlemode: 0 dBm |
| Sensitivity | Multimode: 34 to 30 dBm Singlemode: 36 to 32 dBm |
| Serial Interface | |
| Number of Ports | 4 |
| Serial Standards | RS232/422/485 |
| Connector | DB9 male |
| RS485 Data Direction Control | ADDC (Automatic Data Direction Control) |
| Serial Line Protection | 15 KV ESD protection for all signals |
| Console Port | Serial port 1 doubles as RS232 console port |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate | 50 bps to 921.6 Kbps (supports nonstandard baudrates) |
| Pull High/Low Resistor for RS485 | 1 K, 150 K |
| Serial Signals | |
| RS232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS422 | Tx , Tx, Rx , Rx, GND |
| RS4854w | Tx , Tx, Rx , Rx, GND |
| RS4852w | Data , Data, GND |
| Memory Expansion Slot | |
| Slot Type | SD socket (supports up to 2 GB) |
| Software | |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE |
| Security Protocols | DES, 3DES, AES, SSH, SSL |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Search Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x |
| Management | SNMP MIBII |
| IP Routing | Static, RIPI, RIPII |
| Operation Modes | |
| Standard | Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled |
| Secure | Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH |
| Applications | |
| Terminal Sessions | 8 sessions per port |
| Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Weight | 1020 g |
| Dimensions | Without ears: 158 x 103 x 35 mm (6.22 x 4.06 x 1.38 in) With ears: 181 x 103 x 35 mm (7.13 x 4.06 x 1.38 in) |
| Environmental Limits | |
| Operating Temperature | 0 to 55C (32 to 131F) |
| Storage Temperature | 40 to 75C (40 to 167F) |
| Ambient Relative Humidity | 5 to 95% (noncondensing) |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | 730 mA @ 12 V, 330 mA @ 24 V |
| Alarm Contact | Relay output with current carrying capacity of 1 A @ 24 VDC |
| Power Line Protection | 1 KV burst (EN6100044: EFT/B), 0.5 KV surge (EN6100045) |
| Standards and Certifications | |
| Safety | UL 609501, EN 609501 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 55024, EN 6100042 (ESD) Level 2/3, EN 6100043 (RS) Level 2, EN 6100044 (EFT) Level 2, EN 6100045 (Surge) Level 2, EN 6100046 (CS) Level 2, EN 6100048 Level 1, EN 61000411 |
| Freefall | IEC6826, IEC68234, IEC68232 |
| Vibration | IEC6826, IEC68234 |
| Green Product | RoHS, CRoHS, WEEE |
| Reliability | |
| Alert Tools | Builtin buzzer and RTC (realtime clock) |
| Automatic Reboot Trigger | Builtin WDT (watchdog timer) |
| MTBF (mean time between failures) | 120,354 hrs |
Tags de NPORT6450: NPORT6450, NPORT 6450, NPORT-6450, Moxa Device Server 4 Port RS232/422/485, Secure Serial Device Aerver w/10/100, DB9M, 12-48V Power Input, Servidor de dispositivo serial Moxa, Servidor de dispositivo Moxa, device server moxa, moxa RS232, moxa RS422, moxa RS485, moxa RS-232, moxa RS-422, moxa RS-485, moxa DB9M, 4 portas DB9, 4 portas seriais, =NPORT6450, MOXA
NPORT6450 Moxa Device Server 4 Port RS232/422/485 Secure Serial Device Server w/10/100, DB9M, 12-48V Power Input
