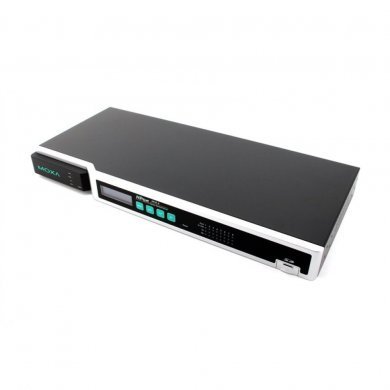

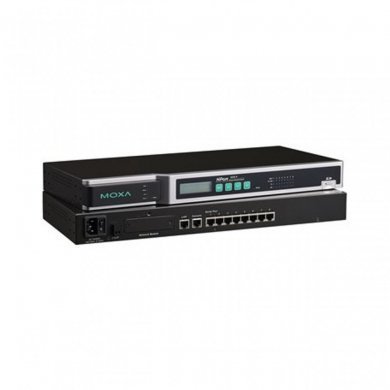

NPORT-6650-8 Moxa Device Server 8 Portas 10/100 Ethernet

Name: NPORT-6650-8 Moxa Device Server 8 Portas 10/100 Ethernet
Brand: MOXA
SKU: NPORT-6650-8
Price: 15616.00 BRL
Availability: InStock

RS-232/422/485, RJ-45 8pin, 100V or 240V

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 15.616,00

à vista no Pix ou Boleto

ou R$ 16.437,76 em 1x no cartão (via site)

ou R$ 17.350,97 no cartão em até 10x sem juros (apenas na loja física)

R$ 15.616,00

à vista no Pix ou Boleto

R$ 16.437,76
em 1x no cartão (via site)

R$ 17.350,97 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

R$ 15.616,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar NPORT-6650-8

NPORT-6650-8 Moxa Device Server 8 Portas 10/100 Ethernet
RS-232/422/485, RJ-45 8pin, 100V or 240V

Condição de NPORT-6650-8: Novo em embalagem comercial

Garantia de NPORT-6650-8: 12 meses direto com a Net Computadores

Outros PNs para este item: NPORT6650-8

Memory
SD Slot Up to 32 GB (SD 2.0 compatible)
Input/Output Interface
Alarm Contact Channels Resistive load: 1 A @ 24 VDC
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 1
Auto MDI/MDI-X connection
Magnetic Isolation Protection 1.5 kV (built-in)
Optical Fiber Read more
Ethernet Software Features
Configuration Options Web Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console, Windows Utility
Management ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API Android 3.1.x and later
MIB MIB-II
Time Management SNTP Client
Unicast Routing RIPV1/V2, Static Route
Authentication Local Account Accessibility, RADIUS, TACACS
Serial Interface
Connector 8-pin RJ45
No. of Ports 8
Serial Standards RS-232, RS-422, RS-485
Secure Operation Modes Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
Standard Operation Modes Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, DTR/DSR, XON/XOFF
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control ADDC (automatic data direction control)
Terminator for RS-485 120 ohms
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx , Tx-, Rx , Rx-, GND
RS-485-4w Tx , Tx-, Rx , Rx-, GND
RS-485-2w Data , Data-, GND
Power Parameters
Input Current 140 mA @ 100 VAC
Input Voltage 100 to 240 VAC, 47 to 63 Hz
Reliability
Automatic Reboot Trigger Built-in WDT
Alert Tools Built-in buzzer and RTC (real-time clock)
Physical Characteristics
Housing Metal
Dimensions (with ears) 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)
Dimensions (without ears) 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
Weight 3460 g (7.63 lb)
Interactive Interface LCD panel display
Push buttons for configuration
Installation Rack mounting
Environmental Limits
Operating Temperature 0 to 55C (32 to 131F)
Storage Temperature (package included) -40 to 75C (-40 to 167F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
Safety UL 60950-1
Traffic Control NEMA TS2
Vibration IEC 60068-2-6
Freefall IEC 60068-2-34
Declaration
Green Product RoHS, CRoHS, WEEE
MTBF
Time 636,600 hrs
Standards Telcordia (Bellcore) Standard
