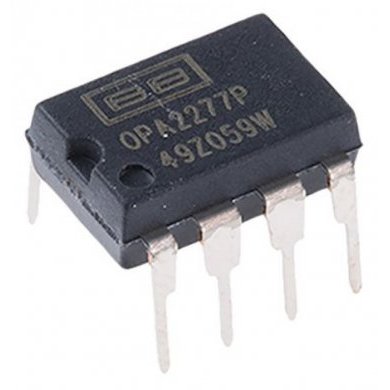

OPA2277P 2ch High Precision Operational Amplifiers PDIP-8

Name: OPA2277P 2ch High Precision Operational Amplifiers PDIP-8
Brand: Texas Instruments
SKU: OPA2277P
Price: 35.00 BRL
Availability: InStock

High Precision Operational Amplifiers

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 35,00

à vista no Pix ou Boleto

ou R$ 36,63 em 1x no cartão (via site)

ou R$ 38,66 no cartão em até 10x sem juros (apenas na loja física)

R$ 35,00

à vista no Pix ou Boleto

R$ 36,63
em 1x no cartão (via site)

R$ 38,66 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 35,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Cotação PJ mais de uma unidade

Indicar OPA2277P

OPA2277P 2ch High Precision Operational Amplifiers PDIP-8
High Precision Operational Amplifiers

Condição de OPA2277P: Novo em embalagem comercial

Garantia de OPA2277P: 3 meses direto com a Net Computadores

Outros PNs para este item: OPA277

The OPA2277P is a high precision Operational Amplifier for use with precision integrators. It offers improved noise, wider output voltage swing and is twice as fast with half the quiescent current. Features include ultralow offset voltage and drift, low bias current, high common-mode rejection and high power supply rejection. Dual version has identical specifications, for maximum design flexibility. High performance is maintained as the amplifiers swing to their specified limits. Because the initial offset voltage (±20µV maximum) is so low, user adjustment is usually not required.

OPA277 operational amplifier is easy to use and free from phase inversion and the overload problems found in some other operational amplifier. It is stable in unity gain and provides excellent dynamic behaviour over a wide range of load conditions. Dual version features completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded.

10µV Ultralow offset voltage
±0.1µV/°C Ultralow drift
134dB High open-loop gain
140dB High common-mode rejection
130dB High power supply rejection
1nA Maximum low bias current
800µA/amplifier Low quiescent current
Green product and no Sb/Br

Product Category:	Precision Amplifiers
Manufacturer:	Texas Instruments
RoHS:	Details
Series:	OPA2277
Number of Channels:	2 Channel
GBP - Gain Bandwidth Product:	1 MHz
SR - Slew Rate:	0.8 V/us
CMRR - Common Mode Rejection Ratio:	140 dB
Ib - Input Bias Current:	1 nA
Vos - Input Offset Voltage:	25 uV
en - Input Voltage Noise Density:	12 nV/sqrt Hz
Operating Supply Current:	790 uA
Maximum Operating Temperature:	85 C
Minimum Operating Temperature:	- 40 C
Shutdown:	No Shutdown
Mounting Style:	Through Hole
Package / Case:	PDIP-8

Amplifier Type:	Low Offset Amplifier
Brand:	Texas Instruments
Dual Supply Voltage:	/- 3 V, /- 5 V, /- 9 V
Height:	4.57 mm
In - Input Noise Current Density:	0.2 pA/sqrt Hz
Length:	9.81 mm
Maximum Dual Supply Voltage:	/- 18 V
Minimum Dual Supply Voltage:	/- 2 V
Operating Supply Voltage:	/- 2 V to /- 18 V
Product:	Precision Amplifiers
PSRR - Power Supply Rejection Ratio:	130.46 dB

Supply Type:	Dual
Technology:	Bipolar
Vcm - Common Mode Voltage:	Negative Rail 2 V to Positive Rail - 2 V
Voltage Gain dB:	140 dB
Width:	6.35 mm

Maiores detalhes de OPA2277P no site do fabricante:
https://www.ti.com/lit/ds/symlink/opa277.pdf?ts=1644234108403&ref_url=https%253A

Tags de OPA2277P: OPA277, OPA2277P, 595-OPA2277P, OPA2277P-ND, 8-PDIP, Texas Instruments, amplificador operacional dual canal, Texas Instruments
