P225 VP225 Ci controlador de USB-C DFN-10

P225 VP225 Ci controlador de USB-C DFN-10

Condição de P225:
Novo em embalagem comercial

Garantia  de  P225:
7 dias troca. Sem garantia após soldado

Outros PNs para este componente:     VP225

• Compliant with USB Type-C Specification R1.1
• Detect the attachment and detachment of Type-C port
• Provide Type-C cable orientation identification
• Provide the selection of VBUS power capability setting
• Provide the control signal for VBUS
• Provide VCONN application with maximum 1.5W

• Integrate VCONN MOSFET power switch
• Thermal and Short-Circuit protection for VCONN
• Under-Voltage Lock Out protection
• Ambient operating temperature: -40°C to 85°C

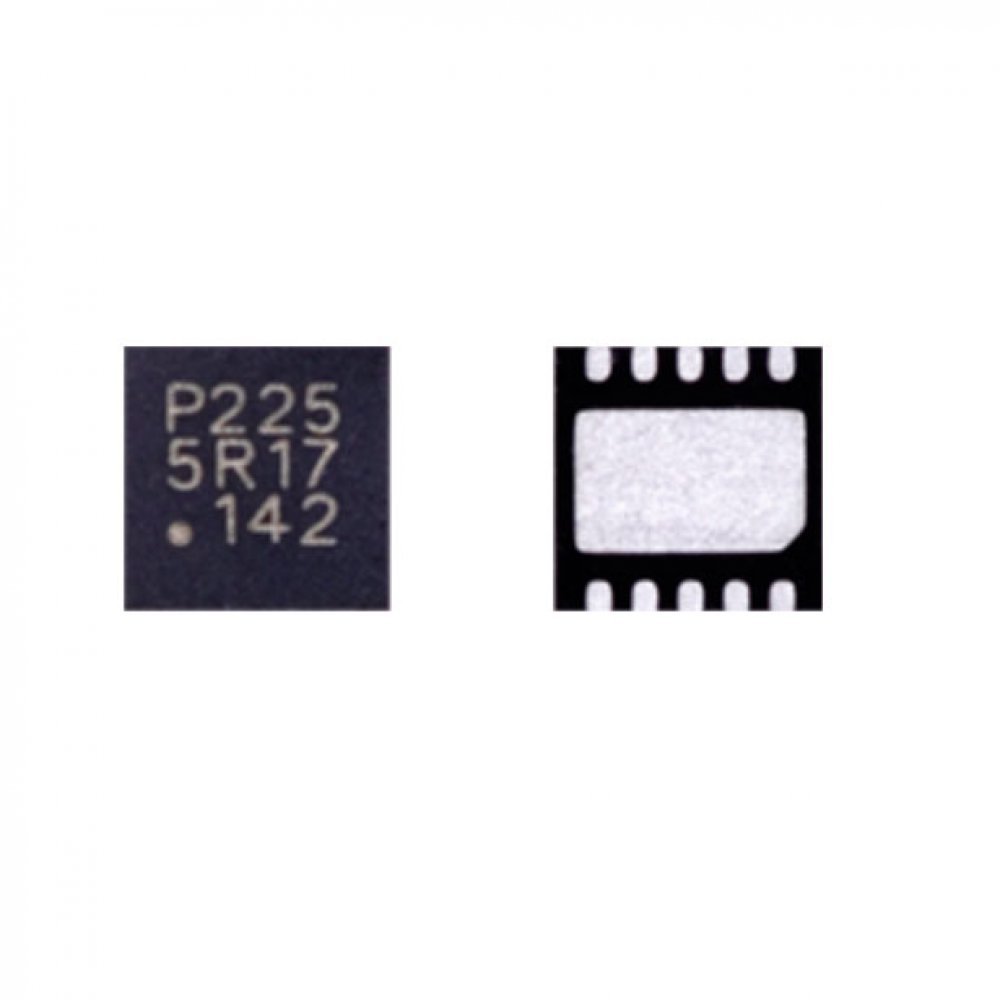

• Available in 10-pin DFN package
• Lead (Pb)-Free and RoHS compliant

Maiores detalhes de P225 no site do fabricante:
https://www.via-labs.com/product_show.php?id=84
