Chipset H61 Rev 3.0 B3, DDR3 até 16GB Dual Channel, 4 SATA 3GBs - Vídeo VGA, 1x PCI-E x16, 3x PCI-E
R$ 337,00
à vista no Pix ou Boleto
ou R$ 354,42 em 1x no cartão (via site)
ou R$ 374,11 no cartão em até 10x sem juros (apenas na loja física)
R$ 337,00
à vista no Pix ou Boleto
R$ 354,42
em 1x no cartão (via site)
R$ 374,11 no cartão
em até 10x sem juros
(apenas na loja física)
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 84733041
Condição de P8H61-M-LX-I: Novo em embalagem comercial
Garantia de P8H61-M-LX-I: 12 meses direto com a Net Computadores
| CPU | Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
| Chipset | Intel® H61(B3) |
| Memory | 2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic | Integrated Graphics Processor VGA output support : RGB port - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Supports DirectX 10.1 |
| Expansion Slots | 1 x PCIe 2.0 x16 3 x PCIe 2.0 x1 |
| Storage | Intel® H61(B3) chipset : 4 x SATA 3Gb/s port(s), blue |
| LAN | Realtek® 8111E , 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC 887 8-Channel High Definition Audio CODEC *1 |
| USB Ports | Intel® H61(B3) chipset : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board) |
| Overclocking Features | Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |
| Special Features | ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite II - Ai Charger - Anti-Surge - Low EMI Solution - ESD Guards - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 |

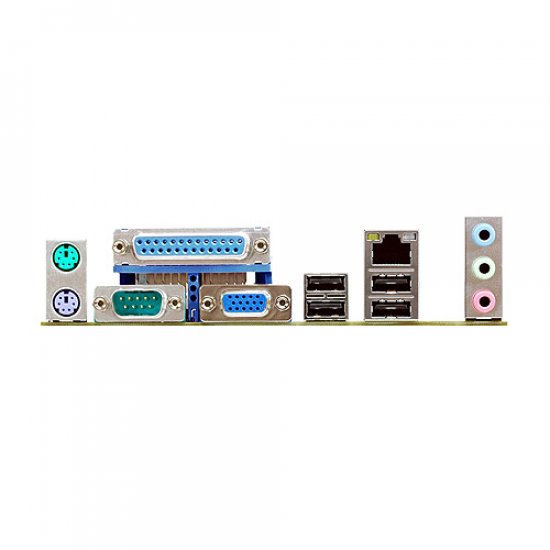

| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 2.0 1 x COM port(s) 1 x Parallel port(s) 3 x Audio jack(s) |
| Internal I/O Ports | 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) |

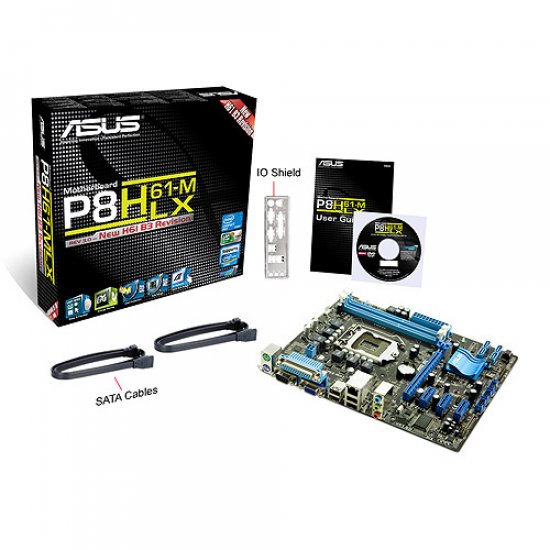

| Accessories | User’s manual I/O Shield 2 x SATA 3Gb/s cable(s) |
| BIOS | 32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2.0a, Multi-language BIOS |
| Support Disc | Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) |
| Form Factor | uATX Form Factor 9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm ) |
| Note | *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
Maiores detalhes de P8H61-M-LX-I no site do fabricante:
http://www.asus.com/Motherboards/Intel_Socket_1155/P8H61M_LX/#specifications
Tags de P8H61-M-LX-I: P8H61-M-LX-I, P8H61-M LX I, P8H61-M LX, P8H61-M, Asus
P8H61-M-LX-I Motherboard ASUS LGA1155 Core i7/i5/i3 Chipset H61 Rev 3.0 B3, DDR3 até 16GB Dual Channel, 4 SATA 3GBs - Vídeo VGA, 1x PCI-E x16, 3x PCI-E
Condição de P8H61-M-LX-I:
Novo em embalagem comercial
Garantia de P8H61-M-LX-I:
12 meses direto com a Net Computadores
| CPU | Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
| Chipset | Intel® H61(B3) |
| Memory | 2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic | Integrated Graphics Processor VGA output support : RGB port - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Supports DirectX 10.1 |
| Expansion Slots | 1 x PCIe 2.0 x16 3 x PCIe 2.0 x1 |
| Storage | Intel® H61(B3) chipset : 4 x SATA 3Gb/s port(s), blue |
| LAN | Realtek® 8111E , 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC 887 8-Channel High Definition Audio CODEC *1 |
| USB Ports | Intel® H61(B3) chipset : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board) |
| Overclocking Features | Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |
| Special Features | ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite II - Ai Charger - Anti-Surge - Low EMI Solution - ESD Guards - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 |
| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 2.0 1 x COM port(s) 1 x Parallel port(s) 3 x Audio jack(s) |
| Internal I/O Ports | 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) |
| Accessories | User’s manual I/O Shield 2 x SATA 3Gb/s cable(s) |
| BIOS | 32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2.0a, Multi-language BIOS |
| Support Disc | Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) |
| Form Factor | uATX Form Factor 9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm ) |
| Note | *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
Maiores detalhes de P8H61-M-LX-I no site do fabricante:
http://www.asus.com/Motherboards/Intel_Socket_1155/P8H61M_LX/#specifications
Tags de P8H61-M-LX-I: P8H61-M-LX-I, P8H61-M LX I, P8H61-M LX, P8H61-M, Asus
