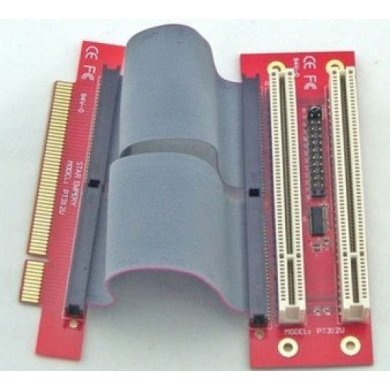

PA2523 Adaptador Riser 1x PCI 32bit para 2x PCI

32bits com cabo flexível

PA2523 - OEM
PA2523 Adaptador Riser 1x PCI 32bit para 2x PCI
*As imagens podem ser ilustrativas
Adaptador Riser 1x PCI 32bit para 2x PCIAdaptador Riser 1x PCI 32bit para 2x PCI

R$ 150,00

à vista no Pix ou Boleto

ou R$ 157,35 em 1x no cartão (via site)

ou R$ 166,09 no cartão em até 10x sem juros (apenas na loja física)

R$ 150,00

à vista no Pix ou Boleto

R$ 157,35
em 1x no cartão (via site)

R$ 166,09 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
84733042

R$ 150,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733042

PA2523 Adaptador Riser 1x PCI 32bit para 2x PCI
32bits com cabo flexível

Condição de PA2523:    Novo em embalagem comercial

Garantia  de  PA2523:     12 meses direto com a Net Computadores



4 layer PCB bard designing.
2 slot PCI 32 bits/5V 66MHz riser card with 10cms length flexible cable.
PCI Riser Slot 1 (lower slot) uses the system resources (Device ID, INT) of the PCI slot on the motherboard.
EXT-PCI Slot 2 (upper slot) uses Device 19 and INT_A, and is supported through most motherboard BIOS.

This riser card is developed base on, and fully compatible with all VIA Mini-ITX series motherboards.
The later version Intel, Jetway and MSI Mini-ITX motherboards may have IRQ or address conflict. Special rework required, otherwise it may cause boot problem or work on one slot only.
Currently we guarantee at least 1 PCI slot work with Intel model DG41MJ and most MSI motherboards.


Tags de PA2523: PA2523, riser, riser card, Riser PCI, PCI Riser, PT312U, OEM, OEM

PA2523 Adaptador Riser 1x PCI 32bit para 2x PCI 32bits com cabo flexível

Condição de PA2523:
Novo em embalagem comercial

Garantia  de  PA2523:
12 meses direto com a Net Computadores


4 layer PCB bard designing.
2 slot PCI 32 bits/5V 66MHz riser card with 10cms length flexible cable.
PCI Riser Slot 1 (lower slot) uses the system resources (Device ID, INT) of the PCI slot on the motherboard.
EXT-PCI Slot 2 (upper slot) uses Device 19 and INT_A, and is supported through most motherboard BIOS.

This riser card is developed base on, and fully compatible with all VIA Mini-ITX series motherboards.
The later version Intel, Jetway and MSI Mini-ITX motherboards may have IRQ or address conflict. Special rework required, otherwise it may cause boot problem or work on one slot only.
Currently we guarantee at least 1 PCI slot work with Intel model DG41MJ and most MSI motherboards.


Tags de PA2523: PA2523, riser, riser card, Riser PCI, PCI Riser, PT312U, OEM, OEM
