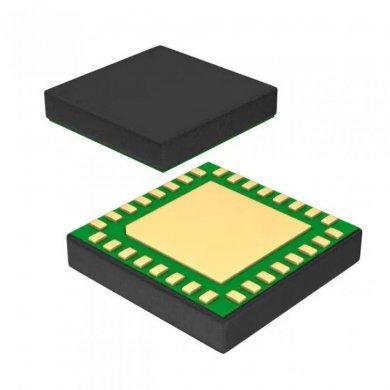

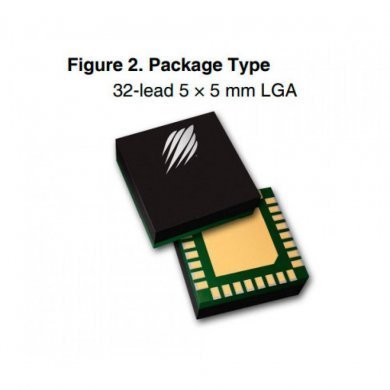

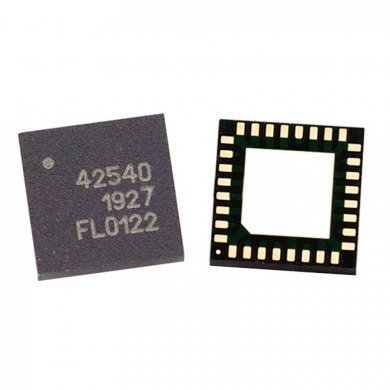

PE42540F-Z Ci 42540 RF Switch SP4T 10Hz 8GHz 50ohm 32LGA

Name: PE42540F-Z Ci 42540 RF Switch SP4T 10Hz 8GHz 50ohm 32LGA
Brand: pSemi
SKU: PE42540F-Z
Price: 125.00 BRL
Availability: InStock

UltraCMOS SP4T RF Switch 10Hz to 8GHz

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 125,00

à vista no Pix ou Boleto

ou R$ 131,55 em 1x no cartão (via site)

ou R$ 138,86 no cartão em até 10x sem juros (apenas na loja física)

R$ 125,00

à vista no Pix ou Boleto

R$ 131,55
em 1x no cartão (via site)

R$ 138,86 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

7 dias troca. Sem garantia após soldado

NCM:

85423190

R$ 125,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
0 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar PE42540F-Z

PE42540F-Z Ci 42540 RF Switch SP4T 10Hz 8GHz 50ohm 32LGA
UltraCMOS SP4T RF Switch 10Hz to 8GHz

Condição de PE42540F-Z: Novo em embalagem comercial

Garantia de PE42540F-Z: 7 dias troca. Sem garantia após soldado

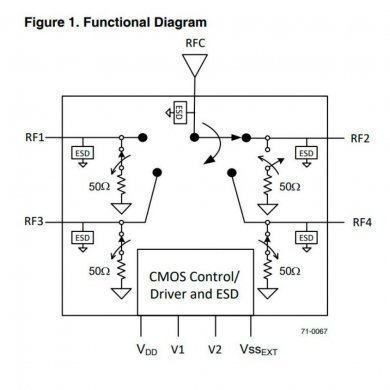

The PE42540 is a HaRP technology enhanced absorptive SP4T RF switch developed on UltraCMOS process technology.
This switch is designed specifically to support the requirements of the test equipment and ATE market. It comprises four symmetric RF ports and has very high isolation.

An on-chip CMOS decode logic facilitates a two-pin low voltage CMOS control interface and an optional external VSS feature.
High ESD tolerance and no blocking capacitor requirements make this the ultimate in integration and ruggedness.
The PE42540 is manufactured on PSemi UltraCMOS process, a patented variation of silicon-on-insulator (SOI) technology on a sapphire substrate, offering the performance of GaAs with the economy and integration of conventional CMOS

Features
- HaRP technology enhanced
- Fast settling time
- Eliminates gate and phase lag
- No drift in insertion loss and phase
- High linearity: 58 dBm IIP3
- Low insertion loss: 0.8dB @ 3GHz, 1.0dB @ 6GHz and 1.2dB @ 8GHz
- High isolation: 45dB @ 3GHz, 39dB @ 6GHz and 31dB @ 8GHz
- Maximum power handling: 30dBm @ 8GHz
- High ESD tolerance of 2kV HBM on RFC and 1kV HBM on all other pins

Product Attribute	Attribute Value
Circuit	SP4T
Test Frequency	8GHz
Impedance	50Ohm
Topology	Absorptive
Frequency Range	10Hz~8GHz
Insertion Loss	1.2dB
Isolation	31dB
P1dB	33dBm
IIP3	58dBm
RoHS Status	RoHS Compliant

Maiores detalhes de PE42540F-Z no site do fabricante:
https://www.psemi.com/pdf/datasheets/pe42540ds.pdf

Tags de PE42540F-Z: ci 42540, ci PE42540F, ci PE42540, Ci de RF 8Ghz, tecnologia HaRP,, pSemi

PE42540F-Z Ci 42540 RF Switch SP4T 10Hz 8GHz 50ohm 32LGA UltraCMOS SP4T RF Switch 10Hz to 8GHz

Condição de PE42540F-Z:
Novo em embalagem comercial

Garantia de PE42540F-Z:
7 dias troca. Sem garantia após soldado

Product Attribute	Attribute Value
Circuit	SP4T
Test Frequency	8GHz
Impedance	50Ohm
Topology	Absorptive
Frequency Range	10Hz~8GHz
Insertion Loss	1.2dB
Isolation	31dB
P1dB	33dBm
IIP3	58dBm
RoHS Status	RoHS Compliant
