Rede / Placa de Rede Fibra Óptica / PEG2SFPI6-R

Rede / Placa de Rede Fibra Óptica

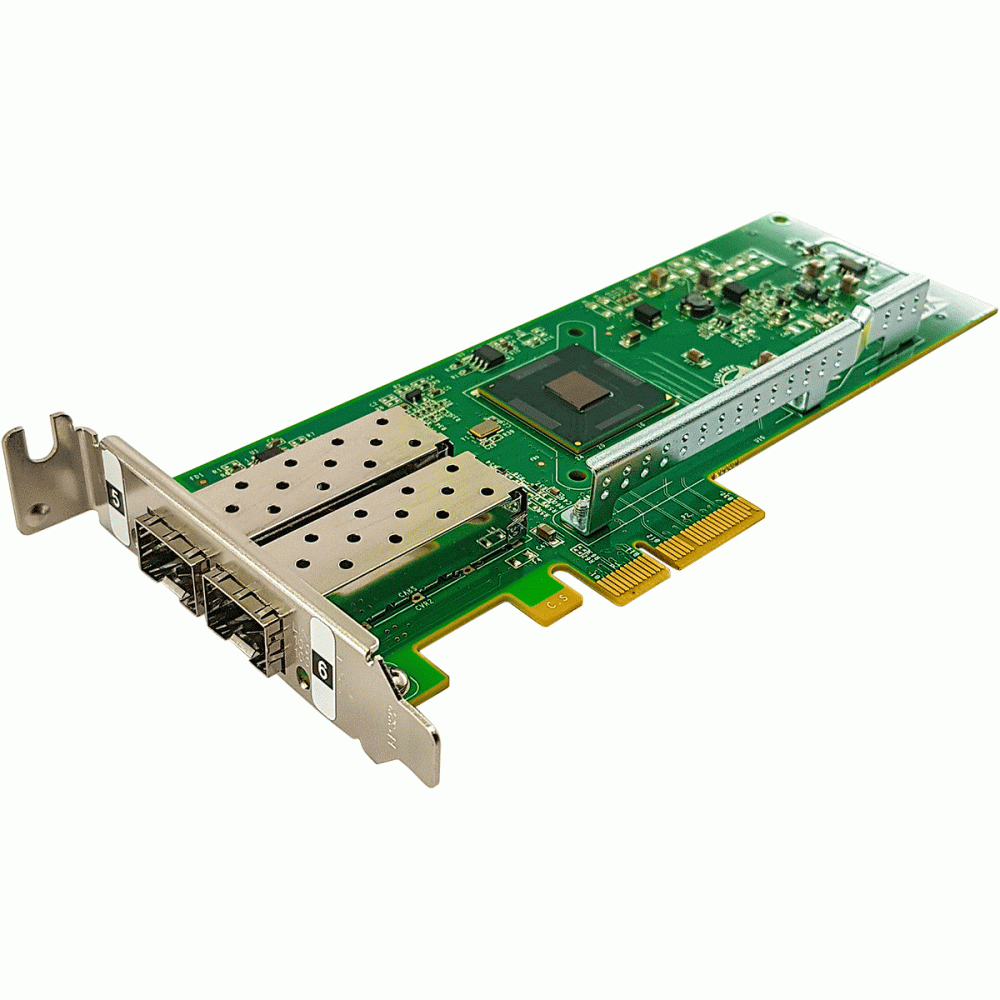

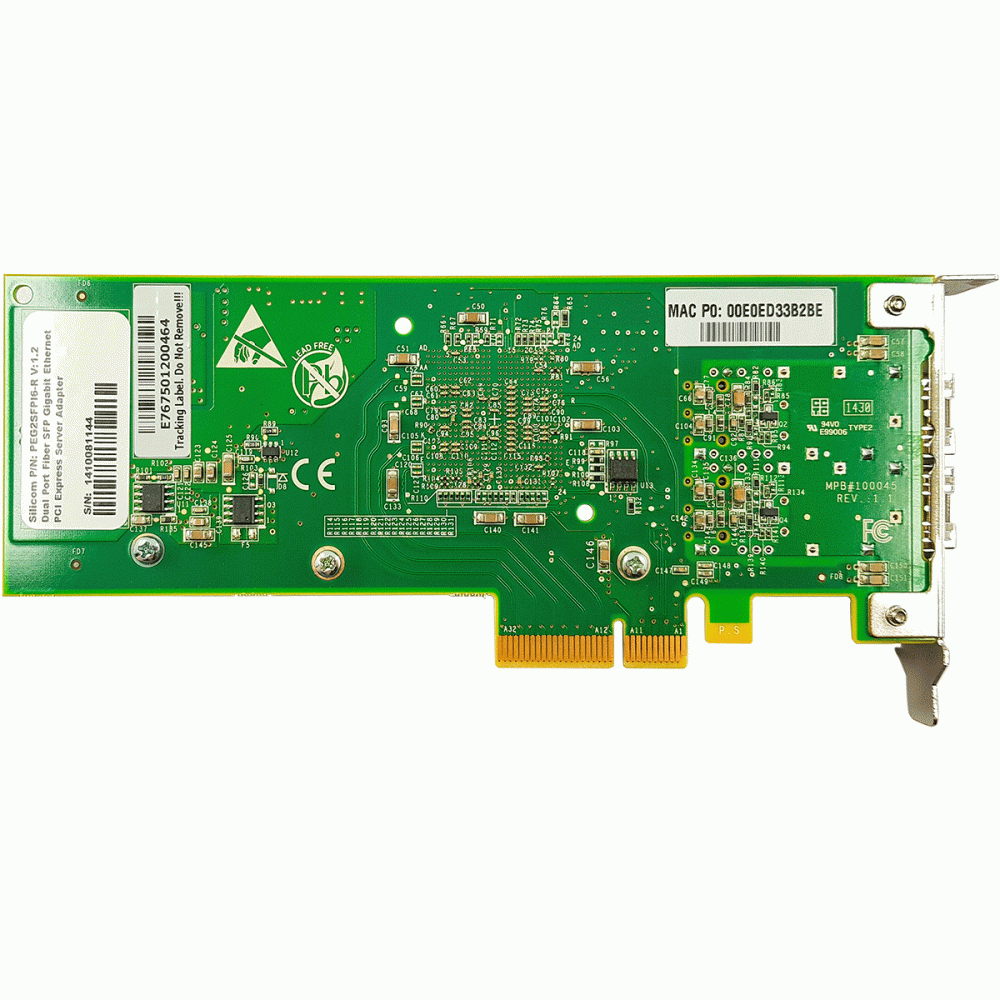

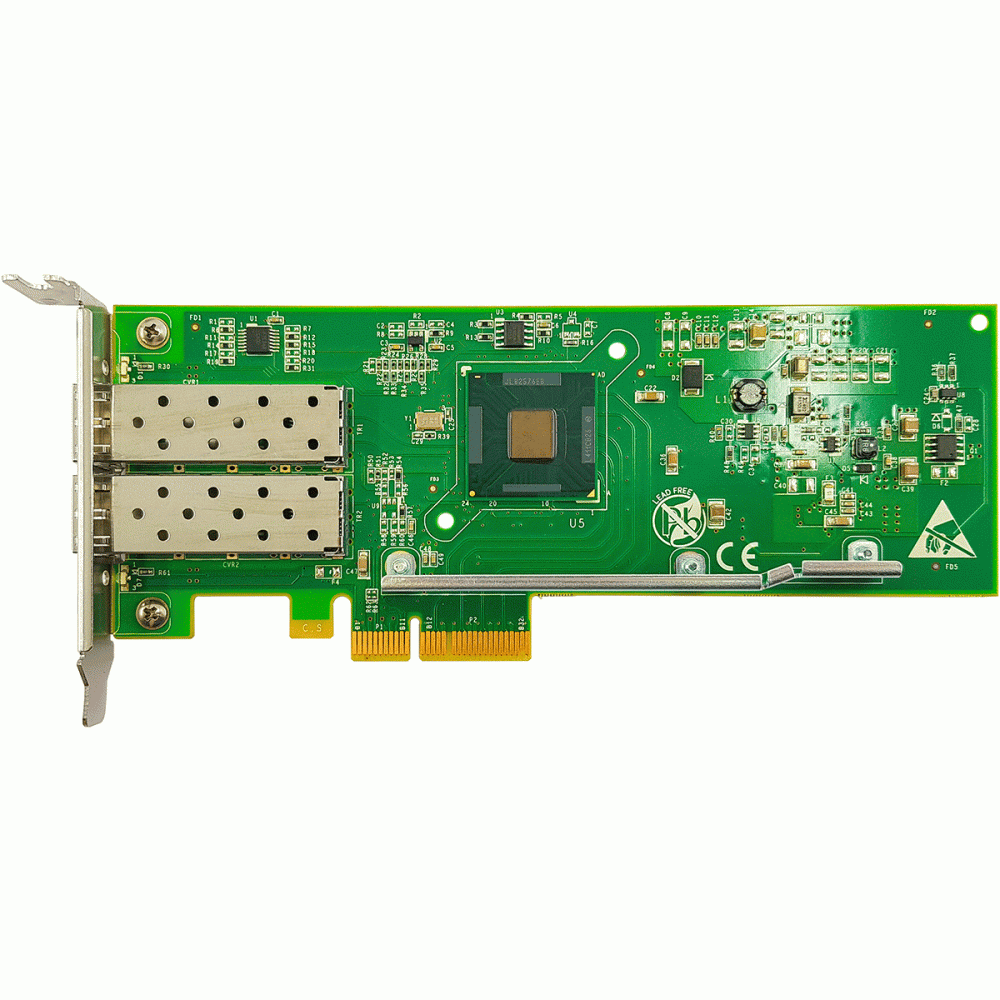

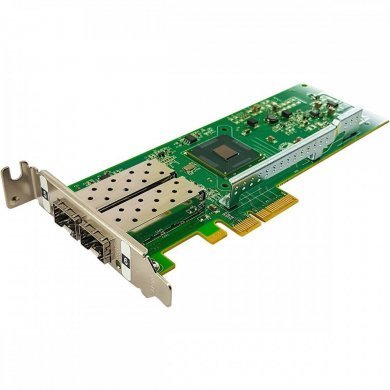

PEG2SFPI6-R Placa Dual Port Fiber SFP Gigabit Ethernet PCI-E

espelho perfil baixo

Seminovo recondicionado e recertificado como Grade A - Pronto para uso!

PEG2SFPI6-R - Silicom Connectivity Solutions

PEG2SFPI6-R Placa Dual Port Fiber SFP Gigabit Ethernet PCI-E

Você está vendo fotos reais do produto

Placa Dual Port Fiber SFP Gigabit Ethernet PCI-E

em estoque, envio imediato

R$ 320,00

à vista no Pix ou Boleto

ou R$ 336,84 em 1x no cartão (via site)

ou R$ 355,56 no cartão em até 10x sem juros (apenas na loja física)

R$ 320,00

à vista no Pix ou Boleto

R$ 336,84
em 1x no cartão (via site)

R$ 355,56 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Seminovo recondicionado e recertificado como Grade A - Pronto para uso!

Garantia:

3 meses direto com a Net Computadores

NCM:

85176251

R$ 320,00

à vista no pix

Comprar

Condição:
Seminovo recondicionado e recertificado como Grade A - Pronto para uso!

Garantia:
3 meses direto com a Net Computadores

NCM: 85176251

Cotação PJ mais de uma unidade

Indicar PEG2SFPI6-R

PEG2SFPI6-R Placa Dual Port Fiber SFP Gigabit Ethernet PCI-E
espelho perfil baixo

Condição de PEG2SFPI6-R: Seminovo recondicionado e recertificado como Grade A - Pronto para uso!

Garantia de PEG2SFPI6-R: 3 meses direto com a Net Computadores

Outros PNs para este item: PEG2SFPI6

Placa de Rede Dual Port PCI-E x4 Gigabit Bypass Server
Fabricante: DELL / Silicom
Condição: Produto seminovo, recondicionado grade A, poderá ter pequenos sinais de instalação, porém 100% funcional.

O adaptador de servidor PCI Express Gigabit Ethernet SFP de porta dupla da Silicom é uma placa de interface de rede PCI-Express X4 que contém quatro portas Gigabit SFP em um adaptador PCI-Express.
O adaptador de servidor PCI Express Gigabit Ethernet SFP de porta dupla da Silicom foi projetado para servidores e dispositivos de ponta. O adaptador foi projetado para processadores multi-core e otimizado para virtualização.
O adaptador de servidor PCI Express Gigabit Ethernet SFP de porta dupla da Silicom permite tolerância a falhas por meio de agrupamento. O tráfego da porta com falha é roteado por outros membros do grupo.
O adaptador de servidor PCI Express Gigabit Ethernet SFP de porta dupla da Silicom possui aceleração de hardware integrada que realiza descarregamento de checksum TCP/UDP/IP e segmentação TCP. O processamento do host descarrega os aceleradores, liberando a CPU para o processamento de aplicativos.
O adaptador de servidor PCI Express Gigabit Ethernet SFP de porta dupla da Silicom é a solução ideal para implementar vários segmentos de rede, aplicativos de rede de alta potência de missão crítica e ambientes em servidores de alto desempenho.
O adaptador de servidor PCI Express Gigabit Ethernet SFP de porta dupla da Silicom é baseado no Intel 82576 Dual Port Gigabit Ethernet MAC+PHY do controlador Intel.

Performance Features:

16 Transmit and Receive queues per port
Up to 16 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
Support for 8 pools of virtual machine Device Queues (VMDq) per port
Support Direct Cache Access (DCA)
Support Intel I/O AT 2.0
TSO interleaving for reduced latency
Minimized device I/O interrupts using MSI and MSI-X
Offload of TCP / IP / UDP checksum calculation and TCP segmentation
SCTP receive and transmit checksum offload
Packet interrupt coalescing timers (packet timers) and absolute- delay interrupt timers for both transmit and receive operation

SFP Gigabit Ethernet:

Gigabit Ethernet Adapters with SFP cage support
1000Base-LX Fiber Gigabit Ethernet with 1000Base-LX SFP transceiver
1000Base-SX Fiber Gigabit Ethernet with 1000Base-SX SFP transceiver
1000Base-T (1000Mbit/s) Copper Gigabit Ethernet with 1000Base-T SFP transceiver
Small Form Factor Pluggable (SFP) Cage for SFP LC connectors
- 2 PortLink synchronization
- Optional SGMII mode (future support)

Common Key features:

PCI-Express Base Specification Revision 1.1 (2.5Gbps) to the upstream on board switch
High performance, reliability, and low power use in Intel 82576 Dual integrated MAC + PHY and SERDES chip Controllers
Ultra deep, packet buffer per channel lowers CPU utilization
Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
Server class reliability, availability and performance features
- Link Aggregation and Load Balancing
- Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)
- Switch and NIC Independent
- Failover
Priority queuing - 802.1p layer 2 priority encoding
Virtual LANs -802.1q VLAN tagging
Jumbo Frame (9.5KB)
802.x flow control
PCI-SIG SR IOV (8 VF)
Multicast/ broadcast Packet replication
Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)
Supports Vital Product Data (VPD)
Integrated LinkSec security engines
Supports IEEE 1588
LEDs indicators for link/Activity Mode status

PEG2SFPI6
Dual Port Fiber SFP Gigabit Ethernet PCI Express Server Adapter Intel based

SFP Gigabit Ethernet Technical Specifications (SFP) Adapters
SFP (Small Form Factor Pluggable) supports:	1 Gbit SERDES interfaces supports 1000Base-X in order to connect with SFP to 1000Base-SX / 1000Base-LX / 1000Base-T SFP transceivers
IEEE Standard / Network topology: with 1000Base-T SFP	Gigabit Ethernet (1000Mbit/s only), 1000Base-T
SFP Gigabit Ethernet Technical Specifications (SFP 1000Base-SX) Adapters
IEEE Standard / Network topology: with 1000Base-SX SFP	Fiber Gigabit Ethernet, 1000Base-SX (850nM)
Cables and Operating distance	Multimode fiber: 220m at 62.5 um 550m at 50 um
Optical Output Power	Minimum: -9 dBm
Optical Receive Sensitivity	Maximum: -20 dBm
SFP Gigabit Ethernet Technical Specifications (SFP 1000Base-LX) Adapters
IEEE Standard / Network topology: with 1000Base-LX SFP	Fiber Gigabit Ethernet, 1000Base-LX (1310nM)
Cables and Operating distance	Single-Mode: 5000m at 9um Multimode fiber: 550m at 50 um 550m at 62.5 um
Optical Output Power	Minimum: -9.5 dBm
Optical Receive Sensitivity	Maximum: -20 dBm
Operating Systems Support
Operating system support:	Windows Linux FreeBSD VMware
General Technical Specifications
Interface Standard:	PCI-Express Base Specification Revision 1.1
Board Size:	167.64mm x 68.91mm (6.6- X 2.713-)
PCI Express Card Type:	x4 Lane , Gen 1 2.5Gbps
PCI Express Voltage:	+3.3V -9%
PCI Connector:	Gold Finger: X4
Controller:	Intel 82576EB

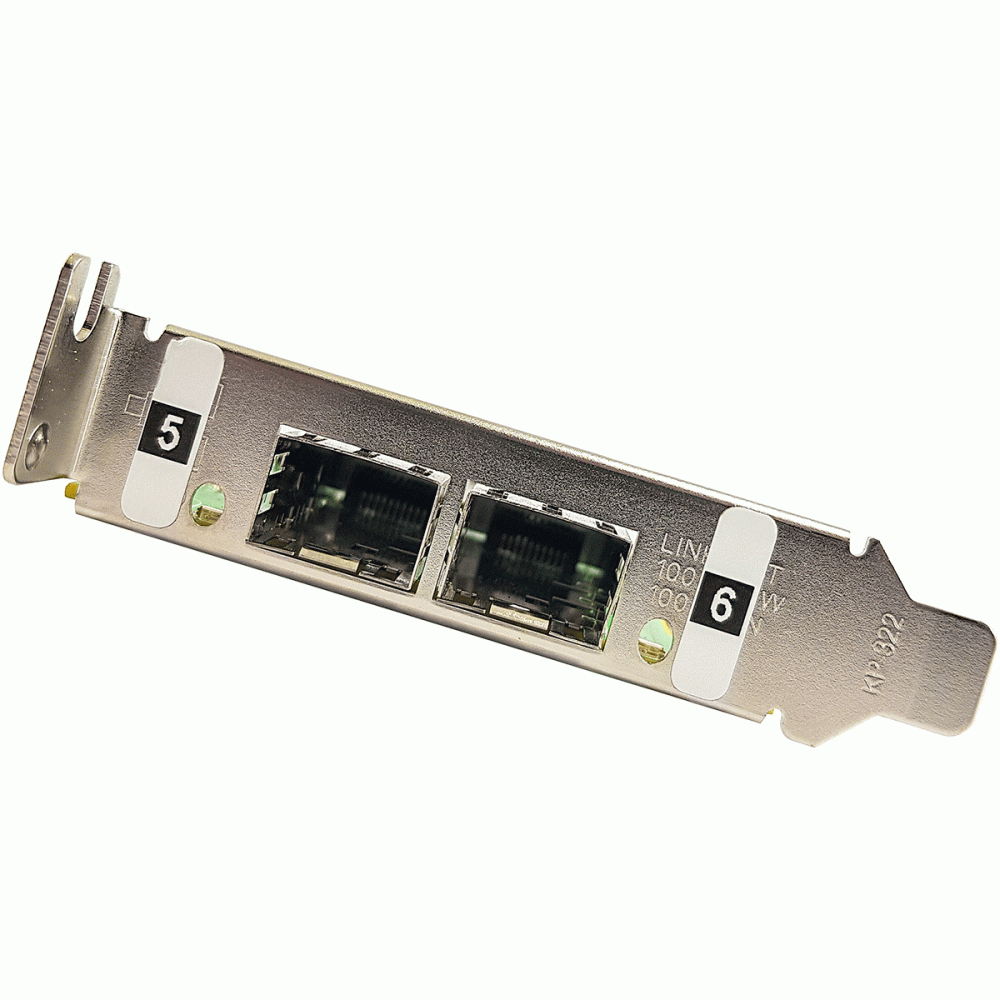

Holder:	Metal Bracket: Full Height
I/O:	Small Form Factor Pluggable (SFP) Cage located on edge of the board
Operating Temperature:	-5C - 40C (23F - 104F)
Storage Temperature	-40C-65C (-40F-149F)
EMC Certifications:	FCC Part 15, Subpart B Class A Conducted Emissions Radiated Emissions CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003 Conducted Emissions Radiated Emissions CE EN 55024: 1998 Amendments A1: 2000; A2: 2003 Immunity for ITE Amendment A1: 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendment A1: 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2: 1995 ESD Air Discharge 8kV. Contact Discharge 4kV. CE IEC 6100-4-3:1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4:1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5:1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6:1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11:1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
LEDs
LEDs:	(1) Bi Color LED per port: Turns on Yellow 1G Link. Blinks Yellow on 1G Activity. Turns on Green 100M Link. Blinks Green on 100M Activity
LEDs location:	LEDs are located on the PCB, visible via holes in the metal bracket. Each Green Link/Act and Bi-color Link Speed LEDs are located near their own SFP connector port
Connectors:	Small Form Factor Pluggable (SFP) Cage

Maiores detalhes de PEG2SFPI6-R no site do fabricante:
https://www.silicom-usa.com/pr/eol/peg2sfpi6/

Tags de PEG2SFPI6-R: PEG2SFPI6, PEG2SFPI6-R, PEG2SFPI6R, Dual Port Fiber SFP Gigabit Ethernet PCI Express Server Adapter Intel, PEG2SFPI6-SX-R, PEG2SFPI6-LX-R, Intel 82576, Silicom Connectivity Solutions
