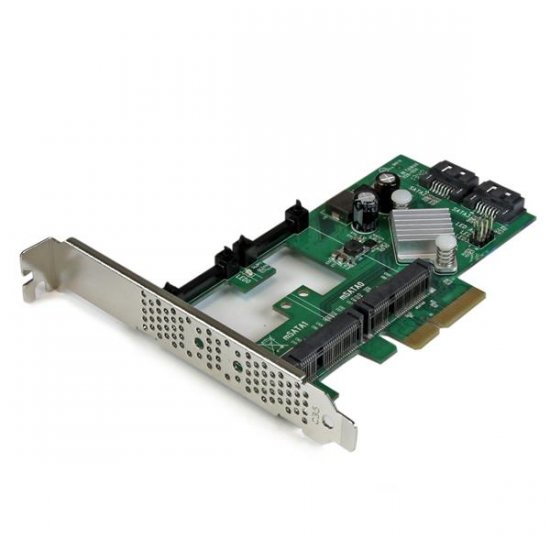

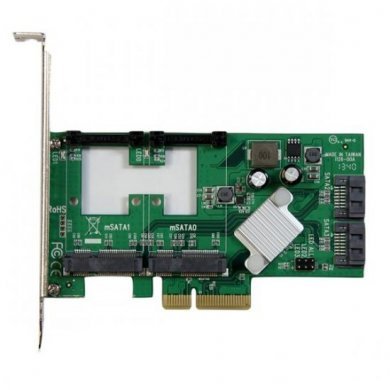

PEXMSATA3422 Controladora StarTech RAID SATA

PEXMSATA3422 Controladora StarTech RAID SATA 2 Portas SATA III / mSATA, RAID JBOD/1/0

Condição de PEXMSATA3422:
Novo em embalagem comercial

Garantia  de  PEXMSATA3422:
12 meses direto com a Net Computadores

Hardware
• Bus Type: PCI Express
• Card Type: Standard Profile (LP bracket incl.)
• Chipset ID: Marvell - 88SE9230
• Industry Standards: Serial ATA 3.0 specification / PCI Express: 2.0
• Interface: Mini SATA / SATA
• Port Style: Integrated on Card
• Ports: 2

Performance
• LBA support: 48-bit
• Max Drive Capacity: Currently tested up to 4TB per drive
• Port Multiplier: Yes
• Type and Rate: SATA III (6 Gbps)
• RAID: Yes
• Supported RAID Modes:
- JBOD - (Just a Bunch of Disks)
- RAID 1 (Mirrored Disks)
- RAID 0 (Striped Disks)

Connector(s)
• Connector Type(s): 1 - PCI Express x4 Male
• Internal Ports:
- 2 - mSATA (52 pin; Mini SATA) Slot Receptacle
- 2 - SATA (7 pin; Data) Plug

Software
• OS Compatibility
- Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64)
- Windows Server® 2012, 2008 R2, 2003
- Mac OS® 10.6 and up (Tested up to 10.10)
- Linux 3.5
