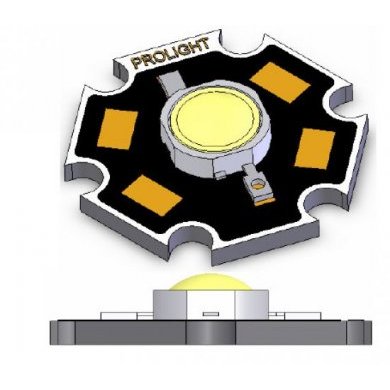

PG1N-1LGS LED de Alto Brilho Verde ProLight 1W 3,5 volts 350ma com Dicipado

Case: Star-PCB With Aluminum Cooler, DC Forward Current (IF): Typ 350mA, Viewing Angle: 140 Degree,

PG1N-1LGS - Ledon
PG1N-1LGS LED de Alto Brilho Verde ProLight 1W 3,5 volts 350ma com Dicipado
PG1N-1LGS LED de Alto Brilho Verde ProLight 1W 3,5 volts 350ma com Dicipado
clique para ampliar
*As imagens podem ser ilustrativas
PG1N-1LGS LED de Alto Brilho Verde ProLight 1W 3,5 volts 350ma com Dicipado
PG1N-1LGS LED de Alto Brilho Verde ProLight 1W 3,5 volts 350ma com Dicipado

R$ 13,00

à vista no Pix ou Boleto

ou R$ 12,90 em 1x no cartão (via site)

ou R$ 13,61 no cartão em até 10x sem juros (apenas na loja física)

R$ 13,00

à vista no Pix ou Boleto

R$ 12,90
em 1x no cartão (via site)

R$ 13,61 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
3 meses direto com a Net Computadores

NCM:
0

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 0

PG1N-1LGS LED de Alto Brilho Verde ProLight 1W 3,5 volts 350ma com Dicipado
Case: Star-PCB With Aluminum Cooler, DC Forward Current (IF): Typ 350mA, Viewing Angle: 140 Degree,

Condição de PG1N-1LGS:    Novo em embalagem comercial

Garantia  de  PG1N-1LGS:     3 meses direto com a Net Computadores



Electrical & Optical Characteristics (Tj=25 degree C)

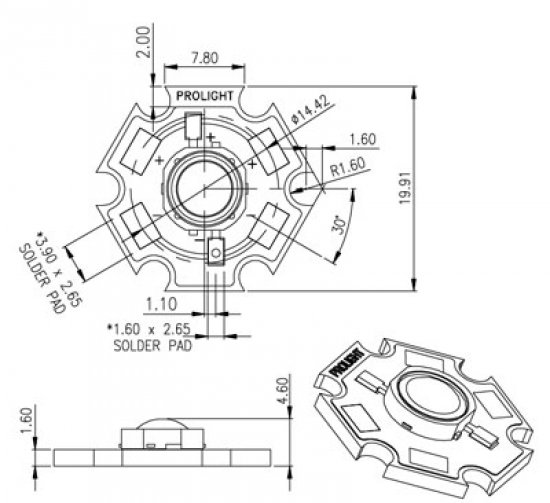

Case: Star-PCB With Aluminum Cooler
DC Forward Voltage (VF): Min 2.79V, Typ 3.55V, Max 3.99V
DC Forward Current (IF): Typ 350mA
Wavelength: Min 520nm, Typ 530nm, Max 550nm
Spectral Half-Width: 35nm
Temperature Co-Efficient: 0.04nm / Degree C
Viewing Angle: 140 Degree
Intensity Luminous (Iv): 39.8 LM

Tags de PG1N-1LGS: Led Alto Brilho, Led 1w, Componentes Eletronicos, Ledon, Ledon

PG1N-1LGS LED de Alto Brilho Verde ProLight 1W 3,5 volts 350ma com Dicipado Case: Star-PCB With Aluminum Cooler, DC Forward Current (IF): Typ 350mA, Viewing Angle: 140 Degree,

Condição de PG1N-1LGS:
Novo em embalagem comercial

Garantia  de  PG1N-1LGS:
3 meses direto com a Net Computadores


Electrical & Optical Characteristics (Tj=25 degree C)
Case: Star-PCB With Aluminum Cooler
DC Forward Voltage (VF): Min 2.79V, Typ 3.55V, Max 3.99V
DC Forward Current (IF): Typ 350mA
Wavelength: Min 520nm, Typ 530nm, Max 550nm
Spectral Half-Width: 35nm
Temperature Co-Efficient: 0.04nm / Degree C
Viewing Angle: 140 Degree
Intensity Luminous (Iv): 39.8 LM

Tags de PG1N-1LGS: Led Alto Brilho, Led 1w, Componentes Eletronicos, Ledon, Ledon
