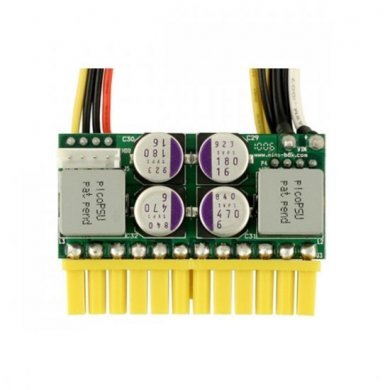

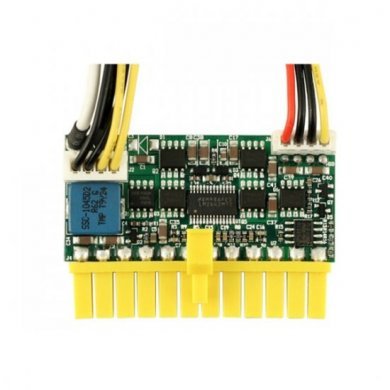

PICOPSU-160-XT Pico Size Fonte Pico PSU DC 12v 160Watts

Name: PICOPSU-160-XT Pico Size Fonte Pico PSU DC 12v 160Watts
Brand: Pico Size Computing
SKU: PICOPSU-160-XT
Price: 737.00 BRL
Availability: InStock

Maximum Output: 160w, Conecta-se diretamente nos ATX de 24 pinos, Alimentado através de seu adaptad

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 737,00

à vista no Pix ou Boleto

ou R$ 775,23 em 1x no cartão (via site)

ou R$ 818,30 no cartão em até 10x sem juros (apenas na loja física)

R$ 737,00

à vista no Pix ou Boleto

R$ 775,23
em 1x no cartão (via site)

R$ 818,30 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem antiestática

Garantia:

3 meses direto com a Net Computadores

NCM:

85043119

R$ 737,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
3 meses direto com a Net Computadores

NCM: 85043119

Cotação PJ mais de uma unidade

Indicar PICOPSU-160-XT

PICOPSU-160-XT Pico Size Fonte Pico PSU DC 12v 160Watts
Maximum Output: 160w, Conecta-se diretamente nos ATX de 24 pinos, Alimentado através de seu adaptad

Condição de PICOPSU-160-XT: Novo em embalagem antiestática

Garantia de PICOPSU-160-XT: 3 meses direto com a Net Computadores

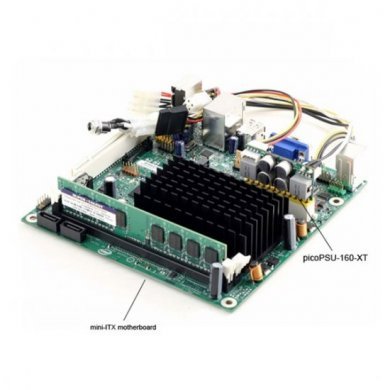

Introducing the PicoPSU-160-XT High power, 24 pin mini-ITX power supply in a small package (picoPSU)

High Reliability design, less cables. The picoPSU-160-XT is the toughest plug-in 12V ATX dc-dc power supply. The picoPSU is compatible with an entire range of mini-itx motherboards as well as regular boards. The picoPSU-160-XT provides a cool, silent 160 Watts (200 watt peak) of power for small PC designs using a single 12V power source.

By using Patent Pending HyperWatt[TM] technologies , picoPSU-160-XT packs an impressive amount of power relative with its very small footprint. picoPSU-160-XT has several key advantages over traditional power supplies:

- Very small , can build unltra-compact PC enclosures and slim server enclosures.
- Fits any motherboard equipped with a 24pin ATX connector.
- 100% silent, fanless, no moving parts.
- Operates at only 12V.
- Highly efficient design, does not produce a lot of heat.
- Ideal for boards such as D945GCLF2, DG45FC, (Atom, Core 2 Duo) as well as all VIA C7/nano or AMD motherboards.

Small computer projects start with small power supplies. picoPSU-160-XT is a crucial key component that unleashes the ultimate power solution for general purpose computing platforms. picoPSU-160-XT is fully ATX compliant PSU, making it an excellent candidate for any silent, fanless and small 12V DC-DC ATX PC power supply project.

Eliminate 24 unnecessary wires by plugging in directly into the motherboard ATX connector. The picoPSU-160-XT 12V dc-dc ATX converter was designed from ground up to fit small form factor ATX boards, allowing enclosure designers to save space not compromising power requirements.

Cool power. Operating at only 12V, the picoPSU-160-XT dc-dc ATX power supply delivers 160 Watts of power. picoPSU provides plenty of power (via ATX connector and HDD cable harness) for CPU and an entire range of peripherals.

100% Silent The picoPSU-160-XT mini PSU is a 100% silent fanless dc to dc solution. No fans, no noise, just power for small and silent PCs.

picoPSU-160-XT is a fully compliant DC-DC ATX PC PSU. It can power VIA mini-ITX boards with C3 / C7 processors, P3, P4, Pentium-M, Core Duo versions and low power AMD processors.

picoPSU-160-XT ATX DC-DC converter is very small, measuring just 31x53x15mm, about the size of two AA batteries, picoPSU-160-XT is also 1U ServerRack compliant.
Features

12v DC Input with 160W Output (200W Peak)
High quality OSCON SPVS capacitors
Tough design will withstand high temp operation
100% Silent Fanless design
No min. loading requirement
4mOhm / 20A mosfet for 12V rail
Plugs directly into the motherboard ATX socket

Não acompanha fonte de alimentação de 12volts.

Maiores detalhes de PICOPSU-160-XT no site do fabricante:
http://www.mini-box.com/picoPSU-160-XT
