PJX8808 5x transistor Mosfet N-Channel 20V 500mA SOT-563

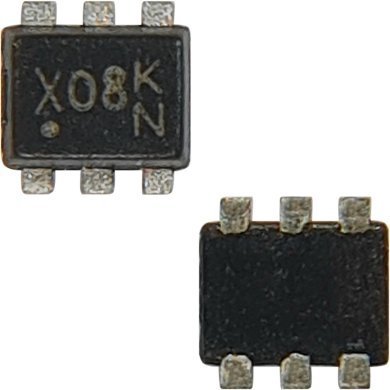

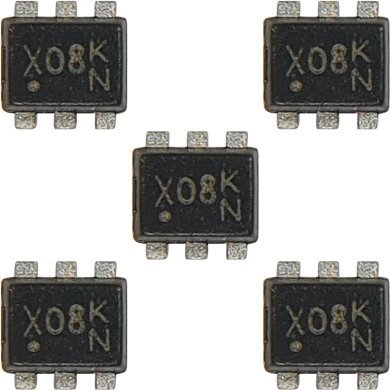

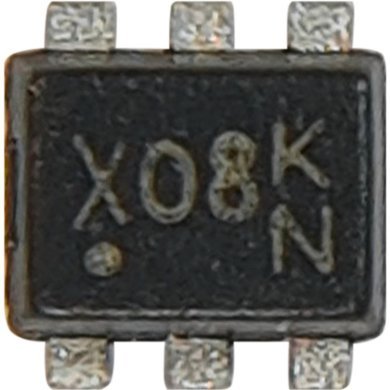

Kit com 5 unidades (marcação no componente: X08 KN)

PJX8808 - Panjit Semi Conductor
PJX8808 5x transistor Mosfet N-Channel 20V 500mA  SOT-563
*As imagens podem ser ilustrativas
5x transistor Mosfet N-Channel 20V 500mA  SOT-5635x transistor Mosfet N-Channel 20V 500mA  SOT-5635x transistor Mosfet N-Channel 20V 500mA  SOT-5635x transistor Mosfet N-Channel 20V 500mA  SOT-563

R$ 40,00

à vista no Pix ou Boleto

ou R$ 42,11 em 1x no cartão (via site)

ou R$ 44,44 no cartão em até 10x sem juros (apenas na loja física)

R$ 40,00

à vista no Pix ou Boleto

R$ 42,11
em 1x no cartão (via site)

R$ 44,44 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
3 meses direto com a Net Computadores

NCM:
85423190

R$ 40,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE
PJX8808 5x transistor Mosfet N-Channel 20V 500mA SOT-563
Kit com 5 unidades (marcação no componente: X08 KN)

Condição de PJX8808:    Novo em embalagem comercial

Garantia  de  PJX8808:     3 meses direto com a Net Computadores



Manufacturer: Panjit
Product Category: MOSFET
Mounting Style: SMD/SMT
Transistor Polarity: N-Channel
Number of Channels: 2 Channel
Vds - Drain-Source Breakdown Voltage: 20 V
Id - Continuous Drain Current: 500 mA
Rds On - Drain-Source Resistance: 3 Ohms
Vgs - Gate-Source Voltage: -10V  10V
Vgs th - Gate-Source Threshold Voltage: 900 mV
Qg - Gate Charge: 1.4 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature:  150 C
Pd - Power Dissipation: 300 mW
Channel Mode: Enhancement
Configuration: Dual
Fall Time: 23 ns
Product Type: MOSFET
Rise Time: 20ns
Transistor Type: 2 N-Channel
Typical Turn-Off Delay Time: 23 ns


Tags de PJX8808: PJX8808, transistor X08 KN, ci X08 KN, PJX8808-R2-00001, Panjit Semi Conductor

PJX8808 5x transistor Mosfet N-Channel 20V 500mA SOT-563 Kit com 5 unidades (marcação no componente: X08 KN)

Condição de PJX8808:
Novo em embalagem comercial

Garantia  de  PJX8808:
3 meses direto com a Net Computadores


Manufacturer: Panjit
Product Category: MOSFET
Mounting Style: SMD/SMT
Transistor Polarity: N-Channel
Number of Channels: 2 Channel
Vds - Drain-Source Breakdown Voltage: 20 V
Id - Continuous Drain Current: 500 mA
Rds On - Drain-Source Resistance: 3 Ohms
Vgs - Gate-Source Voltage: -10V  10V
Vgs th - Gate-Source Threshold Voltage: 900 mV
Qg - Gate Charge: 1.4 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature:  150 C
Pd - Power Dissipation: 300 mW
Channel Mode: Enhancement
Configuration: Dual
Fall Time: 23 ns
Product Type: MOSFET
Rise Time: 20ns
Transistor Type: 2 N-Channel
Typical Turn-Off Delay Time: 23 ns


Tags de PJX8808: PJX8808, transistor X08 KN, ci X08 KN, PJX8808-R2-00001, Panjit Semi Conductor
