PN-8108 Puneng Testador de Cabos de Rede CAT5E/CAT6E

PN-8108 Puneng Testador de Cabos de Rede CAT5E/CAT6E Cable Lengths or Short, Open, Wiring Pin Out, Coaxial, Telephone

Condição de PN-8108:
Novo em embalagem comercial

Garantia  de  PN-8108:
12 meses direto com a Net Computadores

A network cable tester can identify if the wires are paired correctly. It can also show if there is a break in the insulation, a situation which allows crosstalk between two wires that should not be connected. The tester can also tell whether the cable has the proper level of resistance. Generally speaking, a network cable tester is a device that test for different types of faults in cables like continuity, dislocation, open circuit, short circuit, cable pairing faults, or indications like shielding indication, straight cable/ cross over cable indication, etc.

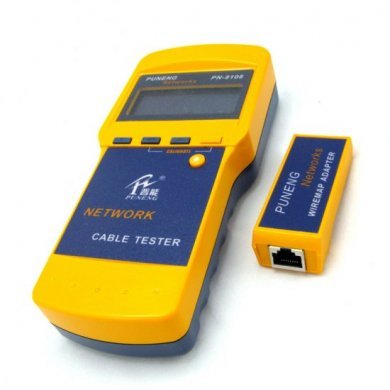

The PN-8108 Multi-Function network Cable Tester is very easy to operate for prevent and solve cable installation problem. It can widely be used for a number of applications such as cable connection sequence, length, user jumper and cable connection continuity and determine any open circuit, short circuit, jumper or cross-talk interference.

Technical Specification

Overall Dimension: 180 x 80 x 40 mm

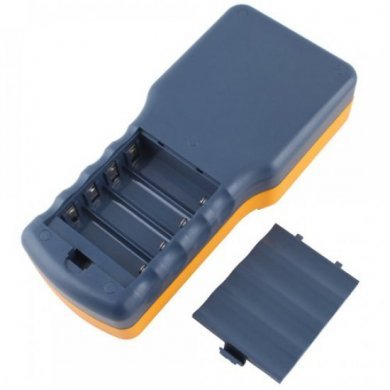

Power Supply: 4x 1.5V AA batteries with power consumption 16 mA
Display: Special 4 x 16 character big screen LCD lattice (valid visual field 61.6 x 25.2 mm)

Type of Test Cable:
STP/ UTP twin twisted cable, coaxial cable, telephone line

Test Port:

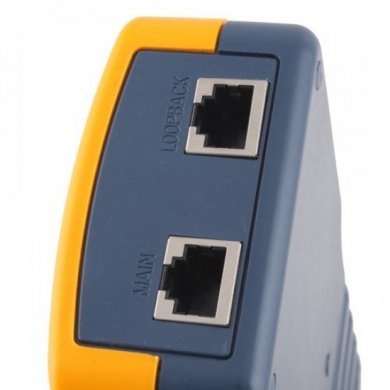

Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 (R).
The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line.

Length Measurement of Twin Twisted Cable:
Scope: 1350 m (31200 ft)
Calibration accuracy: 3% (+/-0.5M or +/- 1.5ft) (calibrating calbe > 5M)
Shipment accuracy: 5% (+/-0.5M or +/- 1.5ft). (AMP&T Class 5 Cable)
Display: Meters or foot.

Length calibration:
User can set calibration factor by himself with a given length cable. The length of calibrating cable is more than 5M.

Wire Sequence and Locating Cable error:
Check errors such as open circuit, short circuit, reverse connection, cross-over or cross-talk interference.

Locating Cable:
8 far-end passive test jack

Automatic Time-delay Shut Off Time:
The tester does not operate for 30 minutes.

Package Include:
1 x cable tester

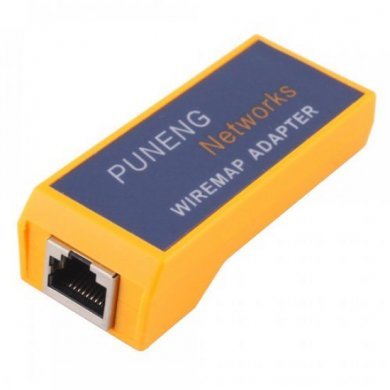

1 x remote
1 x user manual
