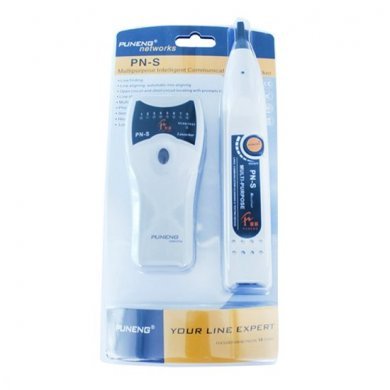

PN-S Puneng Kit Localizador de Cabos Rede e Telefone

Condição de PN-S:    Novo em embalagem comercial

Garantia  de  PN-S:     12 meses direto com a Net Computadores

Description
PN-S, which is a multifunctional communication line finder adopts unique data transmission technique. It is of high quality and excellent performance and characterized by easy use, promptness and accuracy. It is an essential tool for communication line installment and maintenance made by engineering technicians. It is widely applied to telephone system, computer networks and situation using metal line with low voltage circuit.
Features
Cable Tester for UTP STP RJ45(manual switch)
Automatic efficient scan for the miss wiring, disorder cable, open and short circuit
TEL BNC test available(Adapter needed)
Remotely test cable up to 1000 ft in length(remote kit included)
Protective power switch for low power consumption
High quality protecive case provides more secure protection
Judge continuity of the cables or wires
Track the cables or wires, and diagnose the break point
Receiver the tone signal on the cables or wires(telephone line)
Identify the state in the working telephone line(clear ring, busy)
Send a single solid tone or a dual alternating tone to the object cables orwires


Item Specifications
Main Function Tracing and testing cable
Tracking Type IEEE10Base-T, EIA/TIA568A, EIA/TIA568B, AT&T258A, TokenRing, etc.
UTP Network Cables, 4P4C 4P2C Telephone Cables and other Cables
Testing Type UTP/STP/FTP RJ45(8P8C)
Other Function LED Flash and Loud Speaker
Power 9V Alkaline Battery
The max working current Tester ≤20mA
Receiver ≤50mA
Signal transmission format Muti-frequency impulse
Signal output electric status 8Vp-p
Distance of signal transmission ≥3km
Display Visible LED display provides operation status
Appearance dimension Emitter 136*62.3*30.8mm
Receiver 210*35.3*30mm
Whole Set 250*140*45mm


Package Including
·1 x Cable Transmitter
·1 x Cable Receiver/Tracker
·2 x RJ45 Cable
·2 x RJ11 Cable
·1 x RJ-11 adaptive to RJ-45 adapter
·1 x Cable with crocodile clamp
·1 x Earphone
·1 x Instruction manual
