Single Port 10/100/1000Mbps
R$ 859,00
à vista no Pix ou Boleto
ou R$ 903,33 em 1x no cartão (via site)
ou R$ 953,51 no cartão em até 10x sem juros (apenas na loja física)
R$ 859,00
à vista no Pix ou Boleto
R$ 903,33
em 1x no cartão (via site)
R$ 953,51 no cartão
em até 10x sem juros
(apenas na loja física)
Condição:
Novo em embalagem comercial
Garantia:
12 meses Assist. Técnica do Fabricante
NCM: 85176294
Condição de POE-172: Novo em embalagem comercial
Garantia de POE-172: 12 meses Assist. Técnica do Fabricante
| Hardware Specifications | |
|---|---|

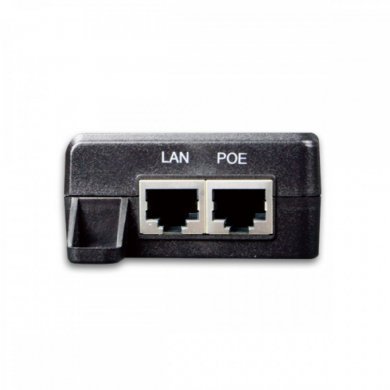

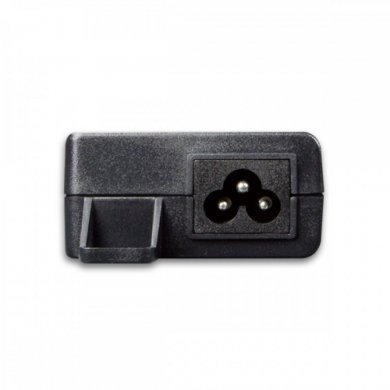

| Interface | LAN: 1 x RJ45 STP, Data Input Port PoE: 1 x RJ45 STP, Data Power Output Port AC Connector: 1 x AC input power socket, IEC-320 C6 |
| Network Cable | Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af/at PoE (15W/30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |

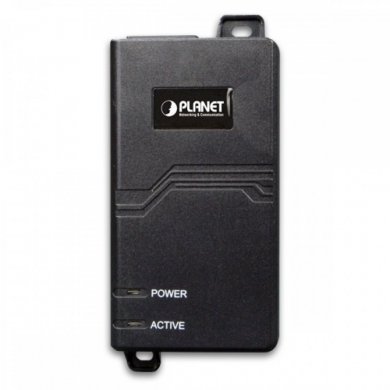

| LED Indicator | System: Power x 1 (green) PoE Port: Active, PoE ready/in-use x 1 (green) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 115 x 62.5 x 31 mm |
| Weight | 235g |
| Unit Output Voltage | DC 56V, 1.08A |
| Power Requirements | 100-240V AC @50/60Hz, 1.5A max. |
| Power Consumption | 60 watts max. |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Power over Ethernet | |
| PoE Standard | Ultra PoE over 4-pair UTP cable, IEEE 802.3at Power over Ethernet Plus End-span/Mid-span PSE |
| PoE Power Supply Type | End-span Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 ( ), 3/6 (-) Pair 2 Mid-span: 4/5 ( ), 7/8 (-) |
| PoE Power Output | DC 56V/60-watt PoE via 4-pair DC 56V/30-watt PoE via 2-pair |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Regulatory Compliance | FCC Part 15 Class B, CE |
Maiores detalhes de POE-172 no site do fabricante:
http://www.planet.com.br/02/item/1825-poe-172
Tags de POE-172: POE-172, POE 172, POE172, injetor planet, poe173, poe-173, planet poe, poe 173, power over ethernet, injetor gigabit single port, Ethernet Injector, POE-172 ultra poe injector, Power over Ethernet, energia e dados RJ45, Single-Port 10/100/1000Mbps Ultra PoE Injector 60 Watts, internal PWR, PLANET Technology, fonte planet poe, fonte POe Gigabit, fonte Poe giga, injetor gigabit poe, POE-173, PLANET Technology

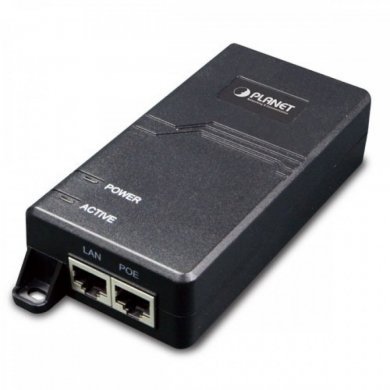

POE-172 Planet Ultra PoE injector Gigabit 60 watts Single Port 10/100/1000Mbps
Condição de POE-172:
Novo em embalagem comercial
Garantia de POE-172:
12 meses Assist. Técnica do Fabricante
| Hardware Specifications | |
|---|---|
| Interface | LAN: 1 x RJ45 STP, Data Input Port PoE: 1 x RJ45 STP, Data Power Output Port AC Connector: 1 x AC input power socket, IEC-320 C6 |
| Network Cable | Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af/at PoE (15W/30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
| LED Indicator | System: Power x 1 (green) PoE Port: Active, PoE ready/in-use x 1 (green) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 115 x 62.5 x 31 mm |
| Weight | 235g |
| Unit Output Voltage | DC 56V, 1.08A |
| Power Requirements | 100-240V AC @50/60Hz, 1.5A max. |
| Power Consumption | 60 watts max. |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Power over Ethernet | |
| PoE Standard | Ultra PoE over 4-pair UTP cable, IEEE 802.3at Power over Ethernet Plus End-span/Mid-span PSE |
| PoE Power Supply Type | End-span Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 ( ), 3/6 (-) Pair 2 Mid-span: 4/5 ( ), 7/8 (-) |
| PoE Power Output | DC 56V/60-watt PoE via 4-pair DC 56V/30-watt PoE via 2-pair |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Regulatory Compliance | FCC Part 15 Class B, CE |
Maiores detalhes de POE-172 no site do fabricante:
http://www.planet.com.br/02/item/1825-poe-172
Tags de POE-172: POE-172, POE 172, POE172, injetor planet, poe173, poe-173, planet poe, poe 173, power over ethernet, injetor gigabit single port, Ethernet Injector, POE-172 ultra poe injector, Power over Ethernet, energia e dados RJ45, Single-Port 10/100/1000Mbps Ultra PoE Injector 60 Watts, internal PWR, PLANET Technology, fonte planet poe, fonte POe Gigabit, fonte Poe giga, injetor gigabit poe, POE-173, PLANET Technology
