POE-173 Planet Ultra PoE injector Gigabit 60 watts

Single Port 10/100/1000Mbps

POE-173 - PLANET Technology
POE-173 Planet Ultra PoE injector Gigabit 60 watts
POE-173 Planet Ultra PoE injector Gigabit 60 watts
clique para ampliar
*As imagens podem ser ilustrativas
POE-173 Planet Ultra PoE injector Gigabit 60 watts
POE-173 Planet Ultra PoE injector Gigabit 60 watts
POE-173 Planet Ultra PoE injector Gigabit 60 watts
POE-173 Planet Ultra PoE injector Gigabit 60 watts

R$ 830,00

à vista no Pix ou Boleto

ou R$ 873,68 em 1x no cartão (via site)

ou R$ 922,22 no cartão em até 10x sem juros (apenas na loja física)

R$ 830,00

à vista no Pix ou Boleto

R$ 873,68
em 1x no cartão (via site)

R$ 922,22 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses Assist. Técnica do Fabricante

NCM:
85176294

R$ 830,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 85176294

POE-173 Planet Ultra PoE injector Gigabit 60 watts
Single Port 10/100/1000Mbps

Condição de POE-173:    Novo em embalagem comercial

Garantia  de  POE-173:     12 meses Assist. Técnica do Fabricante



PLANET POE-173 Ultra Power over Ethernet Injector provides a maximum of up to 60-watt power and high speed Ethernet data connection anywhere in your network infrastructure. PLANET Ultra Power over Ethernet solution contains two brand-new products:
-- POE-173: 60-watt Ultra Power over Ethernet Injector
-- POE-171S: 12V / 19V / 24V DC Power over Ethernet Splitter

Quick and Easy Gigabit Ultra Power PoE Network Deployment
The POE-173 is a Single-Port, Ultra Power over Ethernet Injector with a maximum of up to 60 watts of power output over Ethernet cables. It is designed specifically to meet the demand for growing higher power required network equipment such as:
-- PTZ Speed Dome
-- AIO(All-in-One) touch PC
-- Remote digital signage display
-- Other network devices that need higher power to work normally.

The POE-173 delivers the Ethernet digital data with DC 50V power over the twisted pair cables as a 60-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter - the POE-171S - will separate the digital data and the power into three optional outputs (12V / 19V / 24V DC) with distance up to 100 meters.

60 watts of Power over 4-Pair UTP
The POE-173 and POE-171S Ultra PoE solution use the same cabling standard as IEEE 802.3at / af PoE. Instead of delivering power over 2-pair twisted UTP - be it End-Span (Pin 1,2,3 and 6) or Mid-Span (Pin 4,5,7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat5e / Cat6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.


PoE Standard
IEEE 802.3af
(802.3at Type 1)

IEEE 802.3at
(802.3at Type 2)

Ultra PoE
(POE-173)

Maximum Power
delivered by PSE
15.4 watts
30 watts
60 watts
Power Available at PD
12.95 watts
25.5 watts
50 watts
Voltage Range
48V
50~57V
50V
Twisted Pair Used
2-Pair
4-Pair
Supported Modes
End-Span or Mid-Span
End-Span Mid-Span
Supported Cabling
Cat 3/5/5e/6
Cat5e/6


All-in-One and Compact Size Design

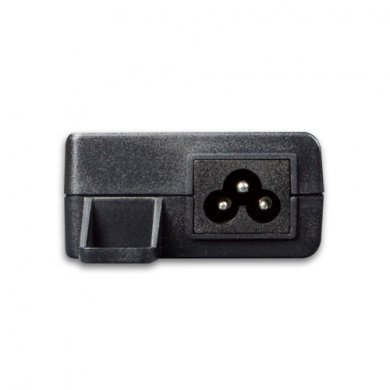

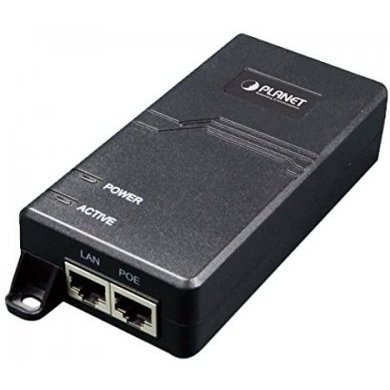

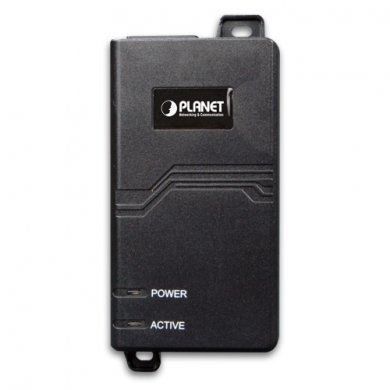

With concepts of Easy to install-, -Plug and Play- and Simple troubleshooting for business and home users, the POE-173 is an all-in-one, single-port PoE injector with internal power supply. In the compact size housing, the POE-173 provides one 100-240V AC input socket on its front panel, two LEDs (System POWER and PoE ACTIVE ) on the top side and two RJ-45 ports (POE port and LAN port) on the rear panel. Simply plug in the Ethernet cables and power cord, and the POE-173 is ready to provide high speed network communication and ultra power PoE injector s simultaneously with no need of software configuration.


Quick and Easy Cabling Installation for PoE Network Deployment

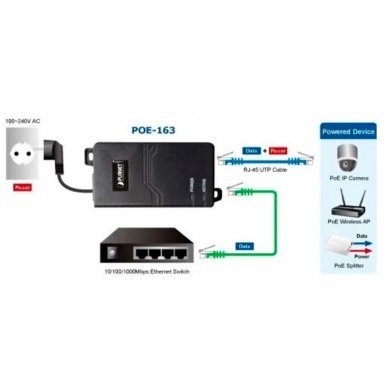

Backward compatible with both 802.3af and 802.3at PoE standards, the POE-173 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-173 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.


Maiores detalhes de POE-173 no site do fabricante:
http://www.planet.com.br/02/item/1825-poe-172


Tags de POE-173: POE-172, POE 172, POE172, injetor planet, poe173, poe-173, planet poe, poe 173, power over ethernet, injetor gigabit single port, Ethernet Injector, POE-172 ultra poe injector, Power over Ethernet, energia e dados RJ45, Single-Port 10/100/1000Mbps Ultra PoE Injector 60 Watts, internal PWR, PLANET Technology, fonte planet poe, fonte POe Gigabit, fonte Poe giga, injetor gigabit poe, =POE-173, =POE-173, PLANET Technology

POE-173 Planet Ultra PoE injector Gigabit 60 watts Single Port 10/100/1000Mbps

Condição de POE-173:
Novo em embalagem comercial

Garantia  de  POE-173:
12 meses Assist. Técnica do Fabricante


PLANET POE-173 Ultra Power over Ethernet Injector provides a maximum of up to 60-watt power and high speed Ethernet data connection anywhere in your network infrastructure. PLANET Ultra Power over Ethernet solution contains two brand-new products:
-- POE-173: 60-watt Ultra Power over Ethernet Injector
-- POE-171S: 12V / 19V / 24V DC Power over Ethernet Splitter

Quick and Easy Gigabit Ultra Power PoE Network Deployment
The POE-173 is a Single-Port, Ultra Power over Ethernet Injector with a maximum of up to 60 watts of power output over Ethernet cables. It is designed specifically to meet the demand for growing higher power required network equipment such as:
-- PTZ Speed Dome
-- AIO(All-in-One) touch PC
-- Remote digital signage display
-- Other network devices that need higher power to work normally.

The POE-173 delivers the Ethernet digital data with DC 50V power over the twisted pair cables as a 60-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter - the POE-171S - will separate the digital data and the power into three optional outputs (12V / 19V / 24V DC) with distance up to 100 meters.

60 watts of Power over 4-Pair UTP
The POE-173 and POE-171S Ultra PoE solution use the same cabling standard as IEEE 802.3at / af PoE. Instead of delivering power over 2-pair twisted UTP - be it End-Span (Pin 1,2,3 and 6) or Mid-Span (Pin 4,5,7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat5e / Cat6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.


PoE Standard
IEEE 802.3af
(802.3at Type 1)

IEEE 802.3at
(802.3at Type 2)

Ultra PoE
(POE-173)

Maximum Power
delivered by PSE
15.4 watts
30 watts
60 watts
Power Available at PD
12.95 watts
25.5 watts
50 watts
Voltage Range
48V
50~57V
50V
Twisted Pair Used
2-Pair
4-Pair
Supported Modes
End-Span or Mid-Span
End-Span Mid-Span
Supported Cabling
Cat 3/5/5e/6
Cat5e/6


All-in-One and Compact Size Design
With concepts of Easy to install-, -Plug and Play- and Simple troubleshooting for business and home users, the POE-173 is an all-in-one, single-port PoE injector with internal power supply. In the compact size housing, the POE-173 provides one 100-240V AC input socket on its front panel, two LEDs (System POWER and PoE ACTIVE ) on the top side and two RJ-45 ports (POE port and LAN port) on the rear panel. Simply plug in the Ethernet cables and power cord, and the POE-173 is ready to provide high speed network communication and ultra power PoE injector s simultaneously with no need of software configuration.


Quick and Easy Cabling Installation for PoE Network Deployment
Backward compatible with both 802.3af and 802.3at PoE standards, the POE-173 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-173 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.


Maiores detalhes de POE-173 no site do fabricante:
http://www.planet.com.br/02/item/1825-poe-172


Tags de POE-173: POE-172, POE 172, POE172, injetor planet, poe173, poe-173, planet poe, poe 173, power over ethernet, injetor gigabit single port, Ethernet Injector, POE-172 ultra poe injector, Power over Ethernet, energia e dados RJ45, Single-Port 10/100/1000Mbps Ultra PoE Injector 60 Watts, internal PWR, PLANET Technology, fonte planet poe, fonte POe Gigabit, fonte Poe giga, injetor gigabit poe, =POE-173, =POE-173, PLANET Technology
