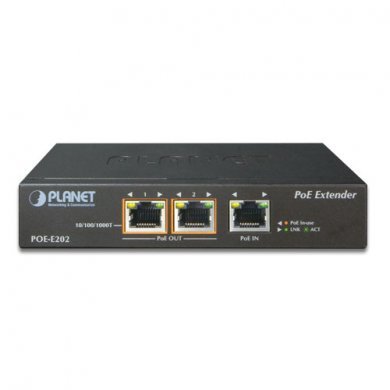

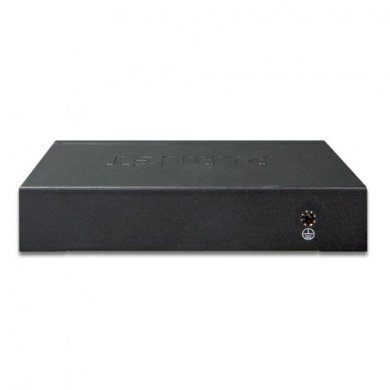

POE-E202 Planet Extensor POE Gigabit 1 porta 802.3at POE+

Name: POE-E202 Planet Extensor POE Gigabit 1 porta 802.3at POE+
Brand: PLANET Technology
SKU: POE-E202
Price: 1199.00 BRL
Availability: InStock

para 2 portas 802.3af/at 10/100/1000BASE-T

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 1.199,00

à vista no Pix ou Boleto

ou R$ 1.262,11 em 1x no cartão (via site)

ou R$ 1.332,22 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.199,00

à vista no Pix ou Boleto

R$ 1.262,11
em 1x no cartão (via site)

R$ 1.332,22 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176294

R$ 1.199,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176294

Cotação PJ mais de uma unidade

Indicar POE-E202

POE-E202 Planet Extensor POE Gigabit 1 porta 802.3at POE+
para 2 portas 802.3af/at 10/100/1000BASE-T

Condição de POE-E202: Novo em embalagem comercial

Garantia de POE-E202: 12 meses direto com a Net Computadores

PoE Solution for Breaking RJ45 100m Limitation
PLANET POE-E202 is a 1-port PoE to 2-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The POE-E202 can obtain a maximum of 30-watt PoE power from PoE input port and supplies a maximum of 25-watt PoE power budget for two PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to two 200m powered devices at the same time.
The POE-E202 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

Interfaces
PoE IN	1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE -Data DC power- in auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE OUT	2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE -Data DC power- out auto MDI/MDI-X, auto-negotiation RJ45 connector
Power over Ethernet
PoE Standard	-PoE In- Port IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD Per -PoE Out- Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE
PoE Power Supply Type	End-span (Type A)
PoE Power	-PoE In- Port 52~56V DC, max. 30.8 watts Per -PoE Out- Port 44~55V DC, max. 25 watts
Power Pin Assignment	-PoE In- Port 1/2 ( ), 3/6 (-); 4/5 ( ), 7/8 (-) Per -PoE Out- Port 1/2 ( ), 3/6 (-)
Hardware Specifications
Data Rate	10/100/1000Mbps
MAC Address Table	2K
Data Buffer	2Mbits
Switch Architecture	Store-and-Forward
Switch Fabric	6Gbps
Switch Throughput	4.46Mpps @ 64 bytes
Jumbo Frame	10KB
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
LED Indicators	-PoE In- Port: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) -PoE Out- Port 1: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) -PoE Out- Port 2: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green)
Protection	ESD (Ethernet): 2KV (TBD) Surge (EFT for power) : 2KV (TBD)
Enclosure	Metal
Installation	Wall mountable
Dimensions (W x D x H)	140 x 77 x 28 mm
Weight	234g
Power Requirements	IEEE 802.3at compliant with voltage within 52V-56V DC
Power Consumption	1.6 watts/5.5BTU (System on with PoE input) 2.2 watts/7.5BTU (Ethernet full loading without PoE ) 36 watts/122.8BTU (Full loading with PoE )
Network Cable	10BASE-T: 4-pair UTP Cat. 5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat. 5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat. 5e, 6, up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, 328ft)
Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standard Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Ordering Information
POE-E202	1-port 802.3at PoE to 2-port 802.3af/at Gigabit PoE Extender

Maiores detalhes de POE-E202 no site do fabricante:
https://www.planet.com.tw/en/product/poe-e202

Tags de POE-E202: POE-E202, POE E202, POEE202, 1-Port 802.3at PoE+ to 2-Port 802.3af/at Gigabit PoE Extender, Extensor Planet POE, Extensor POE Planet, Extensor poe 2 portas, PLANET Technology

POE-E202 Planet Extensor POE Gigabit 1 porta 802.3at POE+ para 2 portas 802.3af/at 10/100/1000BASE-T

Condição de POE-E202:
Novo em embalagem comercial

Garantia de POE-E202:
12 meses direto com a Net Computadores

Interfaces
PoE IN	1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE -Data DC power- in auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE OUT	2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE -Data DC power- out auto MDI/MDI-X, auto-negotiation RJ45 connector
Power over Ethernet
PoE Standard	-PoE In- Port IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD Per -PoE Out- Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE
PoE Power Supply Type	End-span (Type A)
PoE Power	-PoE In- Port 52~56V DC, max. 30.8 watts Per -PoE Out- Port 44~55V DC, max. 25 watts
Power Pin Assignment	-PoE In- Port 1/2 ( ), 3/6 (-); 4/5 ( ), 7/8 (-) Per -PoE Out- Port 1/2 ( ), 3/6 (-)
Hardware Specifications
Data Rate	10/100/1000Mbps
MAC Address Table	2K
Data Buffer	2Mbits
Switch Architecture	Store-and-Forward
Switch Fabric	6Gbps
Switch Throughput	4.46Mpps @ 64 bytes
Jumbo Frame	10KB
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
LED Indicators	-PoE In- Port: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) -PoE Out- Port 1: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) -PoE Out- Port 2: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green)
Protection	ESD (Ethernet): 2KV (TBD) Surge (EFT for power) : 2KV (TBD)
Enclosure	Metal
Installation	Wall mountable
Dimensions (W x D x H)	140 x 77 x 28 mm
Weight	234g
Power Requirements	IEEE 802.3at compliant with voltage within 52V-56V DC
Power Consumption	1.6 watts/5.5BTU (System on with PoE input) 2.2 watts/7.5BTU (Ethernet full loading without PoE ) 36 watts/122.8BTU (Full loading with PoE )
Network Cable	10BASE-T: 4-pair UTP Cat. 5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat. 5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat. 5e, 6, up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, 328ft)
Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standard Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
