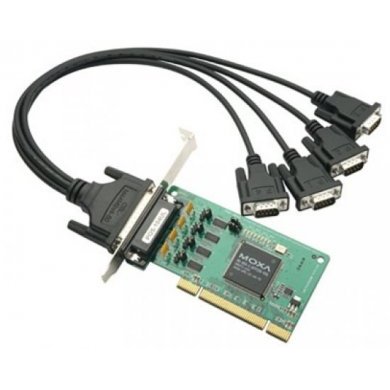

The POS-104UL is a smart, 4-port Universal PCI serial board designed for POS and ATM applications, and for use by industrial automation system manufacturers and system integrators.

The POS-104UL is compatible with all major operating systems. In addition, each of the board?s 4 RS-232 serial ports supports data rates up to 921.6 Kbps, and provides full modem control signals to ensure compatibility with a wide range of serial peripherals. The POS-104UL supplies 5 or 12 volts of power from each serial port, and works with both 3.3V and 5V PCI buses, making the board suitable for installation in most PC servers.

Features
Over 800 Kbps data throughput, for top performance
Power options for each port: 5V (output), 12V (output), RI (input)
Serial port power from bus or power supply
921.6 Kbps maximum baudrate for super fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Compatible with 3.3/5V PCI and PCI-X
MD1 Low Profile board, suitable for compact-sized PCs
Drivers provided for Windows (7 x86/x64, XP/2003/Vista/2008 x86/x64, 2000, 9X/ME/NT), Windows XP Embedded, Windows CE 5.0/6.0, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO OpenServer 5/6, and UnixWare 7
15 KV ESD protection on the board
Wide temperature model available for -40 to 85C environments

Maiores detalhes de POS-104UL no site do fabricante:
http://www.moxa.com/product/POS-104UL.htm

Tags de POS-104UL: POS-104UL, POS104UL, POS 104UL, POS-104UL-DB9M, CBL-M44M9x4-50, POS-104UL-T, MOXA

POS-104UL Placa Moxa Serial 4 Portas RS232 UPCI Portas Energizadas com 5V/12V (Cabo não incluso)

Condição de POS-104UL:
Novo em embalagem comercial

Garantia de POS-104UL:
12 meses direto com a Net Computadores

The POS-104UL is a smart, 4-port Universal PCI serial board designed for POS and ATM applications, and for use by industrial automation system manufacturers and system integrators.

The POS-104UL is compatible with all major operating systems. In addition, each of the board-s 4 RS-232 serial ports supports data rates up to 921.6 Kbps, and provides full modem control signals to ensure compatibility with a wide range of serial peripherals. The POS-104UL supplies 5 or 12 volts of power from each serial port, and works with both 3.3V and 5V PCI buses, making the board suitable for installation in most PC servers.

Features
Over 800 Kbps data throughput, for top performance
Power options for each port: 5V (output), 12V (output), RI (input)
Serial port power from bus or power supply
921.6 Kbps maximum baudrate for super fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Compatible with 3.3/5V PCI and PCI-X
MD1 Low Profile board, suitable for compact-sized PCs
Drivers provided for Windows (7 x86/x64, XP/2003/Vista/2008 x86/x64, 2000, 9X/ME/NT), Windows XP Embedded, Windows CE 5.0/6.0, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO OpenServer 5/6, and UnixWare 7
15 KV ESD protection on the board
Wide temperature model available for -40 to 85C environments

Maiores detalhes de POS-104UL no site do fabricante:
http://www.moxa.com/product/POS-104UL.htm

Tags de POS-104UL: POS-104UL, POS104UL, POS 104UL, POS-104UL-DB9M, CBL-M44M9x4-50, POS-104UL-T, MOXA
