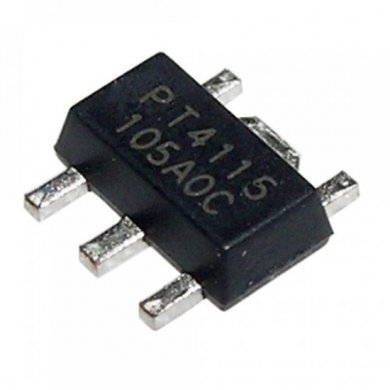

PT4115 CI LED Driver Power SOT89 (10 unidades)

Name: PT4115 CI LED Driver Power SOT89 (10 unidades)
Brand: PowTech
SKU: PT4115
Price: 20.00 BRL
Availability: InStock

30V 1.2 A

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 20,00

à vista no Pix ou Boleto

ou R$ 20,23 em 1x no cartão (via site)

ou R$ 21,36 no cartão em até 10x sem juros (apenas na loja física)

R$ 20,00

à vista no Pix ou Boleto

R$ 20,23
em 1x no cartão (via site)

R$ 21,36 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem antiestática

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

Condição:
Novo em embalagem antiestática

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Cotação PJ mais de uma unidade

Indicar PT4115

PT4115 CI LED Driver Power SOT89 (10 unidades)
30V 1.2 A

Condição de PT4115: Novo em embalagem antiestática

Garantia de PT4115: 3 meses direto com a Net Computadores

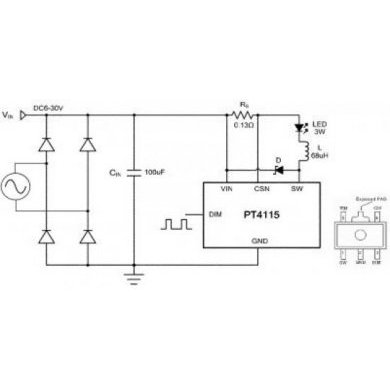

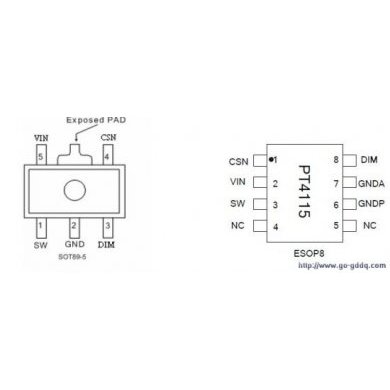

PT4115 is a inductor buck converter of continuous conduction mode, used to drive one or multiple series connected LED design, one voltage is more efficient than whole LED voltage chain. The device is between the 6V and 30V to input power, and provided with an external adjustable output current up to 1.2A.In the power supply voltage and the external components of the different, PT4115 offers more than 30 watts of output power. The PT4115 includes power switch and a high output current detection circuit, and used for an external resistor to set the nominal average output current, and a dedicated DIM input, no matter what DC voltage or pulse light modulation range. Applying a series of voltage of 0.3V or lower DIM turns off the output pins, and switch a low current standby equipment. The PT4115 is available in SOT89 5 package Read At present, PT4115 practical lighting module can provide three driver modules of 1 piece of 1W (green), 3 piece of 1W (blue) and 1 piece of 3W (red). The sample module can do switch test with halogen bulb for 100000 times, in the same brightness of halogen lamp, power consumption can be reduced by half. Features 1 Simple low parts count 2 Wide input voltage range: 8V to 30V 3 Up to 1.2A output current 4 Single needle opening / closing switch and the use of DC voltage or PWM brightness to control 5 Up to 1MHz switch frequency 6 Typical 5% output current accuracy 7 The inner open LED protection 8 High efficiency (up to 97%). 9 High side current detection 10 The hysteresis control: no compensation 11 Adjustable constant current of LED Application 1 Low voltage halogen replace light-emitting diode 2 Automotive lighting 3 Low voltage industry lighting 4 Days preparing lighting 5 The luminous sign 6 The lighting is suitable for SELV 7 The backlight of LCD TV

Maiores detalhes de PT4115 no site do fabricante:
https://people.xiph.org/~xiphmont/thinkpad/PT4115E.pdf

Tags de PT4115: PT4115, D1418, SOT89-5 IC LED drive power, driver para LED, SOT-89-5, CI Driver de LED, Transistor Driver LED, Transistor LED Driver, CI Driver LED, PowTech, PowTech
