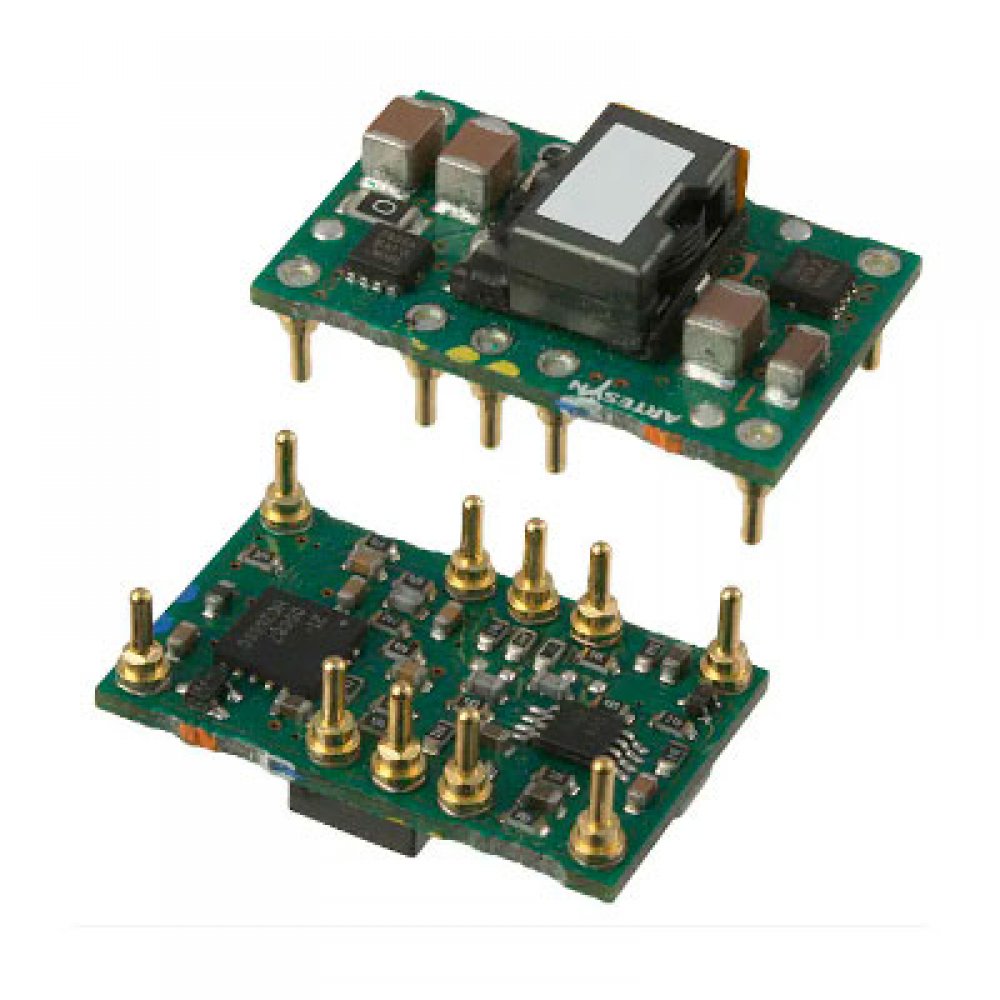

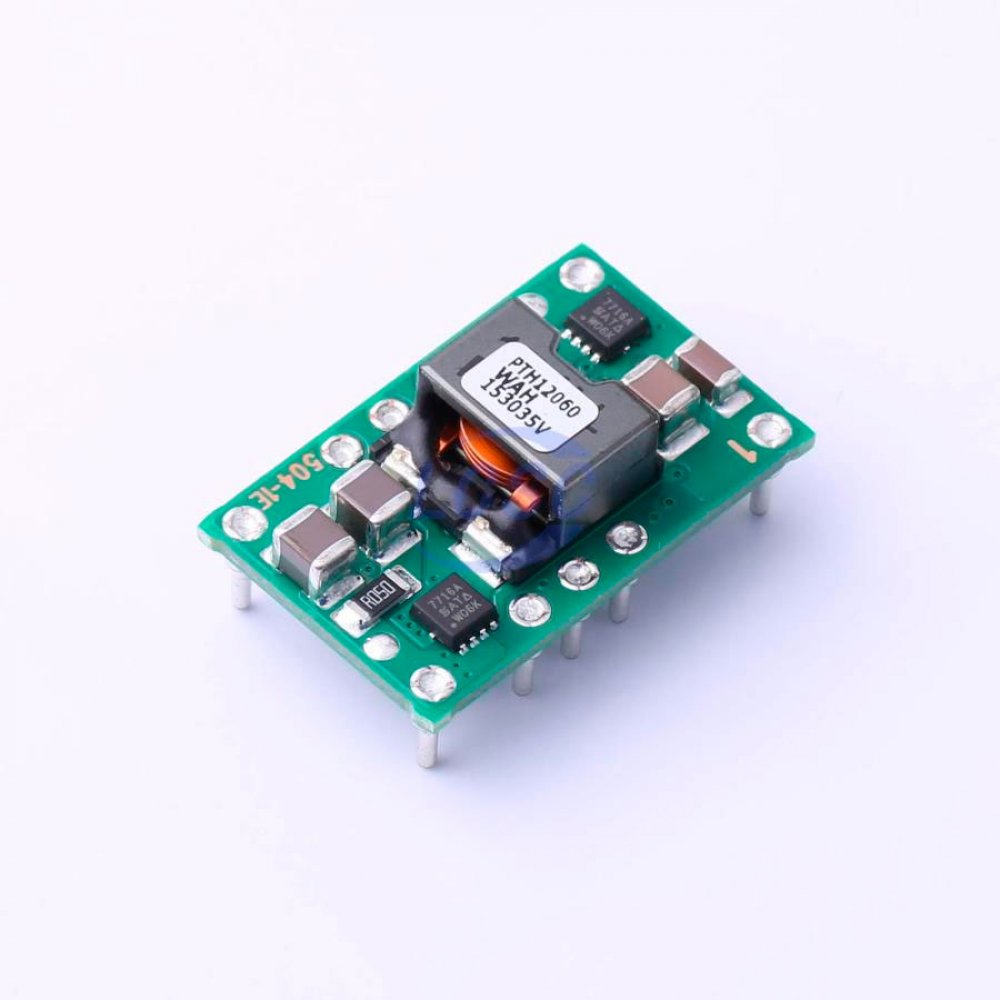

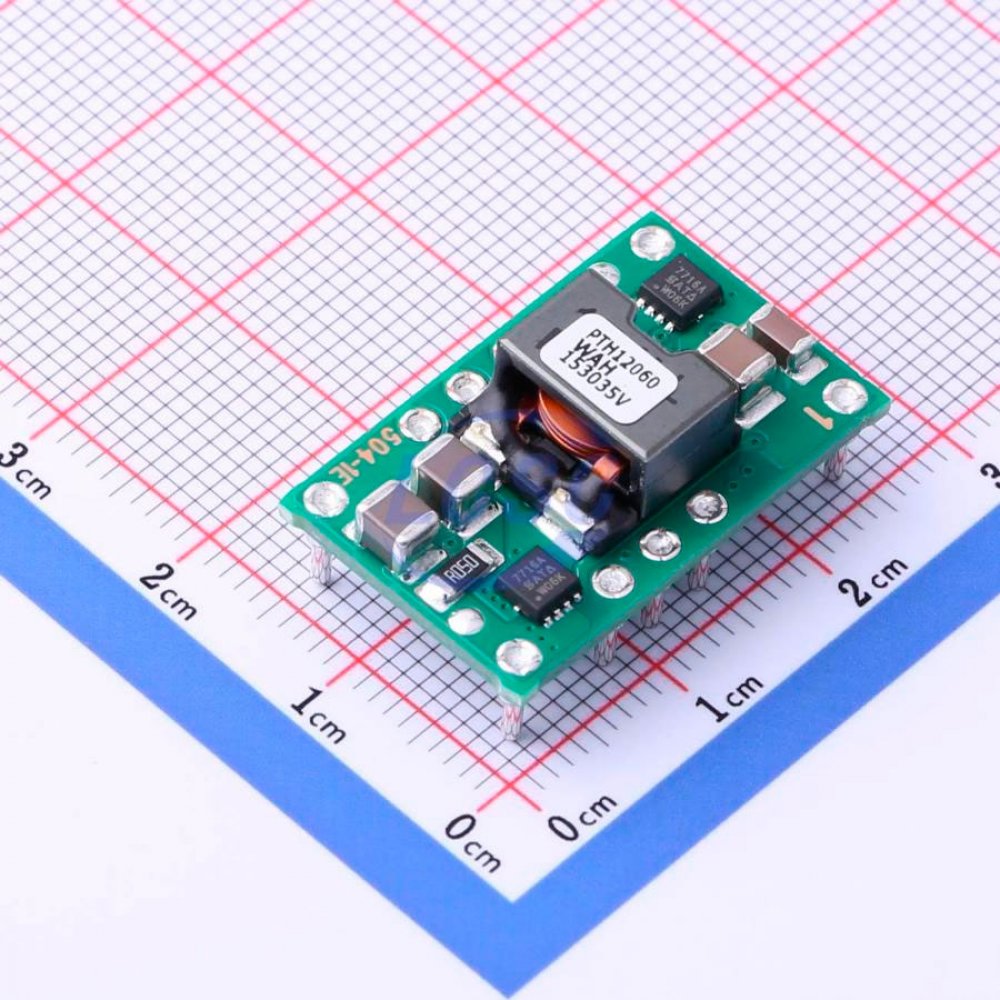

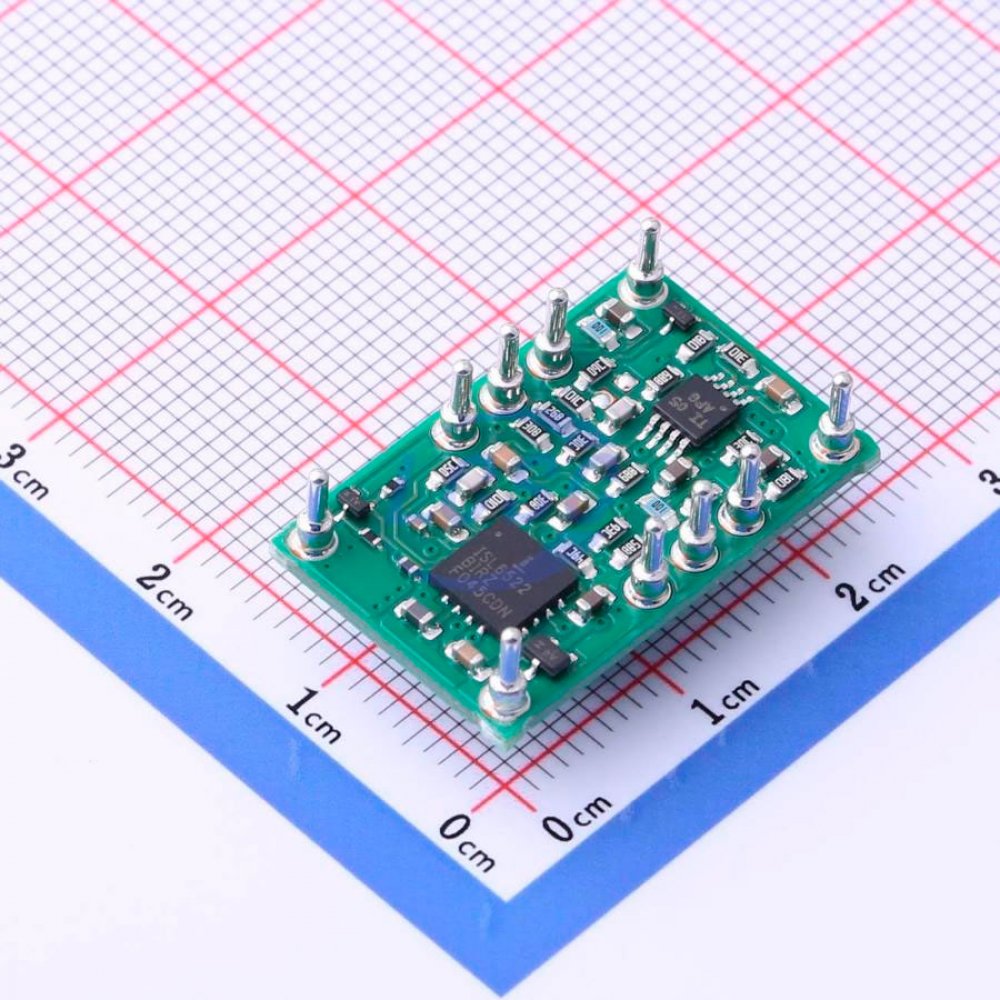

PTH12060WAH CONVERSOR ADJ DC/DC 1.2V A 5.5V 10A ENTRADA 12VCC

*As imagens podem ser ilustrativas

CONVERSOR ADJ DC/DC 1.2V A 5.5V 10A ENTRADA 12VCC

em estoque, envio imediato

R$ 124,00

à vista no Pix ou Boleto

ou R$ 130,52 em 1x no cartão (via site)

ou R$ 137,77 no cartão em até 10x sem juros (apenas na loja física)

R$ 124,00

à vista no Pix ou Boleto

R$ 130,52
em 1x no cartão (via site)

R$ 137,77 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem antiestática

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 124,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar PTH12060WAH

PTH12060WAH CONVERSOR ADJ DC/DC 1.2V A 5.5V 10A ENTRADA 12VCC

Condição de PTH12060WAH: Novo em embalagem antiestática

Garantia de PTH12060WAH: 3 meses direto com a Net Computadores

The PTH12060 series is a non-isolated power module, and part of a new class of complete dc/dc converters from Texas Instruments. These modules are small in size, and are an alternative for applications requiring up to 10A of load current. The small footprint, (1 inch 0.62 inch) and industry leading features makes this module suitable for space conscious digital systems that incorporate multiple processors.

This series of modules operate from a 12V input bus voltage to provide step-down power conversion to a wide range of output voltages. The output voltage of the W-suffix device may be set to any voltage over the adjust range, 1.2 V to 5.5 V. The L-suffix device has an adjustment range of 0.8 V to 1.8 V. The output voltage is set within the adjust range using a single external resistor.

This product includes Auto-Track- Sequencing. Auto-Track simplifies the task of supply voltage sequencing in a power system, by enabling modules to track each other, or any other external voltage, during power up and power down. Other features include an on/off inhibit and margin up/down controls. An output voltage sense ensures tight load regulation. Non-latching overcurrent trip protects against load faults

APPLICATIONS
- Complex Digital Systems

FEATURES
- Up to 10-A Output Current
- 12-V Input Voltage
- Wide-Output Voltage Adjust (1.2 V to 5.5 V/(0.8 V to 1.8 V)
- Efficiencies up to 95% - 225 W/in3 Power Density
- Output Voltage Sense
- Margin Up/Down Controls
- Undervoltage Lockout
- Auto-Track- Sequencing
- Pre-Bias Start-up Capability using On/Off Inhibit
- Output Overcurrent Protection (Non-latching, Auto-Reset)
- Operating Temperature: -40C to 85C
- Safety Agency Approvals: UL/IEC/CSA C22.2 60950-1
- Point-of-Load Alliance (POLA-) Compatible

Maiores detalhes de PTH12060WAH no site do fabricante:
https://www.ti.com/lit/ds/symlink/pth12060l.pdf?ts=1670242784686&ref_url=https%2
