Q14SS Enhance Backplane QuadraPack Q14SS, 4 Baias de 2.5 para discos SA

Form Factor: 5.25, Disk Interface: SAS (Serial Attached SCSI), Host Interface (Available I/O): 4 S

Q14SS Enhance Backplane QuadraPack Q14SS, 4 Baias de 2.5 para discos SA

*As imagens podem ser ilustrativas

Enhance Backplane QuadraPack Q14SS, 4 Baias de 2.5 para discos SA

avise-me quando disponível

R$ 811,00

à vista no Pix ou Boleto

ou R$ 852,77 em 1x no cartão (via site)

ou R$ 900,15 no cartão em até 10x sem juros (apenas na loja física)

R$ 811,00

à vista no Pix ou Boleto

R$ 852,77
em 1x no cartão (via site)

R$ 900,15 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 0

Cotação PJ mais de uma unidade

Indicar Q14SS

Q14SS Enhance Backplane QuadraPack Q14SS, 4 Baias de 2.5 para discos SA
Form Factor: 5.25, Disk Interface: SAS (Serial Attached SCSI), Host Interface (Available I/O): 4 S

Condição de Q14SS: Novo em embalagem comercial

Garantia de Q14SS: 12 meses direto com a Net Computadores

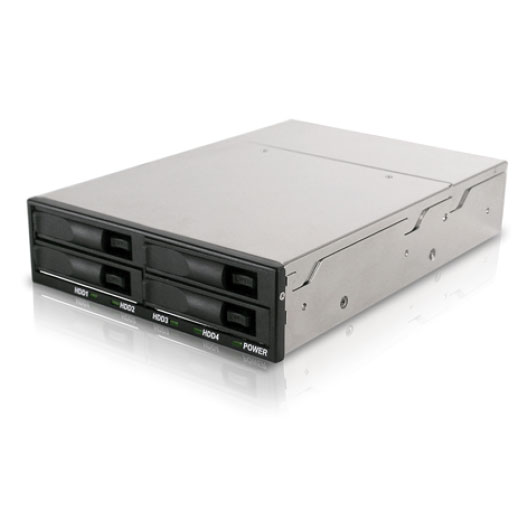

Enhance Technology QuadraPack Q14SS Multi-Disk Storage Backplanes, for 2.5" Serial Attached SCSI Disks

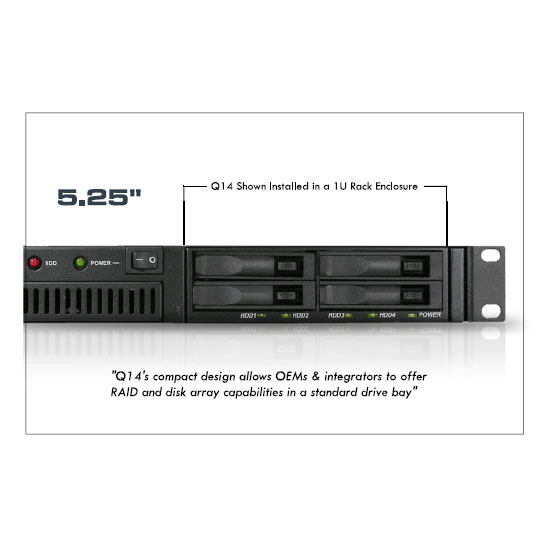

As storage trends evolve and users look towards emerging connectivity options such as SAS and SATA II 3Gbps, Enhance Technology has again raised the bar with the release of QuadraPack Q14. Following in the success of the 3.5" product line, the QuadraPack Q14 is the industrys first removable storage enclosure designed to house four (4) 2.5" hard drives and is to be mounted in a single 5.25" drive bay which typically is whats left within a PC, server, or rackmount for device expansion.

Enhance Technology has worked closely with leading hard drive manufacturers of enterprise-grade 2.5" disk drives, such as Fujitsu and Seagate, to develop a non-proprietary 2.5" multi-drive storage backplane designed for next generation dense storage & embedded applications. The modular design and interface options allow OEMs, System Integrators and VARs to offer more capacity with less enclosure real-estate.Built from solid cold-rolled steel and durable ABS materials, the QuadraPack Q14 provides a compact & rugged drive housing well suited for a wide variety of storage applications.

QuadraPack Q14 features a precision crafted multi-layered PCB backplane to ensure high data integrity, and minimize signal degradation. Equipped with a hi-speed 9500RPM double roll ball-bearing cooling fan and operating at temperature less than 40 degrees, , the Q14 can greatly reduce heat build-up, even when deployed with four 10K enterprise SAS disk drives.

Features:

Solid Cold-rolled Steel Construction.

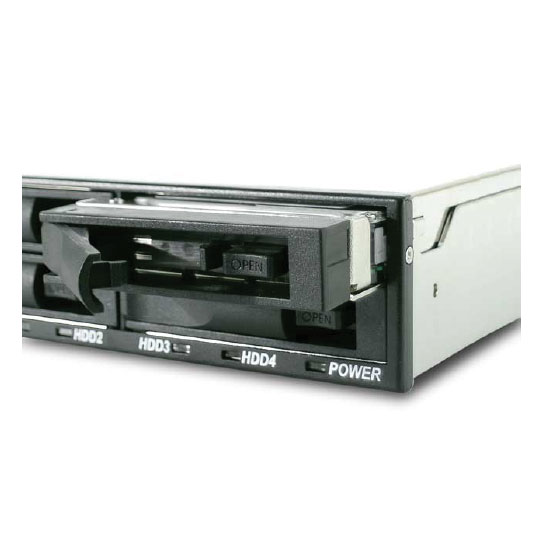

"One-touch" Push Button Tray Lock/Removable Design.

Integrated High-speed Cooling Fan.

Precision Crafted Multi-layered PCB.

Cable-less Drive Connector.

Activity LEDs for HDD Access and Disk Present Notification.

Includes Interconnect Cables and Mounting Hardware.

Validated by leading HBA and HDD manufacturers.

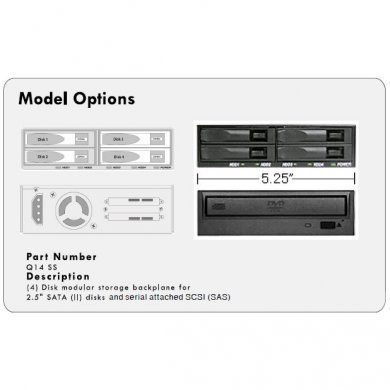

Specifications: Model: Q14SS.
Form Factor: 5.25".
Disk Interface: SAS (Serial Attached SCSI).
Host Interface (Available I/O): 4 SAS channels.
System Fan: One 9500RPM dual roll fan.
Dimensions (LxWxH): 8.25" x 5.25" x 1.5".
Power: Standard 4-pin.

Maiores detalhes de Q14SS no site do fabricante:
http://www.enhance-tech.com/documents/Q14_Datasheet.pdf

Tags de Q14SS: Q14SS, BackPlane e Enclosures, BackPlanes e Acessórios, Enhance Technology, Inc., Storage, Enhance Technology, Inc.

Q14SS Enhance Backplane QuadraPack Q14SS, 4 Baias de 2.5 para discos SA Form Factor: 5.25, Disk Interface: SAS (Serial Attached SCSI), Host Interface (Available I/O): 4 S

Condição de Q14SS:
Novo em embalagem comercial

Garantia de Q14SS:
12 meses direto com a Net Computadores
