QFP85P3040PD000 Transceiver QSFP+ 40GBase-CSR4 MMF 850nm 300m

MPO-12 DOM

QFP85P3040PD000 - SKYLANE Optics
QFP85P3040PD000 Transceiver QSFP+ 40GBase-CSR4 MMF 850nm 300m
*As imagens podem ser ilustrativas
Transceiver QSFP+ 40GBase-CSR4 MMF 850nm 300mTransceiver QSFP+ 40GBase-CSR4 MMF 850nm 300m

R$ 867,00

à vista no Pix ou Boleto

ou R$ 911,93 em 1x no cartão (via site)

ou R$ 962,60 no cartão em até 10x sem juros (apenas na loja física)

R$ 867,00

à vista no Pix ou Boleto

R$ 911,93
em 1x no cartão (via site)

R$ 962,60 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
Lifetime Assist. Técnica do Fabricante

NCM:
85176259

R$ 867,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
Lifetime Assist. Técnica do Fabricante

NCM: 85176259

QFP85P3040PD000 Transceiver QSFP+ 40GBase-CSR4 MMF 850nm 300m
MPO-12 DOM

Condição de QFP85P3040PD000:    Novo em embalagem comercial

Garantia  de  QFP85P3040PD000:     Lifetime Assist. Técnica do Fabricante

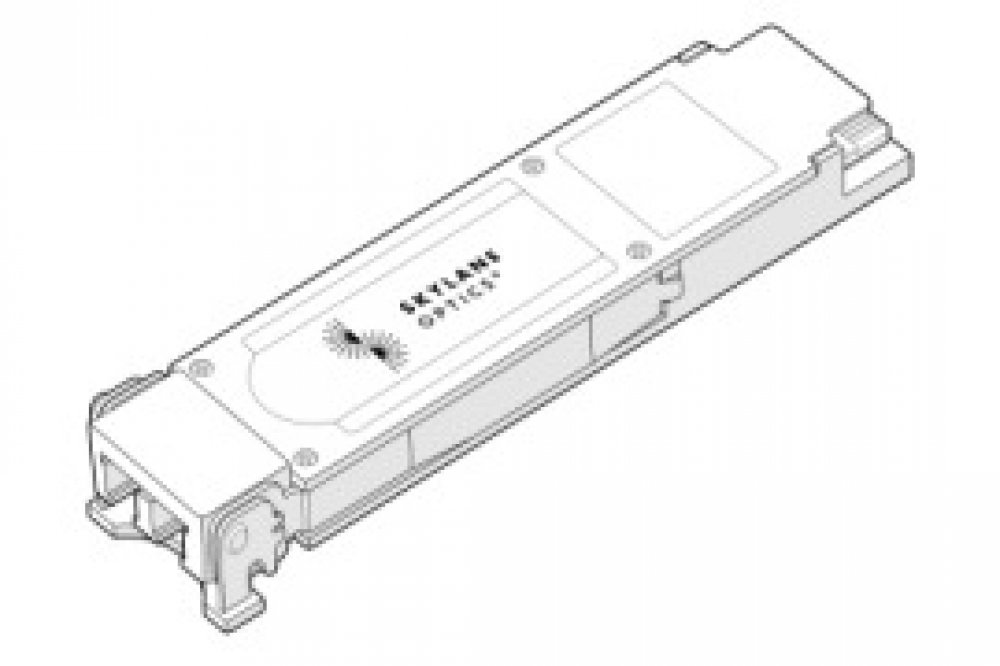

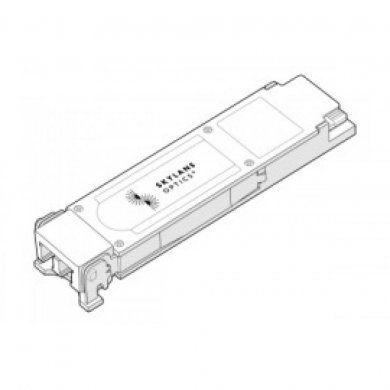

QFP85P3040PD is a high performance QSFP transceiver module for 40 Gigabit Ethernet (aggregated) data links over an OM3 multimode (50/125m) ribbon fibre.
The maximum reach is 300m, with 8.3dB End Of Life (EOL) power budget.
The transmitters are Vertical Cavity Surface Emitting Lasers (VCSEL) generating four independent parallel optical output signals.
The receivers are PIN photodiodes. This transceiver module is compliant with the Small Form-factor Pluggable (QSFP ) Multisource Agreement (MSA) and hot pluggable.


Product Type: Transceivers
Form Factor: QSFP
Standard: 40GBase-CSR4
Part Number: QFP85P3040PD
Category Rate: 40G
Type of Media: MultiMode
Wavelength: 850 nm
Reach (Distance): 300 m
Bit Rate: 40GBE
Protocol Family e Bit Rate Supported: 40GBE
Technology: Parallel Optics
Strand: Dual
Protocol Family: Ethernet
Temperature: 0-70C
Connector: MPO-12
DDM: Yes


Tags de QFP85P3040PD000: QFP85P3040PD000, transceiver multimodo 40GB mpo-12, transceiver mmf 40gb mpo-12, qsfp+ 40gb mpo-12, 40GBase-CSR4 QSFP+ Transceiver (MMF 850nm 300m MPO DOM), QSFP+ 850nm SR4 MMF 300m 40GBase DDM MPO, 40Gbase-CSR4, mmf, 850nm, 300m, mpo-12, dom, =QFP85P3040PD000, SKYLANE Optics

QFP85P3040PD000 Transceiver QSFP+ 40GBase-CSR4 MMF 850nm 300m MPO-12 DOM

Condição de QFP85P3040PD000:
Novo em embalagem comercial

Garantia  de  QFP85P3040PD000:
Lifetime Assist. Técnica do Fabricante



QFP85P3040PD is a high performance QSFP transceiver module for 40 Gigabit Ethernet (aggregated) data links over an OM3 multimode (50/125m) ribbon fibre.
The maximum reach is 300m, with 8.3dB End Of Life (EOL) power budget.
The transmitters are Vertical Cavity Surface Emitting Lasers (VCSEL) generating four independent parallel optical output signals.
The receivers are PIN photodiodes. This transceiver module is compliant with the Small Form-factor Pluggable (QSFP ) Multisource Agreement (MSA) and hot pluggable.


Product Type: Transceivers
Form Factor: QSFP
Standard: 40GBase-CSR4
Part Number: QFP85P3040PD
Category Rate: 40G
Type of Media: MultiMode
Wavelength: 850 nm
Reach (Distance): 300 m
Bit Rate: 40GBE
Protocol Family e Bit Rate Supported: 40GBE
Technology: Parallel Optics
Strand: Dual
Protocol Family: Ethernet
Temperature: 0-70C
Connector: MPO-12
DDM: Yes


Tags de QFP85P3040PD000: QFP85P3040PD000, transceiver multimodo 40GB mpo-12, transceiver mmf 40gb mpo-12, qsfp+ 40gb mpo-12, 40GBase-CSR4 QSFP+ Transceiver (MMF 850nm 300m MPO DOM), QSFP+ 850nm SR4 MMF 300m 40GBase DDM MPO, 40Gbase-CSR4, mmf, 850nm, 300m, mpo-12, dom, =QFP85P3040PD000, SKYLANE Optics
