OMm-LC 4GB, BUS 266MHz
R$ 4.787,00
à vista no Pix ou Boleto
ou R$ 5.038,76 em 1x no cartão (via site)
ou R$ 5.318,69 no cartão em até 10x sem juros (apenas na loja física)
R$ 4.787,00
à vista no Pix ou Boleto
R$ 5.038,76
em 1x no cartão (via site)
R$ 5.318,69 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 4.787,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 84733049
Condição de QLA2462-CK: Novo em embalagem comercial
Garantia de QLA2462-CK: 12 meses direto com a Net Computadores
| Bus interface |
| 64-bit, PCI-X 2.0 266-MHz DDR, compatible with 66/33-MHz PCI and 133/100/66-MHz PCI-X |
| Single voltage |
| 3.3V (mode 1), 3.3V/1.5V (mode 2) |
| Memory |
| 1-MB SRAM per port, 1-MB flash (SPI), and 2-KB NVRAM (SPI) |
| Hardware platforms* |
| IA32 (x86), IA64, IEM64T, AMD Opteron 64, Sun SPARC, Apple G5 (Xserve and Power Mac) |
| Compliance |
| PCI Local Bus Specification, revision 2.3, PCI-X Protocol Addendum to the PCI Local Bus Specification, revision 2.0a, PCI-X Electrical and Mechanical Addendum (revision 2.0a) to the PCI Local Bus Specification, PCI Bus Power Management Interface Specification revision 1.1, PCI Hot Plug Specification, revision 1.0 |
| Fibre Channel Specifications |
| Data rate |
| 4/2/1 Gbps auto-negotiation (4.2480/2.1240/ 1.0625 Gbps) |
| Performance |
| 150,000 IOPS per port |
| Topology |
| Point-to-point (N_Port), arbitrated loop (NL_Port), and switched fabric (N_Port) |
| Logins |
| Support for F_Port and FL_Port login. 2,048 concurrent logins and 2,048 active exchanges per port |
| Class of service |
| Class 2 and 3 |
| Protocols |
| FCP (SCSI-FCP), IP (FC-IP), FC-TAPE (FCP-2) |
| Compliance |
| SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS) |
| Physical Specifications |
| Ports |
| Dual 4-Gbps FC |
| Connections |
| Small form factor fixed (SFF) multimode optic with LC-style connector |
| Form factor |
| Low-profile MD2: 16.93 cm × 5.15 cm (6.7 in. × 2.5 in.) |
| Bracket size |
| Environment and Equipment Specifications |
| Airflow |
| None |
| Temperature |
| Humidity |
| Power dissipation |
| 8.0 W (maximum) |
| Cable distances |
Maiores detalhes de QLA2462-CK no site do fabricante:
http://www.qlogic.com/Products/SAN_products_FCHBA_QLA2462.aspx
Tags de QLA2462-CK: QLA2462-CK, HBA, PCI-X, Qlogic, QLA2462CK, Controladora HBA, Placa HBA, Qlogic

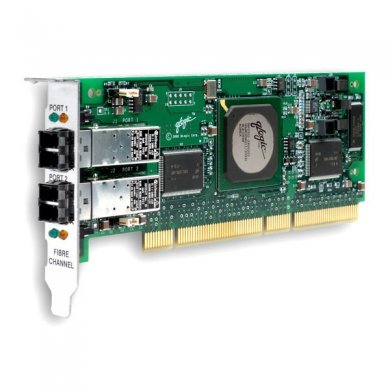

QLA2462-CK HBA Qlogic Fibre Channel PCI-X Dual Port OMm-LC 4GB, BUS 266MHz
