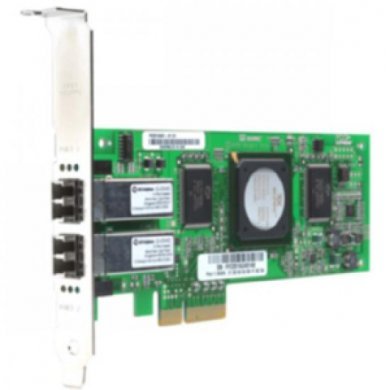

QLE2462-E-SP HBA QLOGIC Dual Fibre Channel 4GB

QLE2462-E-SP HBA QLOGIC Dual Fibre Channel 4GB Fibre Channel 2 Portas LC 4Gbps PCI-E x4 (Embalagem OEM, não acompanha driver de instalação) (Espel

Condição de QLE2462-E-SP:
Novo em embalagem antiestática

Garantia  de  QLE2462-E-SP:
12 meses direto com a Net Computadores

Product Name
2 PT 4GB PCIE


Product Type
Fibre Channel Host Bus Adapter


Fibre Channel Class Support
Class 2, Class 3


Form Factor
Plug-in Card


Product Model
QLE2462


Data Transfer Rate
4.24 Gbps Fibre Channel Full-duplex


Dimensions
2.70 Height x 6.60 Width


Product Line
SANblade


Topology
Point-to-Point
Arbitrated Loop
Switched Fabric


Ports/Channels
2 x LC Fibre Channel


Standard Memory
1 MB SRAM Per Port
1 MB Flash
2 KB NVRAM


Host Interface
PCI Express x4


Connectivity Media
Multi-mode Fiber


Certifications & Standards


CE
FCC
UL
cUL
TUV
BSMI
CNS 13438 Class A
EN 61000
EN55024
EN55022 Class A
VCCI Class A ITE
CSA 22.2 No. 60950
AS/NZ 3548 Class A
EMC
MIC
ICES-003 Class




Compatibility
Hardware Platforms:

IA32
IA64
IEM64T
AMD Opteron64
Sun SPARC
Apple G5 Power Mac


Operating Systems:

Microsoft Windows 2000
Microsoft Windows Server 2003
Microsoft Windows XP Professional
Novell NetWare 6.x
SunSoft Solaris 9
SunSoft Solaris 10
SuSE Linux Enterprise Server 8
SuSE Linux Enterprise Server 9
Red Hat Enterprise Linux AS 3
Red Hat Enterprise Linux AS 4
Linux Red Hat AS 3.0
Linux Red Hat AS 4.0
Mac OS X




Status Indicators
Real-time status and link activity information: Three LEDs per port


Humidity
10% to 90% Non-condensing Relative Humidity Operating
5% to 95% Storage


Management
FC HBA Manager


Power Consumption
6.50 W


Distance Support
1640 ft 50/125 m @ 1 Gbps
984 ft 62.5/125 m @ 1 Gbps
984 ft 50/125 m @ 2 Gbps
492 ft 62.5/125 m @ 2 Gbps
492 ft 50/125 m @ 4 Gbps
230 ft 62.5/125 m @ 4 Gbps


Temperature
32F (0C) to 131F (55C) Operating
-4F (-20C) to 158F (70C) Storage


Fabric Support
F_Port
FL_Port
N_Port
NL_Port


Protocols

SCSI-FCP
FC-IP
FC-Tape
FC-PH
FC-PH3
FC-PH2
FC-FLA
FC-AL-2
FCP-2
FC-GS-3
FC-FS
FC-PLDA
FC-GS-2



Number of Ports/Channels
2


Additional Information


Auto-negotiation
150,000 IOPS per port
End-to-end data integrity using T10 CRC
Intelligent interleaved DMA support
Out-of-order frame reassembly (OoOFR)
2,048 concurrent logins and 2,048 active exchanges per port

Maiores detalhes de QLE2462-E-SP no site do fabricante:
http://www.cisco.com/c/dam/en/us/products/collateral/servers-unified-computing/u

Tags de QLE2462-E-SP: QLE2462, QLE2462-E-SP, Dual FC 4GB, QLE2462ESP, QLE2462-E, QLE-2462-E, QLE-2462-E-SP, HBA, SANblade, Controladora HBA, Controladora de Backup, Placa HBA, Qlogic
