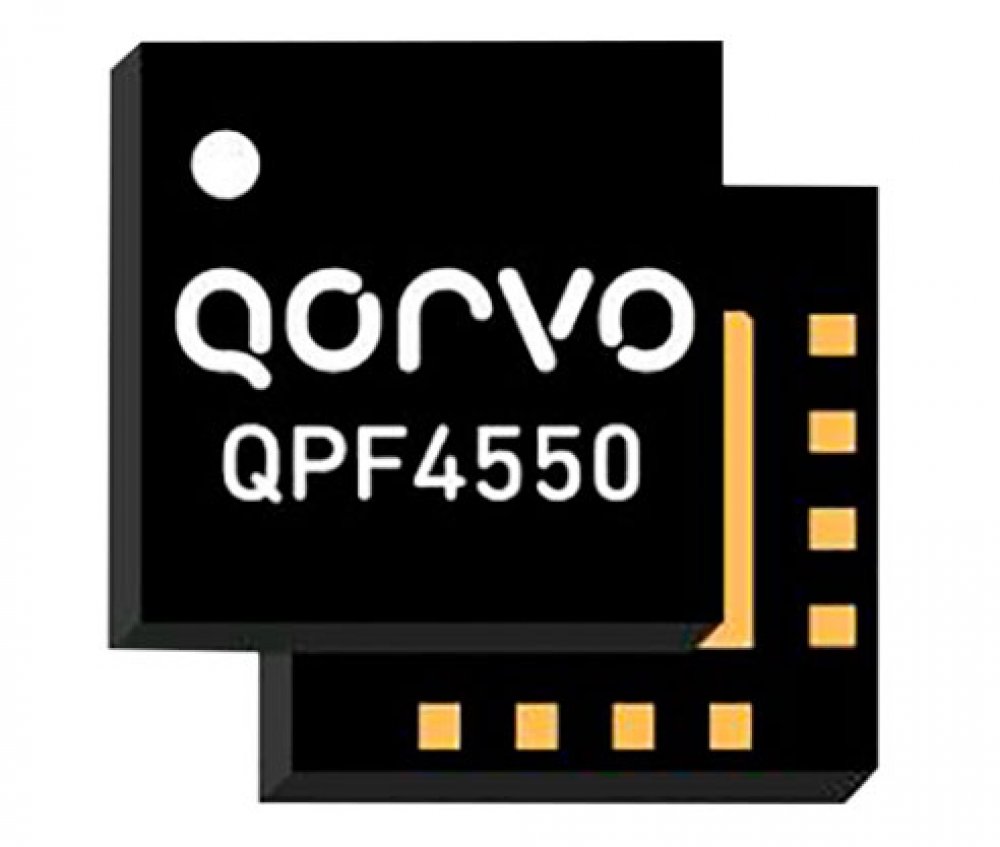

QPF4550SR Ci Qorvo RF Front End 5GHz WiFi 6 QFN16 30dBm

*As imagens podem ser ilustrativas

Ci Qorvo RF Front End 5GHz WiFi 6 QFN16 30dBm

avise-me quando disponível

R$ 64,00

à vista no Pix ou Boleto

ou R$ 67,07 em 1x no cartão (via site)

ou R$ 70,79 no cartão em até 10x sem juros (apenas na loja física)

R$ 64,00

à vista no Pix ou Boleto

R$ 67,07
em 1x no cartão (via site)

R$ 70,79 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Cotação PJ mais de uma unidade

Indicar QPF4550SR

QPF4550SR Ci Qorvo RF Front End 5GHz WiFi 6 QFN16 30dBm

Condição de QPF4550SR: Novo em embalagem comercial

Garantia de QPF4550SR: 3 meses direto com a Net Computadores

Qorvo QPF4550 5GHz Wi-Fi 6 Front End Module (FEM) is designed for Wi-Fi 6 (802.11ax) systems. The QPF4550 features a 5150MHz to 5925MHz frequency range and provides up to 30dB transmit gain with a low 2.1dB noise figure. The compact form factor and integrated matching of the QPF4550 minimizes the layout area in an application.

The performance is drawn from optimizing the PA for a 5V supply voltage that conserves power consumption maintaining the highest linear output power and leading-edge throughput. Featured in the QPF4550 Modules are integrated die level filtering for 2nd and 3rd harmonics, as well as 2.4GHz rejection for DBDC operation.

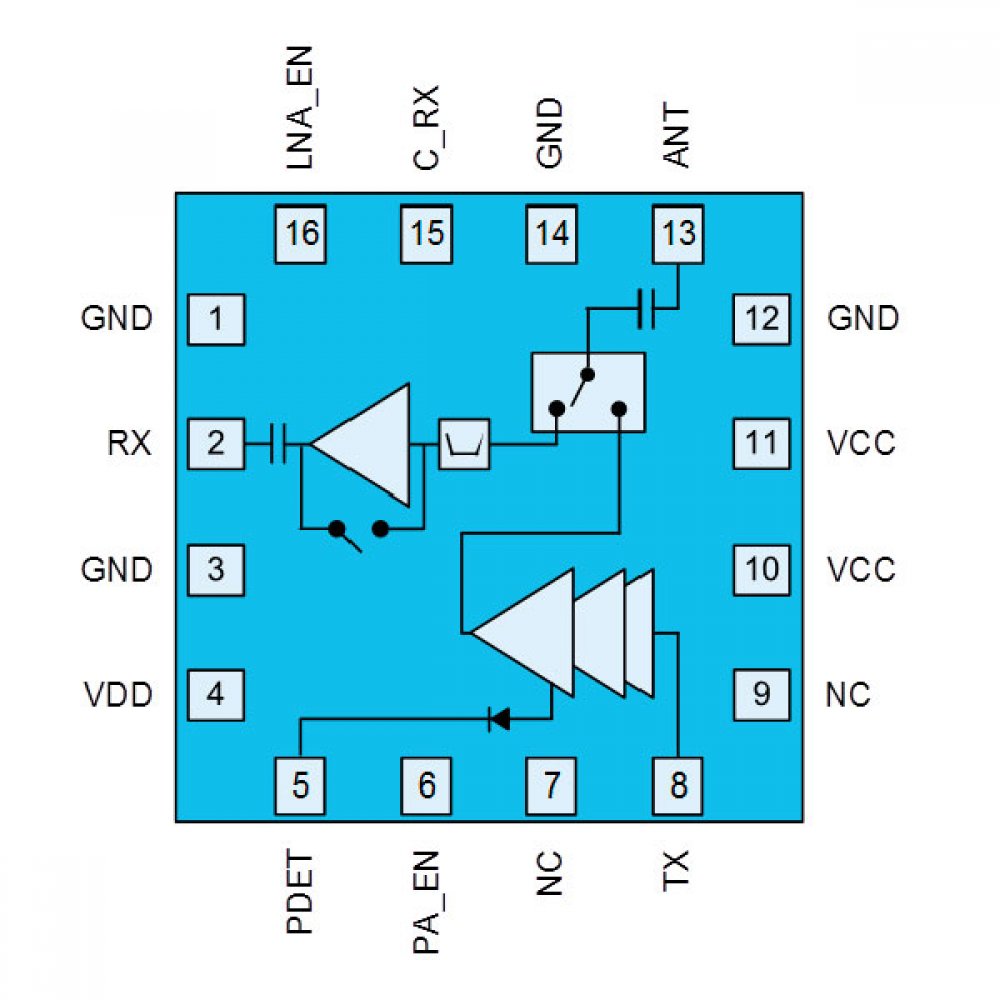

The QPF4550 provides a simple solution by integrating a 5GHz power amplifier (PA), single pole two throw switch (SP2T), and bypassable low noise amplifier (LNA) into a single device.

FEATURES

Conforms to 802.11ax (Wi-Fi 6) standards
5150MHz to 5925MHz frequency range
POUT 15dBm MCS11 HE160 -43dB dynamic EVM
POUT 16dBm MCS11 HE80 -43dB dynamic EVM
POUT 20.5dBm MCS9 VHT80 -35dB dynamic EVM
POUT 24.5dBm MCS0 HT20 spectral mask compliance
Optimized for 5V operation

30dB Tx gain
2.1dB noise figure
13.5dB Rx gain and 8dB bypass loss
30dB 2.4GHz rejection on Rx path

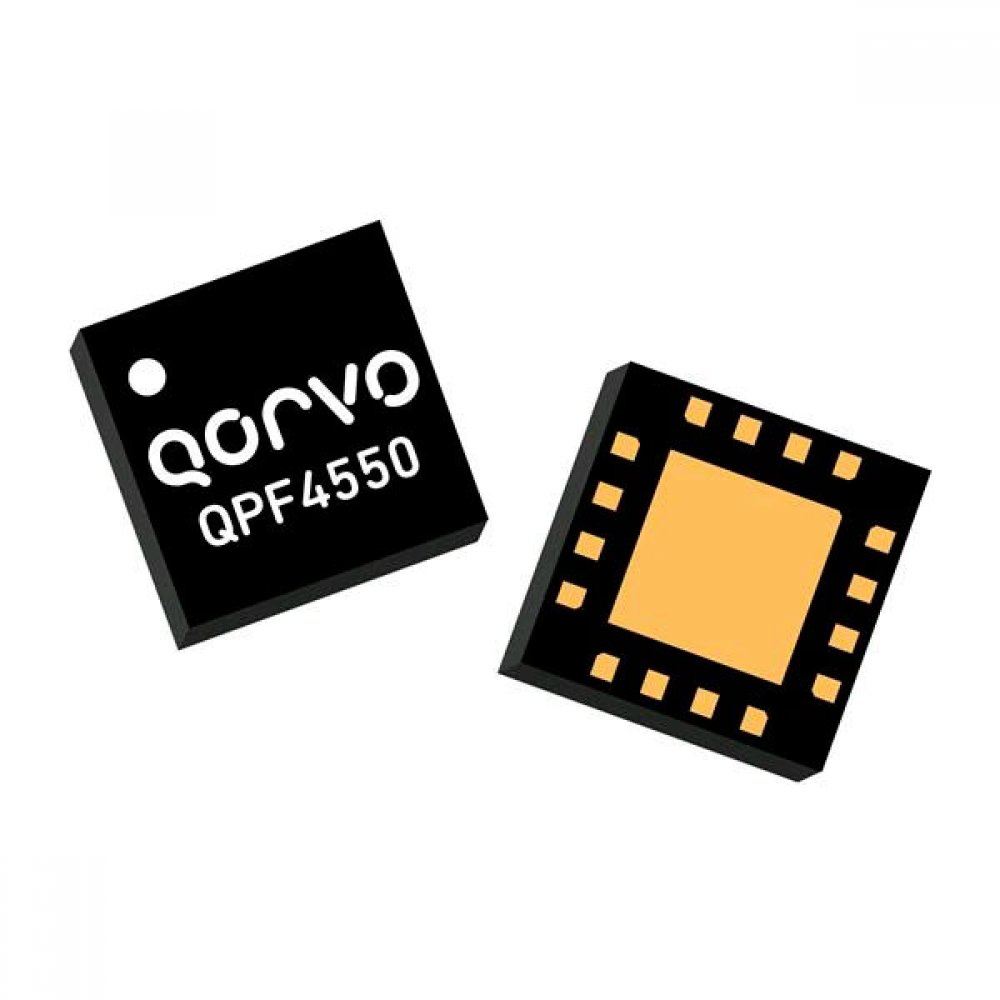

16-pad, 2.5mm x 2.5mm laminate package
RoHS compliant, lead-free, and halogen-free

APPLICATIONS

Wi-Fi 6
Access points
Wireless routers
Residential gateways
Customer premise equipment
Internet of Things (IoT)

Manufacturer:	Qorvo
Product Category:	RF Front End

Type:	Wi-Fi
Operating Frequency:	5.15GHz to 5.925GHz
NF - Noise Figure:	2.1 dB
Operating Supply Voltage:	5 V
Operating Supply Current:	15 mA
Mounting Style:	SMD/SMT
Package / Case:	2.5 mm x 2.5 mm
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Qorvo
Development Kit:	QPF4550EVB-01
Gain:	30 dB
Moisture Sensitive:	Yes
P1dB - Compression Point:	30 dBm
Product Type:	RF Front End

Tags de QPF4550SR: QPF4550SR, QPF4550, QFN-16, ic 5GHz, ci de Wi-Fi DJI, ci controle remoto drone DJI mavic 3 air, RF Front End 5GHz Wi-Fi 6 Front End Module, QPF4550EVB-01, Qorvo
