RB912UAG-2HPnD-OUT RouterBoard Mikrotik RB912 BaseBox2

RB912UAG-2HPnD-OUT RouterBoard Mikrotik RB912 BaseBox2 2.4Ghz Wireless Conectores SMA

Condição de RB912UAG-2HPnD-OUT:
Novo em embalagem comercial

Garantia  de  RB912UAG-2HPnD-OUT:
6 meses direto com a Net Computadores

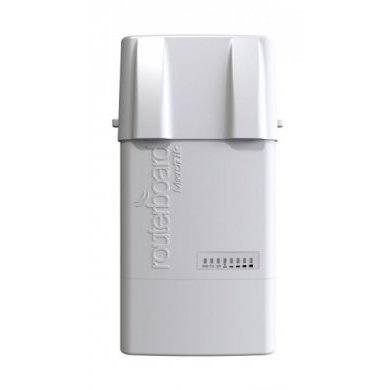

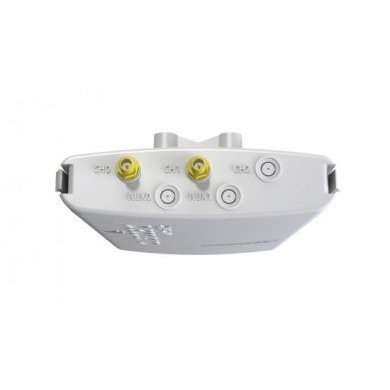

The BaseBox2 in an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

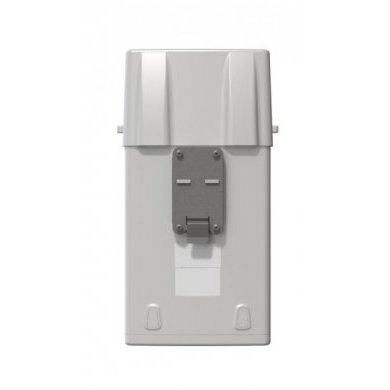

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

Specifications:

Product code RB912UAG-2HPnD-OUT
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model AR9342-BL1A
Wireless standards 802.11b/g/n
Number of USB ports 1
Power Jack 0
Supported input voltage 8 V - 30 V
PoE in Yes
PoE out No
Voltage Monitor Yes
PCB temperature monitor Yes
CPU temperature monitor No
License level 4
Antenna gain DBI No
Current Monitor No
CPU AR9342-BL1A
Max Power consumption 10W
SFP ports 0
SFP+ ports 0
USB slot type USB type A
Number of chains 2
Serial port None

Wireless

2.4 GHz
TX RX
1MBit/s 30 -96
11MBit/s 30 -80
6MBit/s 30 -96
54MBit/s 27 -78
MCS0 30 -92
MCS7 24 -73

Performance test results

RB912UAG-2HPnD-OUT AR9342 1G 1 port test

Mode Configuration 1518 byte 512 byte 64 byte

kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.0 983.7 232.0 950.3 269.6 138.0
Bridging 25 bridge filter rules 81.0 983.7 86.0 352.3 87.6 44.9
Routing none (fast path) 81.0 983.7 210.0 860.2 226.9 116.2
Routing 25 simple queues 81.0 983.7 103.9 425.6 106.6 54.6
Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0
