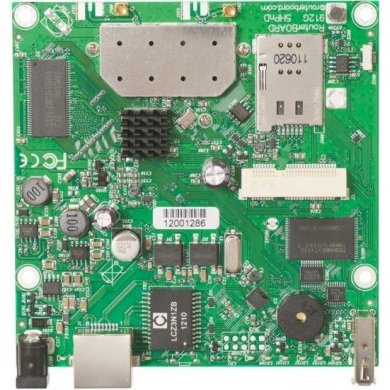

RB912UAG-5HPnD Mikrotik Placa Routerboard 600 MHz

RB912UAG-5HPnD Mikrotik Placa Routerboard 600 MHz 1000mW output power 10/100/1000 Ethernet

Condição de RB912UAG-5HPnD:
Novo em embalagem comercial

Garantia  de  RB912UAG-5HPnD:
6 meses direto com a Net Computadores

Specifications:

Product code RB912UAG-5HPnD
CPU nominal frequency 600 MHz
CPU core count 1
Architecture MIPS-BE
Size of RAM 64 MB
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model AR9342-BL1A
Wireless standards 802.11a/n
Number of USB ports 1
Memory Cards No
Power Jack 1
802.3af support No
Supported input voltage 8 V - 30 V
PoE in Yes
PoE out No
Voltage Monitor Yes
PCB temperature monitor Yes
CPU temperature monitor No
Dimensions 105x105mm
Operating System RouterOS
Operating temperature range -40°C .. +70°C tested
License level 4
Antenna gain DBI No
Current Monitor No
CPU AR9342-BL1A
Max Power consumption 14W at 24v
SFP ports 0
SFP+ ports 0
USB slot type USB type A
Number of chains 2
Serial port None

Wireless specifications
5 GHz
TX RX
6MBit/s 30 -96
54MBit/s 27 -78
MCS0 30 -96
MCS7 26 -75

wireless parameters may be limited in software, depending on your local regulatory limitations
Performance test results
RB912UAG-5HPnD AR9342 1G 1 port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.0 983.7 232.0 950.3 269.6 138.0
Bridging 25 bridge filter rules 81.0 983.7 86.0 352.3 87.6 44.9
Routing none (fast path) 81.0 983.7 210.0 860.2 226.9 116.2
Routing 25 simple queues 81.0 983.7 103.9 425.6 106.6 54.6
Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0

Vídeo de RB912UAG-5HPnD Mikrotik Placa Routerboard 600 MHz
