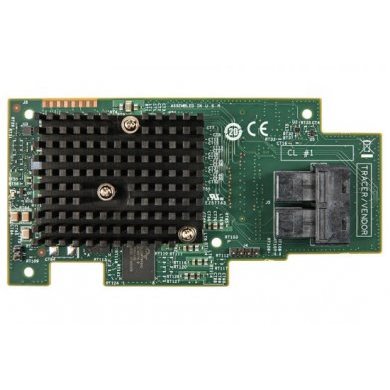

RMS3HC080 Controladora Intel SAS 8 Canais 12Gbs

RMS3HC080 Controladora Intel SAS 8 Canais 12Gbs PCI Express 3.0 x8 / 2x SFF-8643

Condição de RMS3HC080:
Novo em embalagem comercial

Garantia  de  RMS3HC080:
12 meses direto com a Net Computadores

Key features
LSI SAS 3008* I/O controller (IOC) provides SAS 3.0 compliance, including 12 Gb/s data transfer and compatibility with SAS or SATA drives
Two mini-SAS HD SFF8643 SAS/SATA connectors for connectivity inside the server
x8 PCI Express* Generation 3 interface for fast communication with the server board
Unique mezzanine card form-factor allows for RAID without using a standard add-in card slot
Advanced management capabilities for enhanced usability

Target application
Small and medium business or mid-tier datacenter: based on a lower performance IOC (rather than a ROC), the Intel® Integrated RAID Module RMS3HC080 offers all the management features of mainstream products plus hybrid RAID 5/50 capability
High drive count solutions: the Intel Integrated RAID Module RMS3HC080 can be teamed with a SAS expander board, like the Intel® RAID Expander RES3TV360, to offer scalable performance solutions for applications such as streaming media

Key advantages
Cost-effective data protection: Provides low-cost RAID 0, 1, 10 and hybrid RAID 5, 50 for entry-level server and workstation environments where high-performance and reliable data protection are required
Advanced management: Includes the same management features as more expensive RAID products which allows for easier configuation, scalability, and serviceability
SAS or SATA storage: Connect SAS or SATA devices within the array. Use SAS drives for speed, reliability, and scalability; use high-capacity SATA drives for budget-friendly storage

Product Name Intel Integrated RAID Module RMS3HC040
Packaged Quantity 1
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
5
10
50
JBOD
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (Internal) 8
Physical Characteristics
Form Factor Plug-in Module
Miscellaneous
Package Contents
Integrated RAID Module RMS3HC080
Full-height and Low-profile Brackets
Platform Supported PC
Linux
Other Information
Card Height Low-profile

Maiores detalhes de RMS3HC080 no site do fabricante:

Vídeo de RMS3HC080 Controladora Intel SAS 8 Canais 12Gbs

Tags de RMS3HC080: RMS3HC080, Controladora Intel SATA, Controladora Intel SAS/SATA, Controladora Intel 8 Canais, SFF8643, SFF-8643, Controladora Intel 12Gbs, S2600WT2, S2600WTT, Intel
