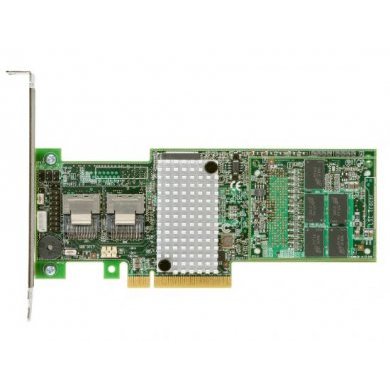

PCI-E x8, Low Profile, 2x SFF-8087 6Gb/s SAS 600MBps, 1GB DDR3, RAID 0,1,5,6,10,50,60
R$ 1.666,00
à vista no Pix ou Boleto
ou R$ 1.753,28 em 1x no cartão (via site)
ou R$ 1.850,68 no cartão em até 10x sem juros (apenas na loja física)
R$ 1.666,00
à vista no Pix ou Boleto
R$ 1.753,28
em 1x no cartão (via site)
R$ 1.850,68 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 1.666,00
à vista no pix
Condição:
Novo em embalagem antiestática
Garantia:
12 meses direto com a Net Computadores
NCM: 84733049
Condição de RS25DB080: Novo em embalagem antiestática
Garantia de RS25DB080: 12 meses direto com a Net Computadores
| Product Name | RAID SAS SATA 8 Port PCIE X8-0/1/5 6GB 1GB |
| Product Type | SAS Controller |
| Ports | 2 x SFF-8087 6Gb/s SAS - Serial Attached SCSI (SAS) Internal |
| RAID Supported | Yes |
| Height | 2.5 |
| Width | 6.6 |
| Interfaces | Serial ATA/600
Serial Attached SCSI (SAS) |
| Form Factor | Half-length Low-profile Plug-in Card |
| Product Model | RS25DB080 |
| Data Transfer Rate | Up to 600 MBps Per Port |
| RAID Levels | 0
1 5 6 10 50 60 |
| Standard Memory | 1 GB DDR3 SDRAM |
| Host Interface | PCI Express x8 |
| Drive Supported | Up to 128 x Physical |
| Number of Ports | 2 |
| Product order code | RS25DB080 |
|---|---|
| Essentials | |
|
Board Form Factor |
Low-Profile MD2 |
|
Data Transfer Rate |
6 Gb/s |
|
Supported Devices |
SAS / SATA Devices |
|
Compatible Battery Backup Options |
AXXRSBBU9 |
|
RAID Level Supported |
0, 1, 5, 6, 10, 50, 60 |
|
# of Ports Internal |
8 |
|
# of Ports External |
0 |
|
# of Devices Supported |
128 |
|
Embedded Memory |
1GB |
|
PCIe Host Interface |
PCI Express 2.0 x8 |
|
I/O Processor Model |
LSI 2208 |
| Compatible Products Lists | |
| Compatible Server/Workstation Board |
Intel Server Board S5500HCV Intel Server Board S3420GPLC Intel Server Board S5520UR Intel Server Board S5520HC Intel Workstation Board S5520SC Intel Server Board S5500BC Intel Server Board S5500WB Intel Server Board S5500HV Intel Server Board S3420GPV Intel Server Board S3420GPRX Intel Server Board S5520HCT Intel Server Board S2600GZ Intel Server Board S2600GL Intel Server Board S2600CP2 Intel Server Board S2600CP4 Intel Server Board S2600CO4 Intel Workstation Board W2600CR2 Intel Server Board S2400GP2 Intel Server Board S2600CP2IOC Intel Server Board S2600CP4IOC Intel Server Board S2600COEIOC Intel Server Board S5500WB12V Intel Server Board S3420GPLX Intel Server Board S1200BTL Intel Server Board S1200BTS Intel Server Board S2600IP4 Intel Server Board S5520URT Intel Server Board S2400SC2 Intel Server Board S2400GP4 Intel Server Board S2600COE Intel Server Board S2600CP2J |
| Compatible System |
Intel Server System SR2625URLXR Intel Server System SR2625URBRPR Intel Server System SR1600URR Intel Server System SR1600URHSR Intel Server System SR1625URSASR Intel Server System SR1695WBDC Intel Server System SR1690WBR Intel Server System R1304GZ4GC Intel Server System R1208GL4DS Intel Server System R2208GZ4GC Intel Server System R2308GZ4GC Intel Server System R2208GL4GS Intel Server System R2308GL4GS Intel Workstation System P4304CR2LFKN Intel Workstation System P4304CR2LFJN Intel Workstation System P4304CR2LFGN Intel Server System R2216IP4LHPC Intel Server System P4308CP4MHEN Intel Server System P4308CP4MHGC Intel Server System P4216IP4LHKC Intel Server System P4208IP4LHGC Intel Server System P4308IP4LHKC Intel Server System P4308IP4LHJC Intel Server System P4308IP4LHGC Intel Server System R2208BB4GC Intel Server System R2216BB4GC Intel Server System R2308BB4GC Intel Server System R2216GZ4GCLX Intel Server System R2312BB4GCSAS Intel Server System P4308IP4LHJCL Intel Workstation System P4304CR2LFJNL Intel Workstation System SC5650SCWS Intel Server System SR1630BCR Intel Server System SC5650BCDPR Intel Server System SC5650HCBRPR Intel Server System SR2625URLXT Intel Server System SR1625URR Intel Server System SR2600URBRPR Intel Server System SR2600URLXR Intel Server System SR2600URSATAR Intel Server System SR1695WBAC Intel Server System R1208GZ4GC Intel Server System R1208GZ4GCSAS Intel Server System R2216GZ4GC Intel Server System R2312GL4GS Intel Server System R2208GZ4GC10G Intel Server System R2224GZ4GCSAS Intel Server System R2312GZ4GCSAS Intel Server System R2224IP4LHPC Intel Server System R2312IP4LHPC Intel Server System P4208CP4MHGC Intel Server System P4224IP4LHKC Intel Server System P4216IP4LHJC Intel Server System R1304BB4DC Intel Server System R1208BB4DC Intel Server System R2208GZ4IS Intel Server System R2208IP4LHPC Intel Server System R2308IP4LHPC Intel Server System R2224BB4GCSAS Intel Server System R2216GZ4GCIOC Intel Server System R2308GZ4GCIOC Intel Server System R1208GZ4GCIOC |
| Compatible Spares, Accessories, and Services |
Intel RAID Extended Warranty |
| Compatible RAID |
Intel RAID SSD Cache with Fast Path *I/O Intel RAID Smart Battery AXXRSBBU9 Intel RAID/SAS Cable Kit CBL740MS7P |
Vídeo de RS25DB080 INTEL Controladora SAS/SATA 8 Canais 6Gb
Tags de RS25DB080: RS25DB080, AXXRSBBU9, PCI-E x8, Controladora SAS Intel, RS25DB080, SFF-8087, SFf8087, SFF 8087, SAS RAID, SATA RAID, 2 Canais SAS, 2 Canais SATA, SAS 6Gbs, Controladora RAID, Controladora SATA, Controladora de Backup, Placa Controladora, =RS25DB080, Intel
RS25DB080 INTEL Controladora SAS/SATA 8 Canais 6Gb PCI-E x8, Low Profile, 2x SFF-8087 6Gb/s SAS 600MBps, 1GB DDR3, RAID 0,1,5,6,10,50,60
