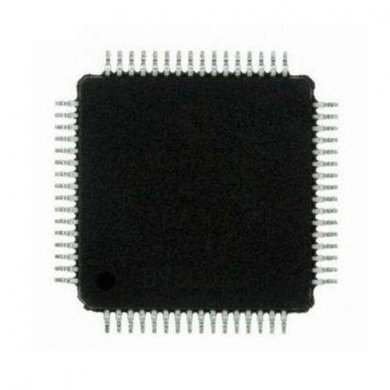

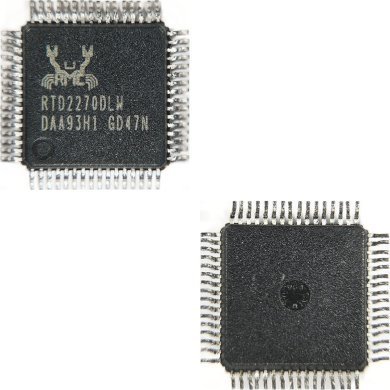

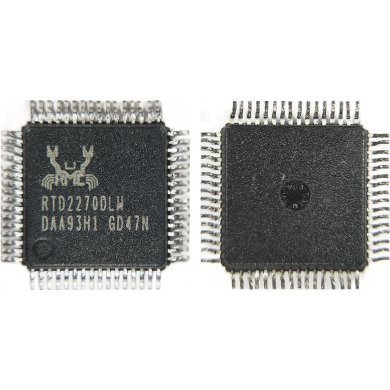

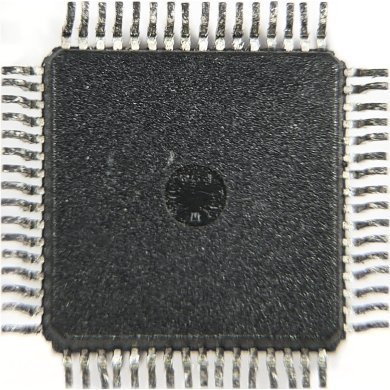

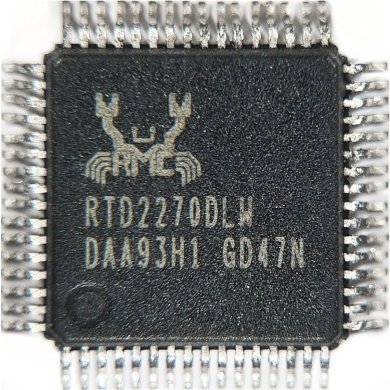

RTD2280DLW Realtek CI LCD Flat Panel Driver 64 Pin LQFP

Name: RTD2280DLW Realtek CI LCD Flat Panel Driver 64 Pin LQFP
Brand: Realtek
SKU: RTD2280DLW
Price: 38.00 BRL
Availability: InStock

1.2/3.3 Volts

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 38,00

à vista no Pix ou Boleto

ou R$ 39,72 em 1x no cartão (via site)

ou R$ 41,93 no cartão em até 10x sem juros (apenas na loja física)

R$ 38,00

à vista no Pix ou Boleto

R$ 39,72
em 1x no cartão (via site)

R$ 41,93 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

850440602

R$ 38,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 850440602

Cotação PJ mais de uma unidade

Indicar RTD2280DLW

RTD2280DLW Realtek CI LCD Flat Panel Driver 64 Pin LQFP
1.2/3.3 Volts

Condição de RTD2280DLW: Novo em embalagem comercial

Garantia de RTD2280DLW: 3 meses direto com a Net Computadores

Outros PNs para este item: 2280DLW,

General
- Embedded DDC with DDC1/2B/CI
- Embedded one MCU with SPI flash controller.
- Require only one crystal to generate all timing.
- Programmable internal low-voltage-reset (LVR)
- High resolution 6 channels PWM output, and wide range selectable PWM frequency.
- Support input format up to FHD
- Embedded BJT control circuit for 1.2V regulator replacement
Analog RGB Input Interface
- One Analog input supported
- Integrated 8-bit triple-channel 210MHz ADC/PLL(option)
- Embedded programmable Schmitt trigger of HSYNC
- Support Sync-On-Green (SOG) and various kinds of composite sync modes
- On-chip high-performance hybrid PLLs
- High resolution true 64 phase ADC PLL
Embedded MCU
- Industrial standard 8051 core with external serial flash
- Low speed ADC for various application
- I2C Master or Slave hardware supported
Auto Detection /Auto Calibration
- Input format detection
- Compatibility with standard VESA mode and support user-defined mode
- Smart engine for Phase/Image position/Color calibration
Scaling
- Fully programmable zoom ratios
- Independent horizontal/vertical scaling
- Advanced zoom algorithm provides high image quality
- Sharpness/Smooth filter enhancement
- Support non-linear scaling from 4:3 to 16:9 or 16:9 to 4:3
Color Processor
- True 10 bits color processing engine
- sRGB compliance
- Advanced dithering logic for 18-bit panel color depth enhancement
- Brightness and contrast control
- Programmable 10-bit gamma support
- Peaking/Coring function for video sharpness
VividColor™
- Independent color management (ICM)
- Dynamic contrast control (DCC)
Output Interface
- Fully programmable display timing generator
- Flexible data pair swapping for easier system design.
- Single or Dual display interface supported up to 186MHz, FHD resolution
- LVDS output interface
- Support 8 bits LVDS output
- Spread-Spectrum DPLL to reduce EMI
- Fixed Last Line output for perfect panel capability
Embedded OSD
- Embedded 16.5K SRAM dynamically stores OSD command and fonts
- Support multi-color RAM font, 1, 2 and 4-bit per pixel
- 64 color palette
- Maximum 10 window with alpha-blending/ gradient / gradient target color / gradient reversed color/ dynamic fade-in/fade-out, bordering/ shadow/3D window type
- Rotary 90,180,270 degree
- Independent row shadowing/bordering
- Programmable blinking effects for each character
- OSD-made internal pattern generator for factory mode
- Support 12x18~4x18 proportional font
- Hardware decompression for OSD font
- Special function for closed-caption
- Support 2 independent font base
Power & Package
- 3.3V / 1.2V power supply

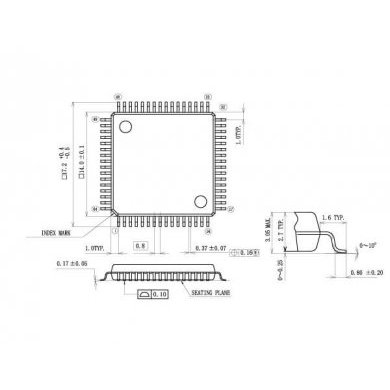

- 64 pin LQFP 7x7 package

Maiores detalhes de RTD2280DLW no site do fabricante:
https://www.qdatasheet.com/datasheet.jsp?pn=RTD2280L&fac=Realtek
