RW-825 Backplane 8 Baias SAS/SATA 8x 2.5 Pol.

Hot Swap - Ocupa 2 Baias de 5.25 Pol.

RW-825 - OEM
RW-825 Backplane 8 Baias SAS/SATA 8x 2.5 Pol.
*As imagens podem ser ilustrativas
Backplane 8 Baias SAS/SATA 8x 2.5 Pol.Backplane 8 Baias SAS/SATA 8x 2.5 Pol.Backplane 8 Baias SAS/SATA 8x 2.5 Pol.Backplane 8 Baias SAS/SATA 8x 2.5 Pol.Backplane 8 Baias SAS/SATA 8x 2.5 Pol.

R$ 633,00

à vista no Pix ou Boleto

ou R$ 665,73 em 1x no cartão (via site)

ou R$ 702,71 no cartão em até 10x sem juros (apenas na loja física)

R$ 633,00

à vista no Pix ou Boleto

R$ 665,73
em 1x no cartão (via site)

R$ 702,71 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
84733099

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733099

RW-825 Backplane 8 Baias SAS/SATA 8x 2.5 Pol.
Hot Swap - Ocupa 2 Baias de 5.25 Pol.

Condição de RW-825:    Novo em embalagem comercial

Garantia  de  RW-825:     12 meses direto com a Net Computadores



PRODUCT TECHNICAL SPECIFICATIONS
Two 5.25" space converted to eight 2.5" hotswap mobile rack module (additional RAID Controller Card needed)
Support 8 x 2.5" SATA2/SATA3 (SAS6G) HDD/SSD, fit 7mm, 9.5mm, 12.5mm, 14.5mm, 15mm height of HDD
Entire mechanism by heat conductive aluminum extrusion heatsink with glossy brushed finish on the surface
The newest PLinkUSA / RackBuy creative RailWay hotswap tray design with smooth travel while sliding in and out

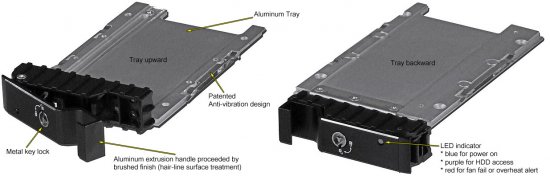

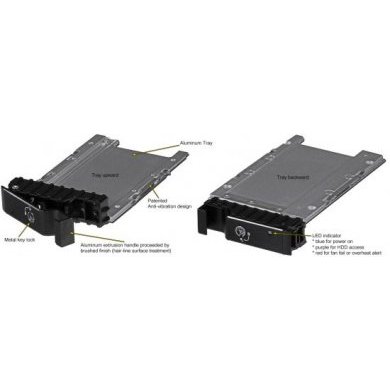

Patented anti-vibration spring design, HDD can be mounted from two sides or bottom of hotswap HDD tray
8 HDD LED: each LED with 2 colors, blue for power, purple for access
Cooling system with one 70mm x 15mm exhaust fan at rear side of HDD cage
Front interface (LED): fast red flash as overheat, slow red flash as fan malfunction

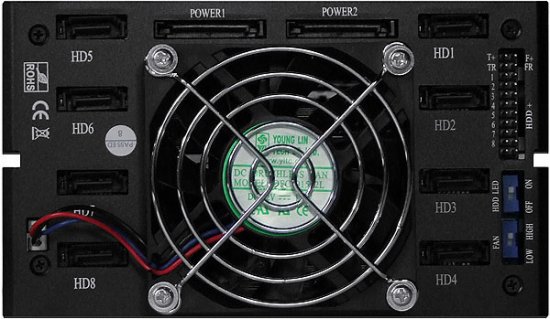

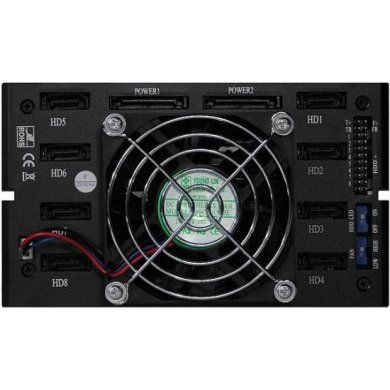

Rear interface (1): 8 x SATA 7pin data transfer port, 2 x SATA 15pin psu input port, HDD access signal on/off switch
Rear interface (3): 8 x 2.54pin HDD signal connector
Rear interface (4): high speed fan or low speed fan adjustable switch
Accessory Pack: key x 2pcs, M3 flat head nickel screw x 36pcs, M3 round head nickel screw x 8pcs
Product dimension: 160(L) x 146(W) x 86(H)mm
Package: N.W. 1.08 KGM, G.W. 1.24 KGM, CUFT 0.200 (255mm x 125mm x 180mm, single box packed)


Maiores detalhes de RW-825 no site do fabricante:
http://store.chassisoutlet.com/2xto8xsahoca.html


Tags de RW-825: RW-825, RW825, RW 825, RW-625, RW625, backplane 8 baias, enclosure 8 baias, 8 baias hot swap, gaveta para 8 HDs, Gaveta de HD, Gaveta para HD, Gavetas de HD, Gavetas para HD, Gaveta para 8 HDs, Baia para 6 HD, Baia para 8 HD, Baia de HD, OEM, OEM

RW-825 Backplane 8 Baias SAS/SATA 8x 2.5 Pol. Hot Swap - Ocupa 2 Baias de 5.25 Pol.

Condição de RW-825:
Novo em embalagem comercial

Garantia  de  RW-825:
12 meses direto com a Net Computadores


PRODUCT TECHNICAL SPECIFICATIONS
Two 5.25" space converted to eight 2.5" hotswap mobile rack module (additional RAID Controller Card needed)
Support 8 x 2.5" SATA2/SATA3 (SAS6G) HDD/SSD, fit 7mm, 9.5mm, 12.5mm, 14.5mm, 15mm height of HDD
Entire mechanism by heat conductive aluminum extrusion heatsink with glossy brushed finish on the surface
The newest PLinkUSA / RackBuy creative RailWay hotswap tray design with smooth travel sliding in and out
Patented anti-vibration spring design, HDD can be mounted from two sides or bottom of hotswap HDD tray
8 HDD LED: each LED with 2 colors, blue for power, purple for access
Cooling system with one 70mm x 15mm exhaust fan at rear side of HDD cage
Front interface (LED): fast red flash as overheat, slow red flash as fan mal
Rear interface (1): 8 x SATA 7pin data transfer port, 2 x SATA 15pin psu input port, HDD access signal on/off switch
Rear interface (3): 8 x 2.54pin HDD signal connector
Rear interface (4): high speed fan or low speed fan adjustable switch
Accessory Pack: key x 2pcs, M3 flat head nickel screw x 36pcs, M3 round head nickel screw x 8pcs
Product dimension: 160(L) x 146(W) x 86(H)mm
Package: N.W. 1.08 KGM, G.W. 1.24 KGM, CUFT 0.200 (255mm x 125mm x 180mm, single box packed)


Maiores detalhes de RW-825 no site do fabricante:
http://store.chassisoutlet.com/2xto8xsahoca.html


Tags de RW-825: RW-825, RW825, RW 825, RW-625, RW625, backplane 8 baias, enclosure 8 baias, 8 baias hot swap, gaveta para 8 HDs, Gaveta de HD, Gaveta para HD, Gavetas de HD, Gavetas para HD, Gaveta para 8 HDs, Baia para 6 HD, Baia para 8 HD, Baia de HD, OEM, OEM
