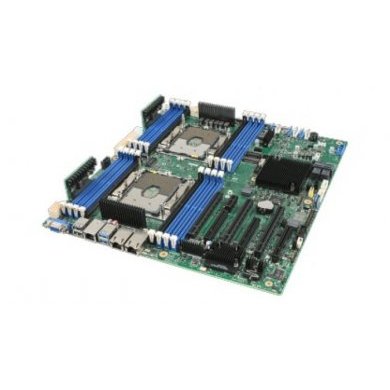

S2600STB Intel Server Board Dual Xeon S2600

Name: S2600STB Intel Server Board Dual Xeon S2600
Brand: Intel
SKU: S2600STB
Price: 9772.00 BRL
Availability: InStock

16 X DDR4 ECC RDIMM/LRDIMM 2133/2400/2666, 10 X SATAIII Raid 0/1/10 (5 optional), Rede Dual 10GbE,

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 9.772,00

à vista no Pix ou Boleto

ou R$ 10.286,25 em 1x no cartão (via site)

ou R$ 10.857,71 no cartão em até 10x sem juros (apenas na loja física)

R$ 9.772,00

à vista no Pix ou Boleto

R$ 10.286,25
em 1x no cartão (via site)

R$ 10.857,71 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem antiestática

Garantia:

12 meses direto com a Net Computadores

NCM:

84733041

Condição:
Novo em embalagem antiestática

Garantia:
12 meses direto com a Net Computadores

NCM: 84733041

Cotação PJ mais de uma unidade

Indicar S2600STB

S2600STB Intel Server Board Dual Xeon S2600
16 X DDR4 ECC RDIMM/LRDIMM 2133/2400/2666, 10 X SATAIII Raid 0/1/10 (5 optional), Rede Dual 10GbE,

Condição de S2600STB: Novo em embalagem antiestática

Garantia de S2600STB: 12 meses direto com a Net Computadores

Especificações

Intel Server Board S2600STB
Code Name Sawtooth

Essentials
Status Launched
Launch Date Q317
Expected Discontinuance 2H20
Limited 3year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
Additional Extended Warranty Details Dual Processor Board Extended Warranty
# of QPI Links 2
Compatible Product Series Intel Xeon Scalable Processors
Board Form Factor SSI EEB (12 x 13 in)
Chassis Form Factor Rack or Pedestal
Socket Socket P
Integrated Systems Available No
Integrated BMC with IPMI IPMI 2.0 with OEM extensions
RackFriendly Board Yes
TDP 205 W
Included Items (1) Intel Server Board S2600STB
Recommended Customer Price N/A
Board Chipset Intel C624 Chipset
Target Market Cloud/Datacenter

Supplemental Information
Embedded Options Available No
Description A standard form factor server board supporting two Intel Xeon Scalable Processors, up to 205 W TDP, 16 DIMMs, and Dual 10GBaseT ports.

Memory Specifications
Memory Types DDR4 ECC RDIMM/LRDIMM 2133/2400/2666
Max # of Memory Channels 12
Max # of DIMMs 16
ECC Memory Supported Yes

Graphics Specifications
Integrated Graphics No
Graphics Output VGA

Expansion Options
PCI Express Revision 3.0
Max # of PCI Express Lanes 96
PCIe x8 Gen 3 3
PCIe x16 Gen 3 3

I/O Specifications
# of USB Ports 7
USB Revision 2.0 e 3.0
Total # of SATA Ports 10
RAID Configuration SW RAID 0/1/10 (5 optional)
# of Serial Ports 1
# of LAN Ports 2
Integrated LAN 2x 10GbE
Firewire No
Integrated SAS Ports 0
Integrated InfiniBand* No

Package Specifications
Max CPU Configuration 2
Low Halogen Options Available See MDDS

Advanced Technologies
Intel Optane Memory Supported Yes
Intel Virtualization Technology for Directed I/O (VTd) Yes
Intel Remote Management Module Support Yes
Intel Node Manager Yes
Intel Quick Resume Technology No
Intel Quiet System Technology No
Intel HD Audio Technology No
Intel Rapid Storage Technology enterprise Yes
Intel Fast Memory Access Yes
Intel Flex Memory Access Yes
Intel I/O Acceleration Technology Yes
Intel Advanced Management Technology Yes
Intel Server Customization Technology Yes
Intel Build Assurance Technology Yes
Intel Efficient Power Technology Yes
Intel Quiet Thermal Technology Yes
Intel Transparent Supply Chain
TPM Version 2.0
Security
