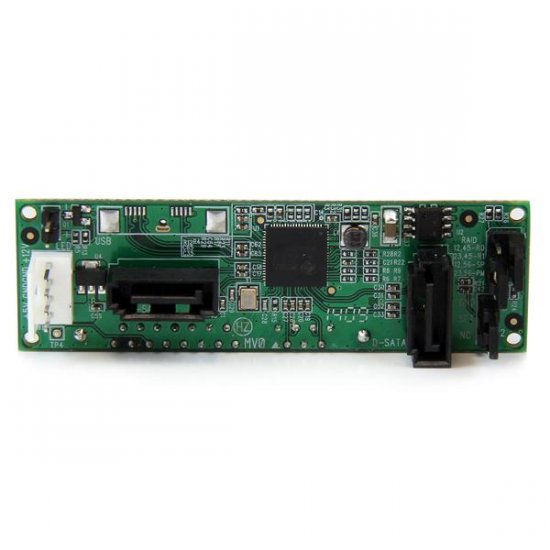

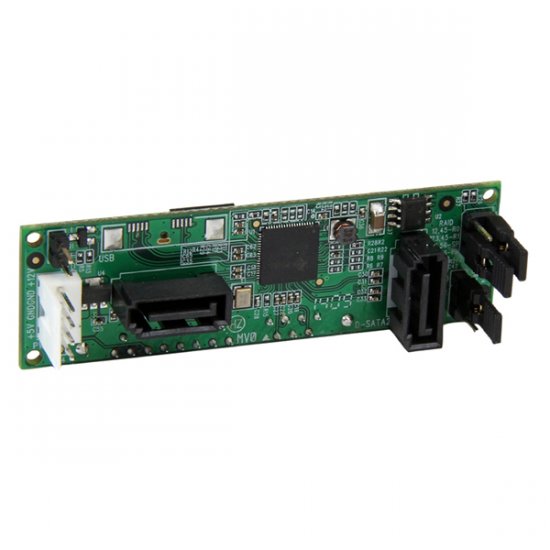

S322SAT3R Controladora StarTech RAID 2 Portas SATA

S322SAT3R Controladora StarTech RAID 2 Portas SATA Interface SATAIII 6Gbps, RAID BIG/JBOD /0/1

Condição de S322SAT3R:
Novo em embalagem comercial

Garantia  de  S322SAT3R:
12 meses direto com a Net Computadores

Hardware
• Chipset ID: Jmicron - JMS562
• Compatible Drive Types (Type and Rate): SATA
• Drive Installation: Fixed
• Interface: SATA
• Number of Drives: 2

Performance
• General Specifications: For JBOD mode, your SATA controller must support Port Multiplier
• Hot Swap Capability: No
• Max Drive Capacity: Currently tested with up to 4TB 7200 RPM hard drives
• Maximum Data Transfer Rate: 6 Gbps
• Port Multiplier: Yes
• Type and Rate: SATA III (6 Gbps)
• RAID: Yes

• Supported RAID Modes:
- BIG (Spanning or Concatenation)
- JBOD - (Just a Bunch of Disks)
- RAID 0 (Striped Disks)
- RAID 1 (Mirrored Disks)

Connector(s)
• Drive Connectors: 2 - SATA (7 pin; Data) Plug
• Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle

Included in Package
• 1 - Internal Drive Mounted Dual SATA Hard Drive RAID Adapter
• 2 - SATA Cables (50cm)
• 1 - LP4 to SATA Power Adapter
• 1 - Installation Guide

Tags de S322SAT3R: S322SAT3R, controladora RAID SATAIII, controladora SATA 6gbps RAID, adaptador sata, StarTech
