DDR3 1333Mhz até 32Gb, 2 Redes Gigabit e Vídeo Integrados, Chassis Suportados: SC5650DPNA e SC5650B
R$ 1.485,00
à vista no Pix ou Boleto
ou R$ 1.562,64 em 1x no cartão (via site)
ou R$ 1.649,46 no cartão em até 10x sem juros (apenas na loja física)
R$ 1.485,00
à vista no Pix ou Boleto
R$ 1.562,64
em 1x no cartão (via site)
R$ 1.649,46 no cartão
em até 10x sem juros
(apenas na loja física)
Condição:
Novo em embalagem comercial
Garantia:
36 meses Assist. Técnica do Fabricante
NCM: 84733041
Condição de S5500BC: Novo em embalagem comercial
Garantia de S5500BC: 36 meses Assist. Técnica do Fabricante
| Supported CPU | |
| CPU Socket Type | Dual LGA 1366 |
| CPU Type | Dual Intel Xeon 5500 series |
| QPI | 4.8 GT/s, 5.8 GT/s, and 6.4 GT/s |
| Chipsets | |
| North Bridge | Intel 5500 |
| South Bridge | Intel ICH10R |
| Memory | |
| Number of DDR3 Slots | 8 × 240pin |
| DDR3 Standard | DDR3 1333 |
| Expansion Slots | |
| PCI Express x8 | 2 half-length PCI Express 2.0 x8 slot |
| PCI Express x4 | 1 half-length PCI Express 2.0 x4 slot (x8 mechanical) 1 half-length PCI Express 1.0 x4 slot |
| PCI Slots | 1 half-length PCI 32/33 5V slot |
| Storage Devices | |
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | Integrated SATA RAID levels 0/1/10 Optional SW RAID 5 with activation key |
| Onboard Video | |
| Onboard Video Chipset | Server Engine LLC Pilot II |
| Onboard LAN | |
| LAN Chipset | Intel 82574L |
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82567LM |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Dual 10/100/1000Mbps |
| Rear Panel Ports | |
| COM | 1 |
| Video Ports | D-Sub |
| USB | 4 x USB 2.0 |
| Physical Spec | |
| Form Factor | SSI CEB-leveraged |
| Dimensions | 12" x 10.5" |
| Features | |
| Features | 1U rack: 1 low profile half-length PCI Express 2.0 x8 riser in slot 6 |
Maiores detalhes de S5500BC no site do fabricante:
http://www.intel.com/p/pt_BR/support/highlights/server/s5500bc
Vídeo de S5500BC Board Intel Server Board Dual LGA1366
Tags de S5500BC: S5500BCR, S5500BC, Placas Mãe, Intel LGA 1366, Intel, server board, intel server board, intel serverboard, serverboard, Motherboard Server, Intel

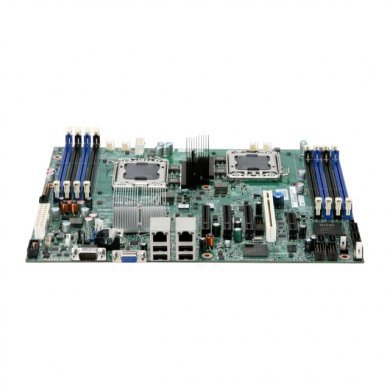

S5500BC Board Intel Server Board Dual LGA1366 DDR3 1333Mhz até 32Gb, 2 Redes Gigabit e Vídeo Integrados, Chassis Suportados: SC5650DPNA e SC5650B
Condição de S5500BC:
Novo em embalagem comercial
Garantia de S5500BC:
36 meses Assist. Técnica do Fabricante
| Supported CPU | |
| CPU Socket Type | Dual LGA 1366 |
| CPU Type | Dual Intel Xeon 5500 series |
| QPI | 4.8 GT/s, 5.8 GT/s, and 6.4 GT/s |
| Chipsets | |
| North Bridge | Intel 5500 |
| South Bridge | Intel ICH10R |
| Memory | |
| Number of DDR3 Slots | 8 × 240pin |
| DDR3 Standard | DDR3 1333 |
| Expansion Slots | |
| PCI Express x8 | 2 half-length PCI Express 2.0 x8 slot |
| PCI Express x4 | 1 half-length PCI Express 2.0 x4 slot (x8 mechanical) 1 half-length PCI Express 1.0 x4 slot |
| PCI Slots | 1 half-length PCI 32/33 5V slot |
| Storage Devices | |
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | Integrated SATA RAID levels 0/1/10 Optional SW RAID 5 with activation key |
| Onboard Video | |
| Onboard Video Chipset | Server Engine LLC Pilot II |
| Onboard LAN | |
| LAN Chipset | Intel 82574L |
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82567LM |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Dual 10/100/1000Mbps |
| Rear Panel Ports | |
| COM | 1 |
| Video Ports | D-Sub |
| USB | 4 x USB 2.0 |
| Physical Spec | |
| Form Factor | SSI CEB-leveraged |
| Dimensions | 12" x 10.5" |
| Features | |
| Features | 1U rack: 1 low profile half-length PCI Express 2.0 x8 riser in slot 6 |
Maiores detalhes de S5500BC no site do fabricante:
http://www.intel.com/p/pt_BR/support/highlights/server/s5500bc
Vídeo de S5500BC Board Intel Server Board Dual LGA1366
Tags de S5500BC: S5500BCR, S5500BC, Placas Mãe, Intel LGA 1366, Intel, server board, intel server board, intel serverboard, serverboard, Motherboard Server, Intel
