SATA-TO-MINI-PCIE Conversor Mini PCI-e para SATA 3.0 6Gbs

SATA-TO-MINI-PCIE Conversor Mini PCI-e para SATA 3.0 6Gbs

Condição de SATA-TO-MINI-PCIE:
Novo em embalagem comercial

Garantia  de  SATA-TO-MINI-PCIE:
12 meses direto com a Net Computadores

• Compatible with PCI-E Mini card Specification Revision 1.2, PCI-Express 2.0 Base Specification Compliant
• Compliant with Serial ATA AHCI (advanced host controller interface) Specification Rev 1.0, Supports SATA 3.0 transfer rate up to 6Gbps
• ASM1061 Chipset, Port Multiplier FIS-based and Command-based switching supported.Hot plug and Hot swap SATA ports. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

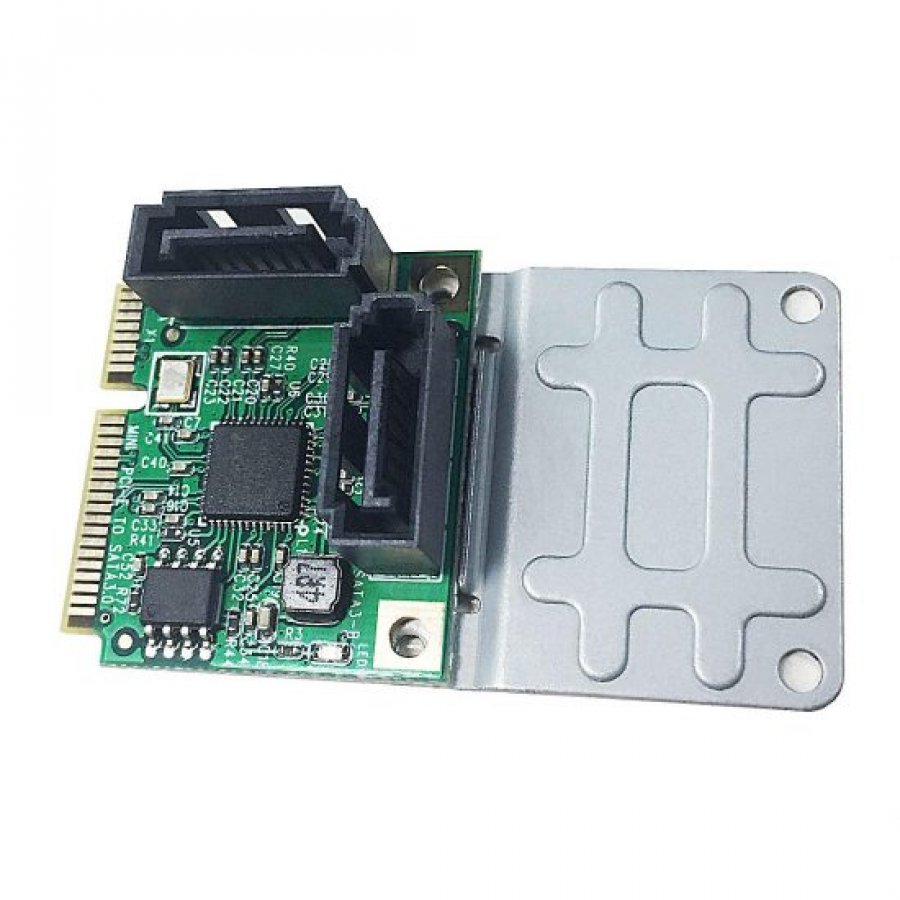

• Compatible with Half-Mini (F1) card Type form Factor. To fit Full-Mini (F1) slot, Iron sheet accessories is included.
• Compatible with Windows XP/7/8/10/MAC/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.

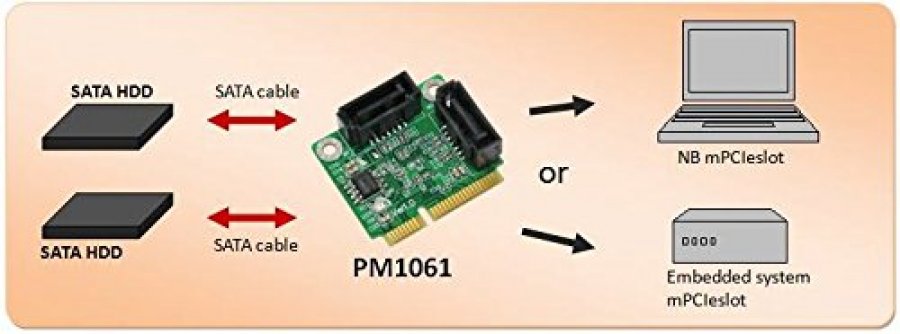

  Our MiniPCI-E to SATA 3.0 adapter offers you a better option and convenient way to add 2 SATA III devices to a small form factor system. Help you to expand the current system easily.

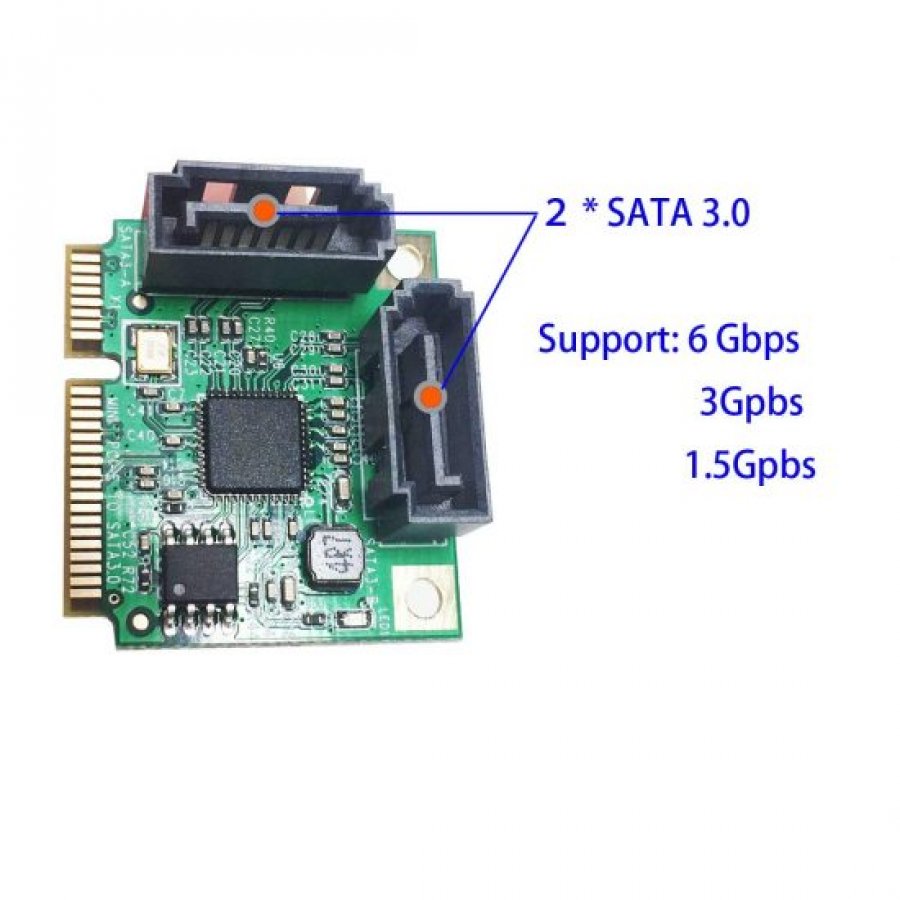

• Product ports: 2 x SATA 3.0(Max 6.0 Gbps)

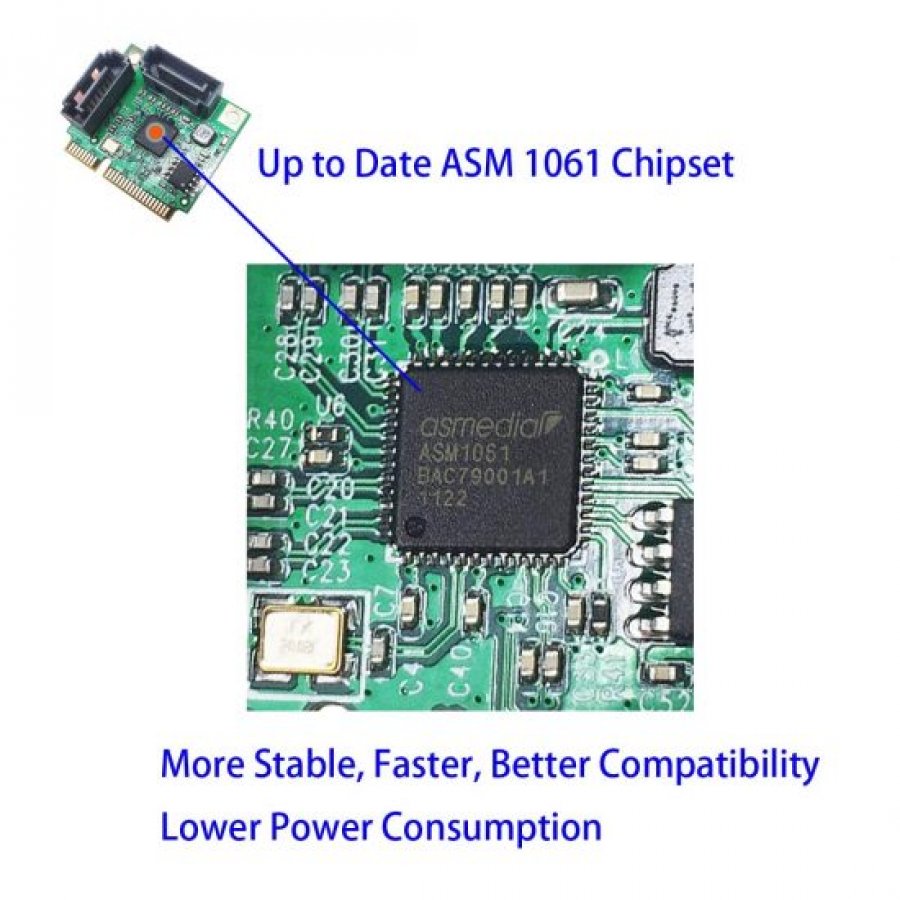

• Main chip: ASM1061
• Size: 1.18 x 1.10 x 0.67-
• Applicable slot: Mini PCI-E
• O/S Supported: Windows(R) XP/Server2003/Vista/7/8 ( 32 / 64 bit ) / MAC / Iinux
• Note:Non support RAID mode.

• 1 x MiniPCI-E to SATA 3.0 adapter
• 1 x Adapter Board
• 1 x Pack of Screw
