SC-SA0K11-S1 SIIG Controldora 2 Portas e-SATA / SATA 6Gbs

Name: SC-SA0K11-S1 SIIG Controldora 2 Portas e-SATA / SATA 6Gbs
Brand: SIIG Inc
SKU: SC-SA0K11-S1
Price: 146.00 BRL
Availability: InStock

PCI-E x1 - 2 Portas e-SATA, 2 Portas Internas SATA 6Gbs, 1 Porta IDE ATA 133 - RAID 0, 1

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 146,00

à vista no Pix ou Boleto

ou R$ 153,22 em 1x no cartão (via site)

ou R$ 161,73 no cartão em até 10x sem juros (apenas na loja física)

R$ 146,00

à vista no Pix ou Boleto

R$ 153,22
em 1x no cartão (via site)

R$ 161,73 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 0

Cotação PJ mais de uma unidade

Indicar SC-SA0K11-S1

SC-SA0K11-S1 SIIG Controldora 2 Portas e-SATA / SATA 6Gbs
PCI-E x1 - 2 Portas e-SATA, 2 Portas Internas SATA 6Gbs, 1 Porta IDE ATA 133 - RAID 0, 1

Condição de SC-SA0K11-S1: Novo em embalagem comercial

Garantia de SC-SA0K11-S1: 12 meses direto com a Net Computadores

SIIG’s DP SATA 6Gb/s PCIe i/e is a high performance SATA host controller designed to add two (internal or external) Serial ATA 6Gb/s and one internal Parallel ATA channels to your PCIe-equipped computer. The SATA connectors allow connecting up to 2 hard disks - internal, external (eSATA) or mixed. This controller delivers data transfer rates up to 6Gb/s for SATA and 150Mb/s for PATA connectors and supports RAID 0 (stripe) and RAID 1 (mirror) modes on the SATA hard disk drives, as well as ATA and ATAPI commands. The DP SATA 6Gb/s PCIe i/e host controller is the ideal solution to enable fast, large volume data transferring for your bandwidth-hungry applications.
The DP SATA 6Gb/s PCIe i/e host controller is fully compliant with PCI Express Base Specification Revision 2.0, Serial ATA specification revision 3.0, is FCC Class B (DoC) and CE regulatory approved and RoHS-compliant. It supports a wide variety of Windows operating systems and is backed by SIIG’s.

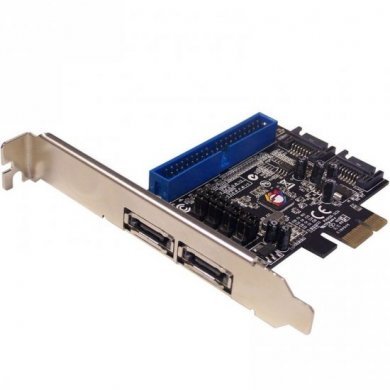

PCI-Express (PCIe) x1 board with two SATA 6Gb/s and one PATA connectors
Installs in any available PCIe slot
Dual Profile design to install in standard height and low profile chassis with included brackets
Connect up to 2 SATA and 2 PATA hard disk drives
Flexible SATA connector design -- configured as 2 internal, 2 external (eSATA) or 1 internal & 1 external
Supports RAID 0 & RAID 1 (SATA hard disk drives only)

Specifications:
Compliant with PCI Express 2.0 specifications
Compliant with Serial ATA specification, revision 3.0
Supports Serial ATA NCQ Streaming and Queue Management Command
Supports AHCI 1.0 and IDE programming interface
Supports ATA/ATAPI-7 specification and ATA and ATAPI commands
Chipset: Marvell 88SE9128

Ports: Supports up to 2 SATA drives of any combination
2x internal SATA 6Gb/s
2x external SATA (eSATA) 6Gb/s
1x internal PATA

Transfer rates:
SATA: 6Gb/s
PATA: 150Mb/s

Operating environment:
Temperature: 0 to 60 degrees C
Humidity: 10% to 90%, RH

Storage environment:
Temperature: -20 to 60 degrees C
Humidity: 10% to 90%, RH
Dimensions: 3.5" (W) x 4.75" (H) x 0.75" (D)

Product Name	2 Port Internal SATA External ESATA PATA PCIE 6GB
Product Type	SATA/ATA Controller
Ports	2 x 7-pin Female Serial ATA/600 - External SATA 2 x 7-pin Female Serial ATA/600 - Serial ATA Internal 1 x 44-pin Male Ultra ATA/133 (ATA-7) - ATA Internal
RAID Supported	Yes
Packing	Box
Form Factor	Dual-profile Plug-in Card
Product Model	SC-SA0K11-S1
Data Transfer Rate	150 MBps Up to 600 MBps
Package Type	OEM
Dimensions	3.5" Height x 4.8" Width x 0.8" Thickness
RAID Levels	0 1
Packaged Quantity	1
Host Interface	PCI Express x1
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Country of Origin	China
Interfaces	Serial ATA/600 Ultra ATA/133 (ATA-7)
Drive Supported	2
Platform Supported	PC
Number of Ports	2 1
