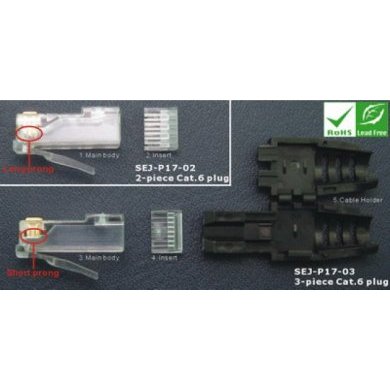

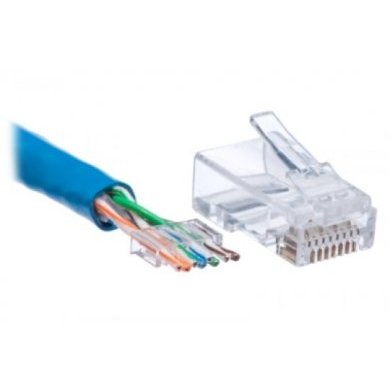

SEJ-P17-03 Kit Conector RJ45 CAT6 50µ + Capa

Conector RJ45 + Guia + Capa cor Preto (Pacote com 50 Peças / 50 Kits)

SEJ-P17-03 - OEM
SEJ-P17-03 Kit Conector RJ45 CAT6 50µ + Capa
SEJ-P17-03 Kit Conector RJ45 CAT6 50µ + Capa
clique para ampliar
*As imagens podem ser ilustrativas
SEJ-P17-03 Kit Conector RJ45 CAT6 50µ + Capa
SEJ-P17-03 Kit Conector RJ45 CAT6 50µ + Capa
SEJ-P17-03 Kit Conector RJ45 CAT6 50µ + Capa

R$ 220,00

à vista no Pix ou Boleto

ou R$ 230,60 em 1x no cartão (via site)

ou R$ 243,42 no cartão em até 10x sem juros (apenas na loja física)

R$ 220,00

à vista no Pix ou Boleto

R$ 230,60
em 1x no cartão (via site)

R$ 243,42 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
85176254

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176254

SEJ-P17-03 Kit Conector RJ45 CAT6 50µ + Capa
Conector RJ45 + Guia + Capa cor Preto (Pacote com 50 Peças / 50 Kits)

Condição de SEJ-P17-03:    Novo em embalagem comercial

Garantia  de  SEJ-P17-03:     12 meses direto com a Net Computadores




Characteristic
Electrical Spec.

Comply and exceeds the Cat.6 requirements in EIA/TIA-568-B.2-2002, ISO/IEC11801-2002

Compatible to standard sockets

Supports transmission frequency not less 350MHz

International certificated quality

Current Rating: 2Amps (@20C, 250V)

Insulation Resistance:  100M

Max. DC Resistance:  0.1

Impedance: 20

Dielectric 500VAC

Complied to HC-3013A-VH8-C6
Mechanical Spec.
Physical Spec.

Insertion Life:  750 times

Contact Force:  100g
(use with FCC certificated plugs)

Min. Retention Force:  20Lbs

Rated Temp.: -40F~125F(-40C~60C)

Plastic: High-impact, flame-retardant UL-rated 94V-2 thermoplastic (Body: PC, Cable Holder: Nylon)

ContactPhosphor Bronze with 50 Micro-inches of lubricated gold plating over 100 Micro-inches Nickel under plate.

Connector: 3-prong blade inserting connect, accept 23, 24 e 26 AWG solid or stranded wire

Wire Diameter: <1.02 mm (each wire)

Cable Diameter: <6.0 mm (Jacket OD)

Twisted Pair Diameter: <2.5 mm

Tags de SEJ-P17-03: SEJ-P17-03, SEJ-P17-02, Cat.6 RJ45 Modular Plug, 8P8C 50 Micron Gold Plated, RJ-45 Cat6, RJ45 Cat.6, Conector CAT6, Conector CAt.6, Conector Gigabit Cat6, OEM, OEM

SEJ-P17-03 Kit Conector RJ45 CAT6 50µ + Capa Conector RJ45 + Guia + Capa cor Preto (Pacote com 50 Peças / 50 Kits)

Condição de SEJ-P17-03:
Novo em embalagem comercial

Garantia  de  SEJ-P17-03:
12 meses direto com a Net Computadores



Characteristic
Electrical Spec.

Comply and exceeds the Cat.6 requirements in EIA/TIA-568-B.2-2002, ISO/IEC11801-2002

Compatible to standard sockets

Supports transmission frequency not less 350MHz

International certificated quality

Current Rating: 2Amps (@20C, 250V)

Insulation Resistance:  100M

Max. DC Resistance:  0.1

Impedance: 20

Dielectric 500VAC

Complied to HC-3013A-VH8-C6
Mechanical Spec.
Physical Spec.

Insertion Life:  750 times

Contact Force:  100g
(use with FCC certificated plugs)

Min. Retention Force:  20Lbs

Rated Temp.: -40F~125F(-40C~60C)

Plastic: High-impact, flame-retardant UL-rated 94V-2 thermoplastic (Body: PC, Cable Holder: Nylon)

ContactPhosphor Bronze with 50 Micro-inches of lubricated gold plating over 100 Micro-inches Nickel under plate.

Connector: 3-prong blade inserting connect, accept 23, 24 e 26 AWG solid or stranded wire

Wire Diameter: <1.02 mm (each wire)

Cable Diameter: <6.0 mm (Jacket OD)

Twisted Pair Diameter: <2.5 mm

Tags de SEJ-P17-03: SEJ-P17-03, SEJ-P17-02, Cat.6 RJ45 Modular Plug, 8P8C 50 Micron Gold Plated, RJ-45 Cat6, RJ45 Cat.6, Conector CAT6, Conector CAt.6, Conector Gigabit Cat6, OEM, OEM
