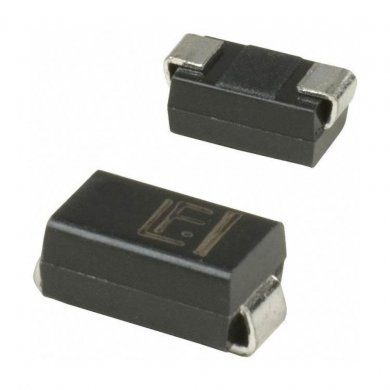

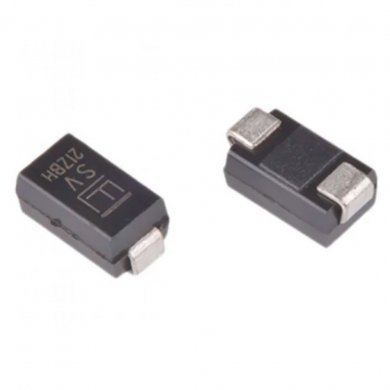

SMAJ200A KIT 10 TVS DIODO SUPRESSOR ESD 400W 200V 324V

Name: SMAJ200A KIT 10 TVS DIODO SUPRESSOR ESD 400W 200V 324V
Brand: LittelFuse
SKU: SMAJ200A
Price: 20.00 BRL
Availability: InStock

DO-214AC-2 5% Uni-Directional (Kit com 10 unidades)

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 20,00

à vista no Pix ou Boleto

ou R$ 20,12 em 1x no cartão (via site)

ou R$ 21,24 no cartão em até 10x sem juros (apenas na loja física)

R$ 20,00

à vista no Pix ou Boleto

R$ 20,12
em 1x no cartão (via site)

R$ 21,24 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

7 dias troca. Sem garantia após soldado

NCM:

85044060

R$ 20,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
0 meses direto com a Net Computadores

NCM: 85044060

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar SMAJ200A

SMAJ200A KIT 10 TVS DIODO SUPRESSOR ESD 400W 200V 324V
DO-214AC-2 5% Uni-Directional (Kit com 10 unidades)

Condição de SMAJ200A: Novo em embalagem comercial

Garantia de SMAJ200A: 7 dias troca. Sem garantia após soldado

Outros PNs para este item: SMAJ200ALFDKR-ND

The SMAJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Features:

HalogenFree and RoHS compliant
For surface mounted applications in order to optimize board space
Low profile package
Builtin strain relief
Glass passivated junction
Low Inductance
Excellent clamping capability
Repetition Rate (duty cycle): 0.01%
Fast response time: typically less than 1.0ps from 0 Volts to V(BR) for unidirectional types.
Typical IR less than 1mA above 10V
High temperature soldering: 250 degrees C/10 seconds at terminals
Plastic package has Underwriters Laboratory Flammability 94VO

Manufacturer:	Littelfuse
Product Category:	ESD Suppressors / TVS Diodes
Product Type:	TVS Diodes
Polarity:	Unidirectional
Working Voltage:	200 V
Number of Channels:	1 Channel
Termination Style:	SMD/SMT
Package / Case:	DO214AC2
Breakdown Voltage:	224 V
Clamping Voltage:	324 V
Pppm Peak Pulse Power Dissipation:	400 W
Vesd Voltage ESD Contact:	30 kV
Vesd Voltage ESD Air Gap:	30 kV
Cd Diode Capacitance:
Ipp Peak Pulse Current:	1.2 A
Minimum Operating Temperature:	65 C
Maximum Operating Temperature:	150 C
Series:	SMAJ
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Littelfuse
Pd Power Dissipation:	3.3 W

Maiores detalhes de SMAJ200A no site do fabricante:
https://www.littelfuse.com/media?resourcetype=datasheetseitemid=75e32973-b177-4e

Tags de SMAJ200A: SMAJ200ALFDKR-ND, SMAJ200A, SM6T27A, SM6T30A, diodo supressor de TV, diodo de TV supressor, SM6T27A-E3/5B, EP GP 721, diodo SV de TV, LittelFuse

SMAJ200A KIT 10 TVS DIODO SUPRESSOR ESD 400W 200V 324V DO-214AC-2 5% Uni-Directional (Kit com 10 unidades)

Condição de SMAJ200A:
Novo em embalagem comercial

Garantia de SMAJ200A:
7 dias troca. Sem garantia após soldado

Outros PNs para este componente: SMAJ200ALFDKR-ND

The SMAJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Features:

HalogenFree and RoHS compliant
For surface mounted applications in order to optimize board space
Low profile package
Builtin strain relief
Glass passivated junction
Low Inductance
Excellent clamping capability
Repetition Rate (duty cycle): 0.01%
Fast response time: typically less than 1.0ps from 0 Volts to V(BR) for unidirectional types.
Typical IR less than 1mA above 10V
High temperature soldering: 250 degrees C/10 seconds at terminals
Plastic package has Underwriters Laboratory Flammability 94VO

Manufacturer:	Littelfuse
Product Category:	ESD Suppressors / TVS Diodes
Product Type:	TVS Diodes
Polarity:	Unidirectional
Working Voltage:	200 V
Number of Channels:	1 Channel
Termination Style:	SMD/SMT
Package / Case:	DO214AC2
Breakdown Voltage:	224 V
Clamping Voltage:	324 V
Pppm Peak Pulse Power Dissipation:	400 W
Vesd Voltage ESD Contact:	30 kV
Vesd Voltage ESD Air Gap:	30 kV
Cd Diode Capacitance:
Ipp Peak Pulse Current:	1.2 A
Minimum Operating Temperature:	65 C
Maximum Operating Temperature:	150 C
Series:	SMAJ
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Littelfuse
Pd Power Dissipation:	3.3 W
