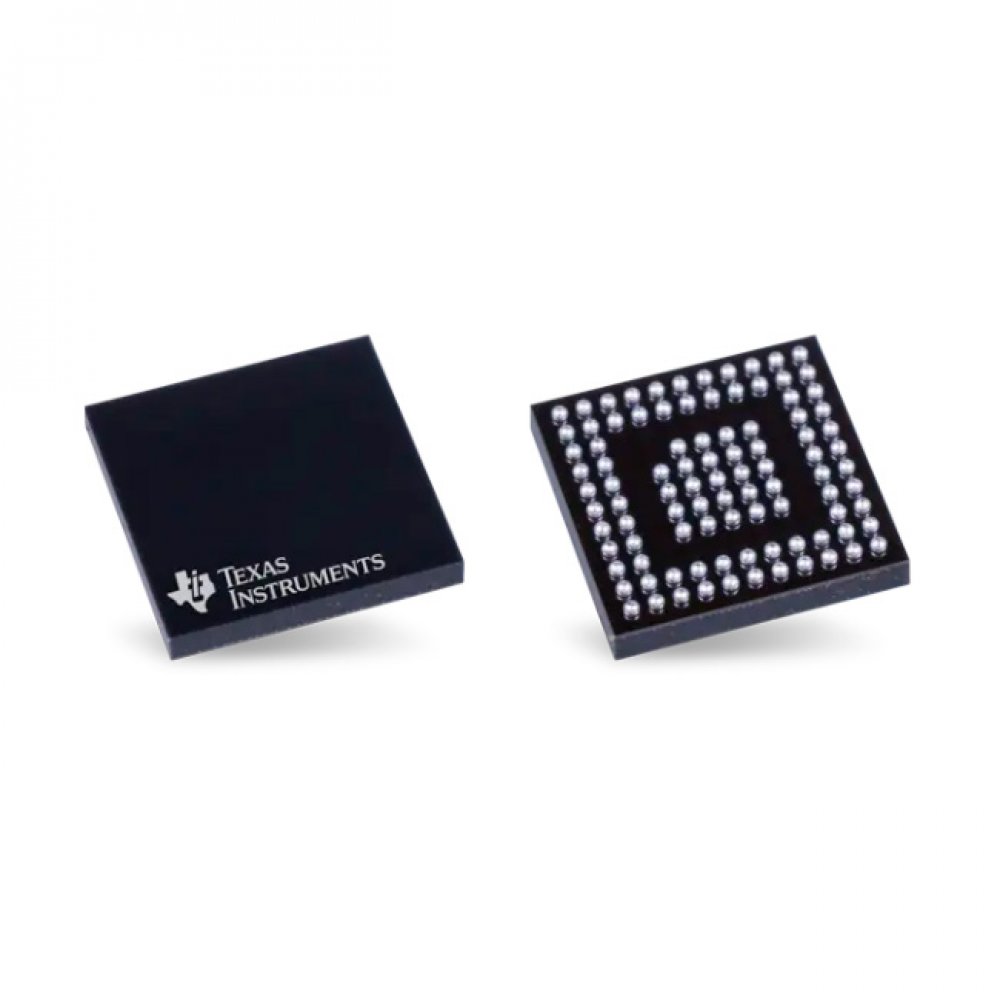

SN1804044ZBHR USB Type-C USB-PD Controller, Power Switch

Name: SN1804044ZBHR USB Type-C USB-PD Controller, Power Switch
Brand: Texas Instruments
SKU: SN1804044ZBHR
Price: 42.00 BRL
Availability: InStock

equivalente TPS65982 (ver TPS65982)

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 42,00

à vista no Pix ou Boleto

ou R$ 44,14 em 1x no cartão (via site)

ou R$ 46,59 no cartão em até 10x sem juros (apenas na loja física)

R$ 42,00

à vista no Pix ou Boleto

R$ 44,14
em 1x no cartão (via site)

R$ 46,59 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Cotação PJ mais de uma unidade

Indicar SN1804044ZBHR

SN1804044ZBHR USB Type-C USB-PD Controller, Power Switch
equivalente TPS65982 (ver TPS65982)

Condição de SN1804044ZBHR: Novo em embalagem comercial

Garantia de SN1804044ZBHR: 3 meses direto com a Net Computadores

The SN1804044ZBHR device is a stand-alone USB Type-C and power-delivery (PD) controller providing cable-plug and orientation detection at the USB TypeC connector. Upon cable detection, the SN1804044ZBHR device communicates on the CC wire using the USB PD protocol. When cable detection and USB PD negotiation are complete, the SN1804044ZBHR device enables the appropriate power path and configures alternate mode settings for internal and (optional) external multiplexers. The mixed-signal front-end on the CC pins advertises default (500 mA), 1.5 A or 3 A for Type-C power sources, detects a plug event and determines the USB Type-C cable orientation, and autonomously negotiates USB PD contracts by adhering to the specified biphase marked coding (BMC) and physical layer (PHY) protocol.

Features
- USB Power Delivery (PD) Controller
- Mode Configuration for Source (Host), Sink (Device), or Source-Sink
- Biphase Marked Encoding/Decoding (BMC)
- Physical Layer (PHY) Protocol
- Policy Engine
- Configurable at Boot and Host-Controlled
- Supports PD2.0 and PD3.0

Specifications.
- USB Type-C Specification Compliant
- Detect USB Cable Plug Attach
- Cable Orientation and Role Detection
- Assigns CC and VCONN Pins
- Advertises Default, 1.5 A or 3 A for Type-C

Power
Port-Power Switch
- 5-V, 3-A Integrated Switch to VBUS for Type-C Power
- 5-V, 600-mA Switches for VCONN
- Overcurrent Limiter, Overvoltage Protector
- Slew-Rate Control
- Hard Reset Support

- Port-Data Multiplexer
- USB 2.0 HS Data, UART Data, and USB LowSpeed Endpoint
- Sideband Use Data for Alternate Modes (DisplayPort and Thunderbolt-)

- Power Management
- Gate Control and Current Sense for External 5-V to 20-V, 5-A Bidirectional Switch (Back-toBack NFETs)
- Power Supply from 3.3-V or VBUS Source
- 3.3-V LDO Output for Dead Battery

Applications
- Notebook Computers
- Tablets and Ultrabooks
- Docking Systems
- Charger Adapters
- USB PD Hosts, Devices, and Dual-Role Ports
- USB PD-Enabled Bus-Powered Devices
- DisplayPort, Thunderbolt, and HDMI

Maiores detalhes de SN1804044ZBHR no site do fabricante:

Tags de SN1804044ZBHR: TPS65982ABZBHR, TPS65982, SN1804044ZBHR, SN1804044, SN1804044Z, controlador USB-C, driver ISB-C, driver ci USB, ci controlador de USB tipo C, Texas Instruments
