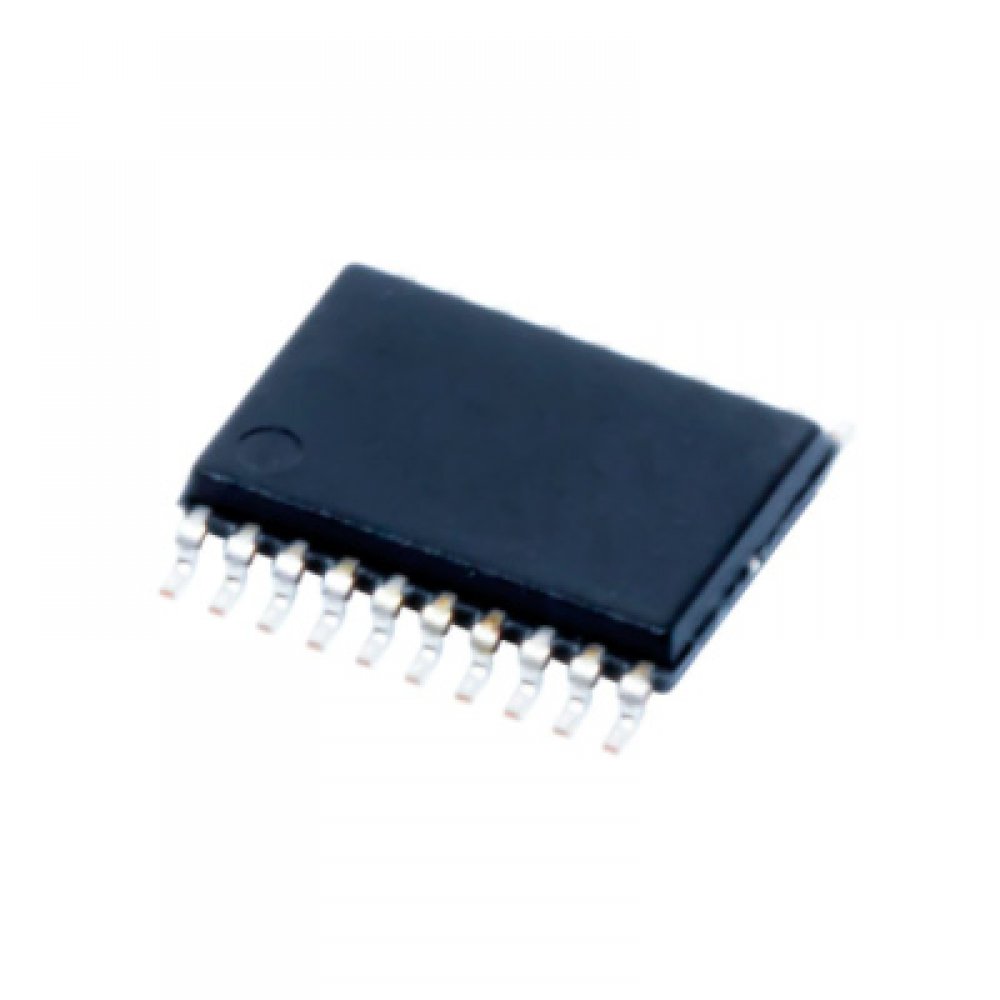

SN74AHCT244PWR Octal buffer line driver Tri-State outputs

SN74AHCT244PWR Octal buffer line driver Tri-State outputs SOIC-20

Condição de SN74AHCT244PWR:
Novo em embalagem comercial

Garantia  de  SN74AHCT244PWR:
3 meses direto com a Net Computadores

• Wide supply voltage range from 2.0 V to 5.5 V
• Balanced propagation delays
• All inputs have Schmitt-trigger action
• Overvoltage tolerant inputs to 5.5 V
• High noise immunity
• CMOS low power dissipation
• Input levels:
  • For 74AHC244: CMOS level
  • For 74AHCT244: TTL level
• ESD protection:
  • HBM JESD22-A114F exceeds 2000 V
  • MM JESD22-A115-A exceeds 200 V
  • CDM JESD22-C101E exceeds 1000 V
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
• Multiple package options
• Specified from -40 C to 85 C and from -40 C to 125 C

Maiores detalhes de SN74AHCT244PWR no site do fabricante:
https://www.ti.com/lit/ds/symlink/sn74ahct244.pdf?ts=1642797832423&ref_url=https
