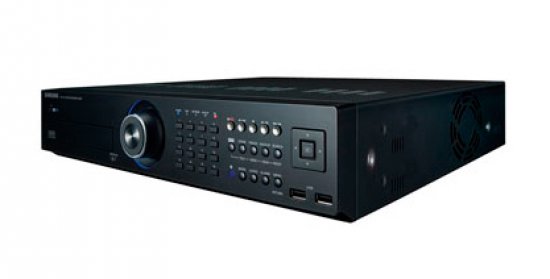

SRD-1652D DVR Samsung 16 Canais H.264 500GB Padrao

Suporta até 4 HDs, Gravador de DVD Integrado

SRD-1652D DVR Samsung 16 Canais H.264 500GB Padrao

*As imagens podem ser ilustrativas

DVR Samsung 16 Canais H.264 500GB Padrao

avise-me quando disponível

R$ 8.449,00

à vista no Pix ou Boleto

ou R$ 8.893,61 em 1x no cartão (via site)

ou R$ 9.387,70 no cartão em até 10x sem juros (apenas na loja física)

R$ 8.449,00

à vista no Pix ou Boleto

R$ 8.893,61
em 1x no cartão (via site)

R$ 9.387,70 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84717020

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84717020

Cotação PJ mais de uma unidade

Indicar SRD-1652D

SRD-1652D DVR Samsung 16 Canais H.264 500GB Padrao
Suporta até 4 HDs, Gravador de DVD Integrado

Condição de SRD-1652D: Novo em embalagem comercial

Garantia de SRD-1652D: 12 meses direto com a Net Computadores

o DVR SRD-1652D é uma solução de gravação econômica com Linux embutido e tecnologia codec H.264. Todos os canais podem gravar simultaneamente a taxa de quadros total (30 fps NTSC / 25 fps PAL) em resolução CIF. O SRD-1652D vem equipado com um gravador de DVD e suporte para até quatro discos rígidos SATA internos.
Principais Características:

• DVR em tempo real 16CH
• Embedded Linux H.264 Compressão
• Até 480 fps (NTSC) / 400 fps (PAL) @ CIF
• Até 4CH entradas de áudio e saída de áudio 1CH Saída de vídeo • Combinado BNC e VGA para monitor principal
• Até 4 HDs internos
• Livre DDNS
• Suporte para telefone inteligente (Android, i-Phone)
• Built-in DVD-RW
• Divide e exporta pequenas partes de um vídeo gravado - Brilho e Contraste controle via SmartViewer

Display
Video Inputs	16 Composite video 0.5-1 Vpp
Video Resolution	NTSC: 704 x 480 / PAL: 704 x 576
Frame Rate	Live - NTSC: 480 ips / PAL: 400 ips
Resolution	Live - NTSC: 704 x 480 / PAL: 704 x 576
Display	Multi-screen - 1 / 4 / 6 / 8 / 9 / 13 / 16 / PIP

Performance
Operating System	Embedded - Linux
Compression	H.264
Recording	Record rate - NTSC : Up to 120 fps @ 704 x 480 NTSC : Up to 240 fps @ 704 x 240 NTSC : Up to 480 fps @ 352 x 240 PAL: Up to 100 fps @ 704 x 576 PAL: Up to 200 fps @ 704 x 288 PAL: Up to 400 fps @ 352 x 288
Recording Mode	NTSC: Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.9 / 1.9 / 3.8 / 7.5 / 15 / 30 fps) PAL: Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.8 / 1.6 / 3.1 / 6.2 / 12.5 / 25 fps)
Overwrite Modes	Continuous
Pre-alarm	Up to 5 sec
Post-alarm	Up to 6 hours (5, 10, 20, 30 sec; 1, 3, 5, 10, 20 min; 1, 2, 3, 4, 5, 6 hour)
Search Modes	Date/Time, Event, Back up, Position, Motion (all search mode include preview function)
Playback Function	Fast forward / backward, Slow forward / backward, Step forward / backward
Transmission Speed	CIF 120/100 fps
Bandwidth	8 Mbps, 2 / 1.5 / 1 Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 Kbps
Bandwidth control	Selectable
Multi-stream	H.264 (4CIF / CIF)
Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
Network Protocol Support	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring	NET-i viewer, SmartViewer, Webviewer

Smartphone
Smartphone Compatibility	Android (not compatible with all Android phones), i-Phone
Smartphone Protocol Support	RTSP/RTP (UDP), CGI, HTTP
Smartphone Transmission Speed	Wi-Fi: CIF maximum 4 fps (single channel) / CIF maximum 4 fps (quad channel) 3G: CIF maximum 4 fps (single channel) / CIF maximum 4 fps (quad channel)
Max. Remote Users	Live - 1

Storage
Internal HDD	Up to 4 SATA HDDs
DVD Writer (Back up)	Yes
USB (Back up)	2 USB ports
File Format	Backup - AVI, BU (DVR player), EXE (Include player)

Security
Password Protection	1 Admin for 10 Groups; 20 users per group. User can be assigned authority for function
Data Authentication	Watermark

Interface
VGA	Monitor - 1 VGA (800 x 600, 1024 x 768, 1280 x 1024)
Composite	Main: 1 BNC, 1.0 Vp-p, 75 ohm Spot: Analog spot (1 BNC, 1 Vp-p, 75 ohm)
Audio Inputs	4 Line in
Audio Input/Output	4 Line in (built-in 4CH, RCA / 1CH line out, RCA)
Audio Compression	ADPCM
Sampling Rate	16 KHz
Alarm Inputs	Terminal 16 inputs (NO/NC), Terminal 1 inputs (Alarm Reset), Terminal 4 relay outputs (NO/NC) Rating: 24 VDC / 1 A, 125 VAC / 0.5 A
Alarm Outputs	Terminal 8 inputs (NO/NC), Terminal 1 inputs (Alarm Reset), Terminal 4 relay outputs (NO/NC) Rating: 24 VDC / 1 A, 125 VAC / 0.5 A
Notification	Remote - Notification via e-mail

Connections
Ethernet	1 RJ-45 10/100/1000 Base-T
Serial Interface	RS-232
PTZ Control	Interface - RS-485
PTZ Control	Keyboard - RS-232 / RS-485 for PTZ, Samsung system keyboard
USB	USB 2.0, 2 ports (Front)
Application	Mouse, Remote controller support
Communication Protocol	Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, Vicon
PTZ Camera Control	DIAMOND, ERNA, KALATEL, VCL TP, VICON

General
Languages	Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thailandais, Rumanian, Serbian, Croatian, Hungarian, Greek

Electrical
Power Consumption	Maximum 60 W (With 1 x HDD)
Input Voltage	100 to 240 VAC ±10%, 50/60 Hz, Autoranging

Environmental
Operating Temperature	32 to 104° F (0 to +40° C)
Operating Humidity	20% to 85% RH

Mechanical
Rack Mount	2ea kit
Dimensions (WxHxD)	17.32 x 3.46 x 16.93" (440 x 88 x 430 mm)
Weight	With hard disks: 16.53 lb (7.5 kg)
