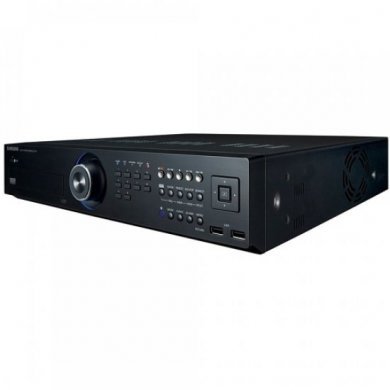

Substantial video content can be stored on up to 5 internal Hard Disk Drives (HDDs) with a storage capacity of 500GB. Faster and reliable data transfer rates are enabled via the HDD/DVD SATA interface. Data backups can be taken on mass storage HDDs at high speed via the USB 2.0 and e-SATA ports. Also integrated into the SRD-870DC-1TB, is a web viewer and a DVD writer. You can search the recorded content using multiple options such as time, event, backup, POS and motion detection. Also offered are the Dynamic DNS and email-based event notification features. The SRD-870DC-1TB is compatible with the Samsung SmartViewer and NET-I viewer.
Specifications
Display
Video Inputs: 8 Composite video 0.5-1 Vpp, 75 ohm automatic termination
Video Resolution: 704x480 NTSC
Frame Rate: 240FPS NTSC
Resolution: 704x480 NTSC
Display: Multi-screen - 1 / 4 / 6 / 8 / 9 / 13 / PIP
Storage: 1TB
Performance
Operating System: Embedded - Linux
Compression: H.264
Recording Rate
NTSC : Up to 240 fps @ 704 x 480
NTSC : Up to 240 fps @ 704 x 240
NTSC : Up to 240 fps @ 352 x 240
Recording Modes:
Manual, Schedule (Continuous/Event), Event(Pre/Post), Time lapse (0.9/1.9/3.8/7.5/15/30 fps)
Manual, Schedule (Continuous/Event), Event(Pre/Post), Timelapse (0.8/1.6/3.1/6.2/12.5/25 fps)
Overwrite Modes: Continuous
Pre-alarm: Up to 30sec (5, 10, 20, 30 sec)
Post-alarm: Up to 6 hour. (5,10,20,30 sec,1,3,5,10,20 min,1,2,3,4,5,6hour)
Search Modes: Date/time, Event, Back up, Pos, Motion (*All Search Included Preview Function)
Playback Function: Fast Forward/Backward , Slow Forward/Backward , Step Forward/Backward
Transmission Speed: Up to (15)Mbps, Unlimited(4M)/2/1.5/1 Mbps/800/600/500/40 0/300/200/100/50 kbps
Bandwidth control: Automatic
Max. Remote Users: Search(3)/Live Unicast(10)/Live Multicast(20)
Protocol Support: TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Multi-stream: H.264(4CIF/CIF)
Max. Remote Users: Search 3 / Live unicast 10 / Live multicast 20
Monitoring: Net-i viewer, SVM-S1, Smart viewer, Web viewer
Internal HDD: Max 5 internal HDD (HDD x 5)
External HDD: Up to 2 expansion bay (up to 4 HDD each)
DVD Writer (Back up): Yes
USB: 3 USB ports
File Format: Backup - AVI, MDB (DVR play back), EXE (Include player)
Password Protection: 1 Admin, 10 Group , 20 User per 1 Group, User can be assigned authority for function
Data Authentication: Watermark
Interface
VGA: Monitor - Analog RGB 800 x 600, 1024 x 768, 1280 x 1024 resolution
HDMI: 480p / 720p / 1080p resolution
Composite:
Main - BNC, 1 Vp-p, 75 ohm
Spot - 1 BNC, 1 Vp-p, 75 ohm, Support multi screen and camera title
Loop Outputs: 8
Audio Inputs: 8 Line in (Built in 4ch, Option : audio extension cable)
Audio Output: 1 Line
Audio Compression: ADPCM
Sampling Rate: 16KHz
Alarm I/O: Terminal 8 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC)
Notification: Remote - Notification via e-mail
Ethernet: 1 RJ-45 10/100/1000 Base-T
Serial Interface: RS-232/RS-485 for PTZ, System keyboard
USB: USB 2.0, 3 ports
eSATA: 2 External SATA ports
Application Support: Mouse, Remote controller
Communication Protocol: Samsung-E, Samsung-T, Pelco-D, Pelco-P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON
PTZ Control: via Coaxial Cable (Samsung CCVC, Coaxitron)
General
Input Voltage: 100 - 240V AC ±10%, 50/60Hz, Auto ranging
Power Consumption: Max. 55W (With 1x HDD) / Max. 65W (With 2x HDD)
Operating Temperature: 0-40°C (32-104°F)
Operating Humidity: 20 - 85%RH
Dimensions (WxHxD): 17.3 x 3.5 x 16.9" (440 x 88 x 430 mm)
Weight: Approx. 16.1 lb (7.5 kg)
Rack Mount: 2 ea. kit
Languages: English, Korean, Spanish, French, German, Italian, Portuguese, Polish, Russian, Turkish, Japanese, Czech, Swedish, Danish, Chinese, Dutch
In The Box
Remote Control
Mouse
Power Cable
Network Viewer Software /User Manual CDhe
User Manual
Remote Control Battery (AAA)
SATA Cable (4EA)
Audio Extension Cable (optional)
HDD Fixing Screw (16EA)
Bracket Fixing Screw(4EA)
Bracket Rack
