T119C Platinum Tools Testador de Cabos VDV MapMaster Tester

Name: T119C Platinum Tools Testador de Cabos VDV MapMaster Tester
Brand: Platinum Tools
SKU: T119C
Price: 1344.00 BRL
Availability: InStock

Visor LCD, Testa Cabos LAN CAT7, CAT6x, CAT5x e Coaxial

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 1.344,00

à vista no Pix ou Boleto

ou R$ 1.413,77 em 1x no cartão (via site)

ou R$ 1.492,32 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.344,00

à vista no Pix ou Boleto

R$ 1.413,77
em 1x no cartão (via site)

R$ 1.492,32 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem antiestática

Garantia:

6 meses direto com a Net Computadores

NCM:

90303990

R$ 1.344,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
6 meses direto com a Net Computadores

NCM: 90303990

Cotação PJ mais de uma unidade

Indicar T119C

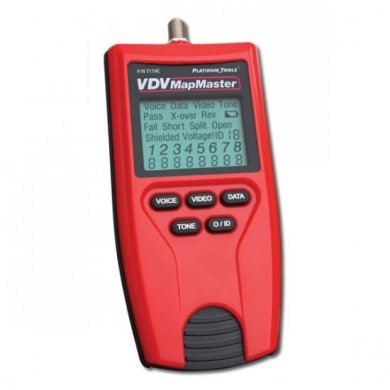

T119C Platinum Tools Testador de Cabos VDV MapMaster Tester
Visor LCD, Testa Cabos LAN CAT7, CAT6x, CAT5x e Coaxial

Condição de T119C: Novo em embalagem antiestática

Garantia de T119C: 6 meses direto com a Net Computadores

The VDV MapMaster combines continuity testing, mapping and tone generator functions into a single unit. Capable of identifying and mapping 19 locations at one time. Whether your jobs are commercial or residential, the versatility of the VDV MapMaster makes it an installers best friend!
Tests Voice (6 wire), Data (8 wire) and video (coax)
Easy to read, extra large 7-segment LCD screen with large icons
Tone generator with selectable tone cadence and selectable pins carrying tone

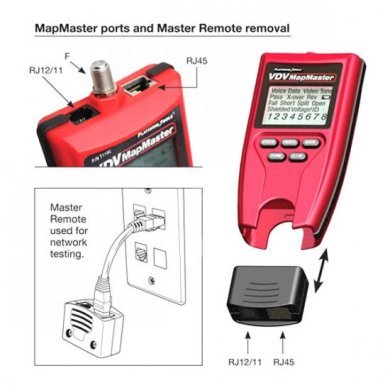

RJ (Voice & Data) master remote stores in bottom of case
Map 19 locations at one time, remotes sold separately
Tests and indicates pins with shorts, opens reversals, miswires and split pairs
Displays ’Pass’ icon for correctly wired T568A/B 8 & 6 pin and crossover/uplink
Low power consumption for long battery life
Auto Power-Off
Made in the USA
Features
• Extra large LCD screen with 7 segments and large icons for easy viewing
• Results are displayed in wire map format with connector pin numbers, so locating wires is a breeze
• Capable of testing shielded cables for high-cost installations
• Compact and lightweight for easy carrying
Specifications
• Dimensions: 6.4" x 2.8" x 1.4" (16.3 x 7.1 x 3.6 cm)
• Weight: 9 oz.
• Operating Temperature: 32° F to 122° F (0°C to 50°C)
• Humidity: 10% to 90% non-condensing
• Max. Voltage:
- Between any two connector pins without damage:
- RJ Jack: 66V DC or 55V AC
- F-Connector: 50V DC or AC
• Battery Life:
- 9V alkaline battery typical
- Standby: 4 years
- Active: 425 hours
• Cable Types: Shielded or Unshielded; CAT 7, CAT 6x, CAT 5e, CAT 5, CAT 4, CAT 3, Coax
• Max. RJ Cable Length: 0 to 1000 ft (305 meters)
• Min. Cable Length Split Pair Detection: 1.5 FT (0.5 meter)

Maiores detalhes de T119C no site do fabricante:
http://www.platinumtools.com/products/t119.php?cat=42
